Product Details:
|
| Name: | Butyl Extruder Machine | Squeeze Pressure: | 10-18MPa |
|---|---|---|---|
| Temperature: | 110~140℃ | Aluminum Spacer Width: | 4-30mm |
| Speed: | 0-47m/min | Diameter Of Butyl Cylinder: | 200mm |
| Air Supply: | 0.4m³/min | Air Pressure: | ≥0.6MPa |
| Total Power: | 380V, 5KW, 50HZ | Dimension: | 2600×680×1100mm(L×W×H） |
| Weight: | 650kg | ||
| High Light: | butyl silicone sealant,double glass machine |
||

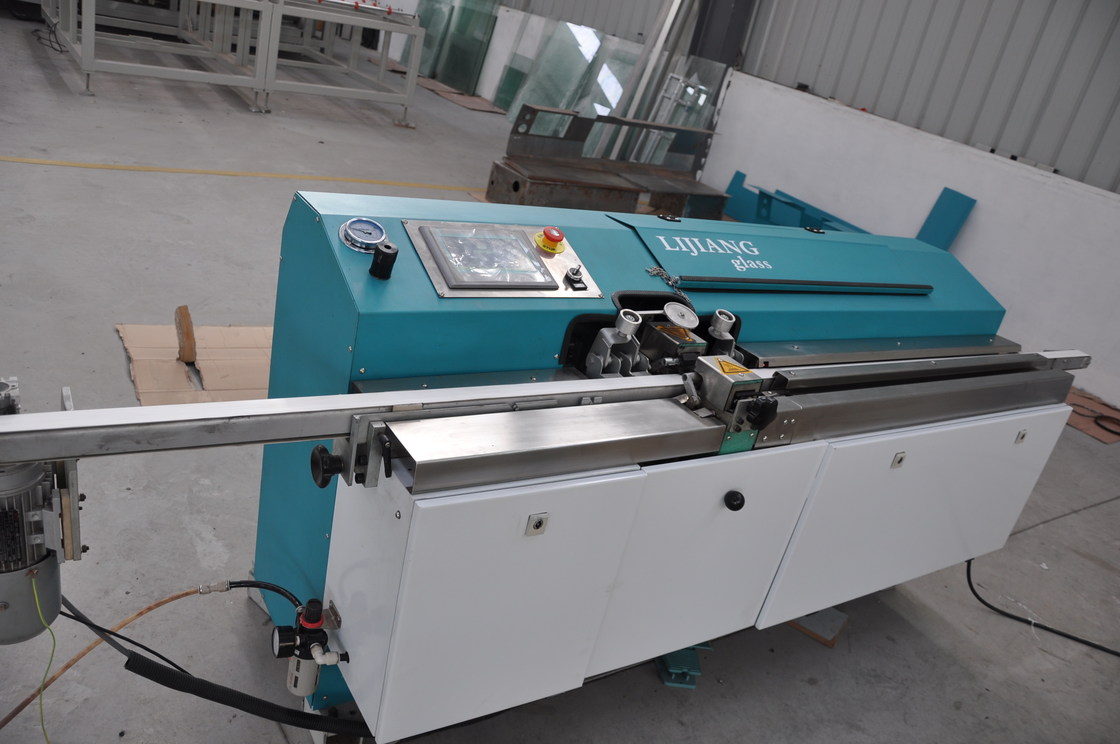

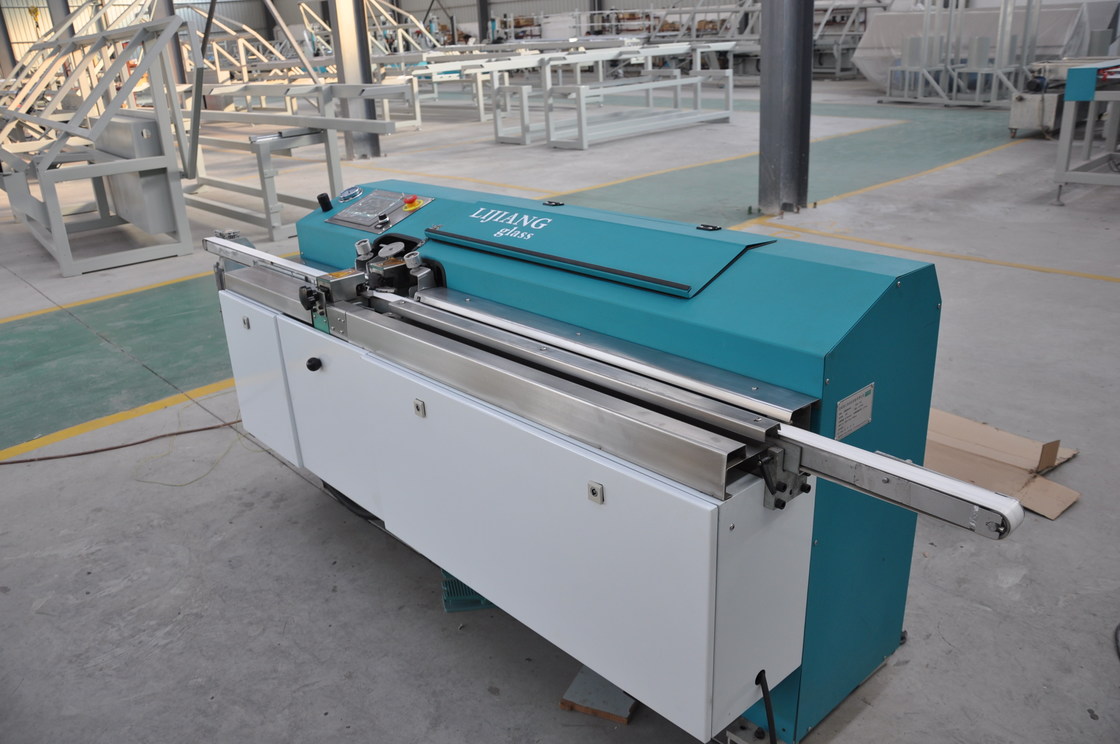

LJTB 01 automatic butyl rubber extruder is used to evenly disperse aluminum gaskets (and other gaskets) and hot melt butyl rubber. The butyl extruder uses a large electrical control panel, which is easier to operate than before. The speed can be adjusted from 0m / min to 47m / min, which is by far the fastest speed in China. Butyl rubber extruder is very popular in energy saving. The extrusion system adopts German pneumatic and hydraulic pressure boosting system to make the extrusion pressure more stable. Butyl rubber extruder has achieved world-class technical level with its complete functions and famous spare parts.
| Squeeze pressure | 10-18MPa |
| Temperature | 110~140℃ |
| Aluminum spacer width | 4-30mm |
| Speed | 0-47m/min |
| Diameter of butyl cylinder | 200mm |
| Air supply | 0.4m³/min |
| Air pressure | ≥0.6MPa |
| Total power | 380V, 5KW, 50HZ |
| Dimension | 2600×680×1100mm(L×W×H) |
| Weight | 650kg |
•PLC control system, touch screen interface
• automatic recognition of the width of the aluminum belt, the rubber mouth can be automatically adjusted
• key components of the hydraulic system use components imported from Germany to ensure uniform plastic filling
• warm up quickly to increase productivity
• with preheating function
• with the function of exhaust and inflation, improve the sealing quality and save time shaping
• fast coating speed, up to 47m/min
• save glue
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Jinan Lijiang Automation Equipment Co., Ltd. (Lijiang Glass Factory) is located in the beautiful spring city-Jinan. It is an enterprise integrating R & D, sales and service of glass processing equipment. Due to the proximity to the Beijing-Shanghai high-speed rail, the transportation is very convenient.
The company is committed to drawing on the experience of famous experts, establishing a research and development center, cooperating with well-known domestic and foreign enterprises, introducing advanced technology, etc., and is committed to building high-grade insulating glass machinery and equipment. Now, our friendly partners include Northern Glass, Xinfuxing, Yaohua, Dalian Huaying, Beijing Guanhua, Shanghai Haojing, Sichuan Lihehua and other well-known enterprises. Since the establishment of the company, our products have been exported to nearly 30 countries and regions in Europe, America, South America, Middle East, Southeast Asia, India and so on. At the same time, the company cooperates with North China Industrial Group, Shandong University and other well-known domestic research institutions to continuously improve the level of technical research. So far, we have independently produced a vertical automatic insulating glass production line with filling gas, a vertical insulating glass sealing robot, an automatic interval bending machine, an automatic dehumidifying filling machine and a new automatic butyl rubber extruder, Its technology and quality have reached the highest level of leadership in China.
With the rapid development of the insulating glass industry, Lijiang looks forward to working with you for a win-win situation and creating a new world together.
1. The whole machine is guaranteed for one year.
2. 24-hour email technical support.
3. User friendly English software, user manual and detailed video / CD.
4. We will provide all the spare parts needed for equipment maintenance.
A professional after-sales service team provides face-to-face training and installation services to customer factories.
