Product Details:
|
| Name: | Automatic Butyl Coating Machine | Gluing Speed: | 2-50m/min |
|---|---|---|---|
| Aluminum Spacer Width: | 6-24mm | Air Pressure: | ≥0.6MPa |
| Power: | 380V 50Hz 7KW | Application: | Insulating Glass |
| Dimension: | 10000*1310*3150 | ||
| High Light: | butyl silicone sealant,double glass machine |
||

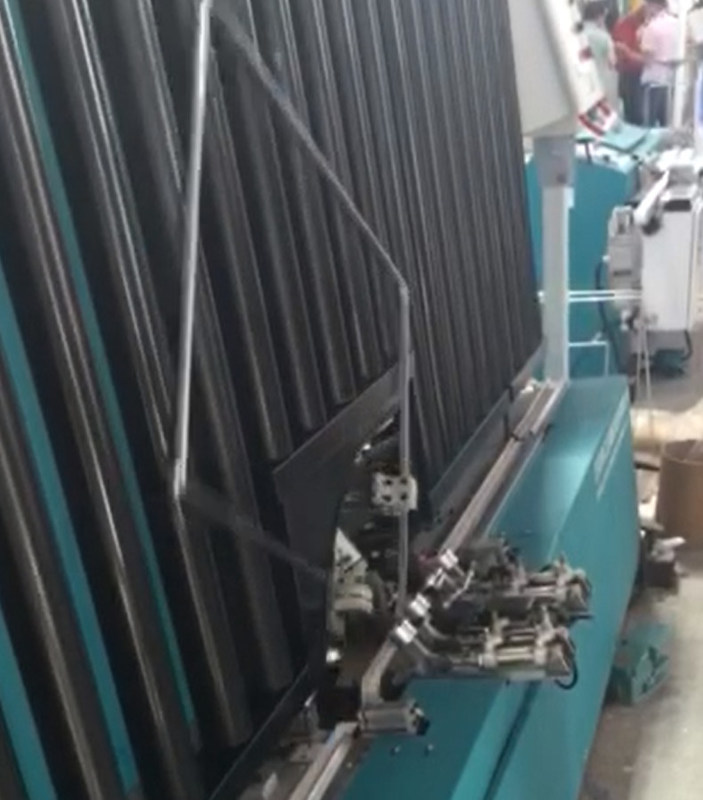

Application of butyl extruder: coating the first layer of sealant butyl adhesive for hollow glass
Function: apply butyl rubber on both sides of the middle space partition
Processing material: butyl rubber
Brand: Lijiang glass
Model:LJTB02
Main feature of butyl coating machine
1.Automatic butyl extruder machine can automatic coating butyl extruder
2.Automatic butyl extruder machine can Smooth convey without scratch and pollution.
3.Glass coating machine has mechanical hand ,Glue stability
4.Butyl coating machine can load two barrels if butyl.
Technical data
| Aluminum spacer width | 6-24mm |
| Gluing Speed | 2-50m/min |
| Air pressure | ≥0.6MPa |
| Total power | 380V, 7KW,50HZ |
| Dimension | 10000×1310×3150mm |
Fully automatic butyl rubber coater can be used together with aluminum spacer conveyor
Aluminum frame transfer machine LJSKJ02
•Spacer frame transport
•Easy operating, simple and flexible
| Power supply | 380V 50Hz |
| Total power | 0.18kw |
| Dimension | 2520*3012*3000mm |
Company introduction
Jinan Lijiang Automation Equipment Co., Ltd. is located in the beautiful Spring
city------Jinan. It is an enterprise which integrated glass processing equipment research and development, sales and service into a whole. As it is close to Beijing-Shanghai high-speed rail, the transportation is very convenient.
The company is committed to building high-end insulating glass machinery and equipment by learning from famous experts, establishing the research and development centers, cooperating with domestic and foreign well-known enterprises, importing advanced technology and so on. So that our company has became an vital domestic and foreign glass processing equipment supplier. Now, our friendly partners include North Glass, Xin Fuxing, Yaohua, Dalian Huaying, Beijing Guanhua, Shanghai Hao Jing, Sichuan Li Hehua and other well-known enterprises. Since the establishment of the company, our products have been exported to Europe, South America, the Middle East, Southeast Asia, nearly 30 countries and regions. At the same time, our company worked with the well-known domestic research institutes, such as the North China Industrial Group, Shandong University and others, to constantly improve the level of technical research. So far, we have independently produced the vertical automatic IG production line with filling gas on line, the vertical IG sealing robot, the new butyl extruder machine, and the new fully automatic butyl extruder machine, its technology and quality have reached the leading level in China.
With the rapid development of insulating glass industry, Lijiang is looking forward to working with you for win-win situation and jointly creating a new world of China!
Quality control of LIJIANG GLASS
FAQ
Q:Is LIJIANG GLASS a factory or a trading company?
A: A factory in Jinan city.
Q: What is the system of LIJIANG’s after sale service?
A: LIJIANG has its own special system for the service, we make a “tree of knowledge”for guiding customer to find the usual problem and the answer when customers meet.
Q: What is the details of the after sale service?
A: Step1: Notice before installation
Step2 : Confirm before installation
Step3: On-site installation
Step4: On-site debugging
Step5: On-site training
Step6: Client sign
Step7: On-line service
Step8: Technical service
More details please search www.lijiang-glass.com
Q: What's the payment term?
A: T/T, L/C and other payment terms could be negotiated.
Q: About this Machine,What’s the guarantee ?
A:1)Our guarantee for 12 months.
2)24 hour’s technical support by email or calling
3)English manual and video tutorial
4)We will provide the consumable parts at an agency price
5)24 hours on line service each day, free technical support.
Q:How about your warranty?
A:Generally, our warranty is one year. Within the warranty period, we can offer technique support, Feedback to you within 24 hours and help you to repair your problem controller freely, even it's not from our factory
Q:Can we visit your factory before order?
A:Yes, we warmly welcome and sincerely invite you or your team to visit our factory, we will help to arrange hotel and pick up you from airport.
Q: What's the delivery term?
A:At most of time, we have stock in the factory. If there is no stock, normally, the delivery time is 15-20 working days after deposit receipt. If you are in urgent need, we can consider making special arrangement for you.
