Product Details:
|
| Name: | Butyl Extruder Machine | Squeeze Pressure: | 10-18MPa |
|---|---|---|---|
| Temperature: | 110~140℃ | Aluminum Spacer Width: | 4-30mm |
| Speed: | 0-47m/min | Diameter Of Butyl Cylinder: | 200mm |
| Air Supply: | 0.4m³/min | Air Pressure: | ≥0.6MPa |
| Total Power: | 380V, 5KW, 50HZ | Dimension: | 2600×680×1100mm(L×W×H） |
| High Light: | butyl silicone sealant,double glass machine |
||

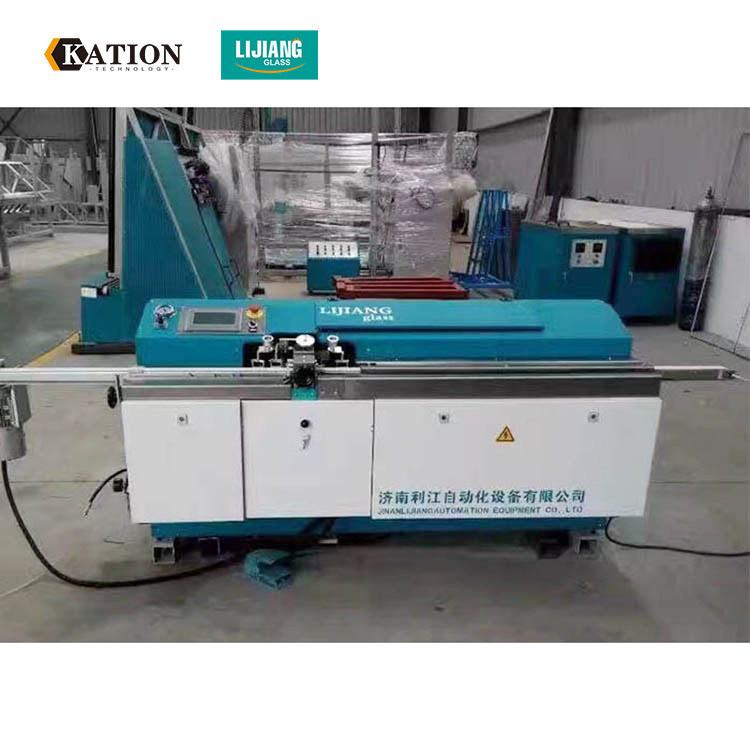

LJTB 01 butyl silicone sealant automatic butyl rubber extruder is used to disperse aluminum gaskets (and other gaskets) evenly with hot melt butyl rubber. The butyl extruder uses a large electrical control panel, which is easier to operate than before. The speed can be adjusted from 0m / min to 47m / min, which is by far the fastest speed in China. Butyl rubber extruder is very popular in energy saving. The extrusion system adopts German pneumatic and hydraulic pressure boosting system to make the extrusion pressure more stable. Butyl rubber extruder has achieved world-class technical level with its complete functions and famous spare parts.
• PLC control system, touch screen interface.
• Automatic recognition of the width of the aluminum strip, the glue nozzle can be automatically adjusted.
• The key part of the hydraulic system uses components imported from Germany to ensure that the plastic is evenly filled.
• Quick warm-up to improve work efficiency.
• With preheating function.
• With exhaust gas inflation function, improve the sealing quality and save plastic time.
• Fast coating speed, up to 47m / min.
• Save glue.
| Squeeze pressure | 10-18MPa |
| Temperature | 110~140℃ |
| Aluminum spacer width | 4-30mm |
| Speed | 0-47m/min |
| Diameter of butyl cylinder | 200mm |
| Air supply | 0.4m³/min |
| Air pressure | ≥0.6MPa |
| Total power | 380V, 5KW, 50HZ |
| Dimension | 2600×680×1100mm(L×W×H) |
| Weight | 650kg |

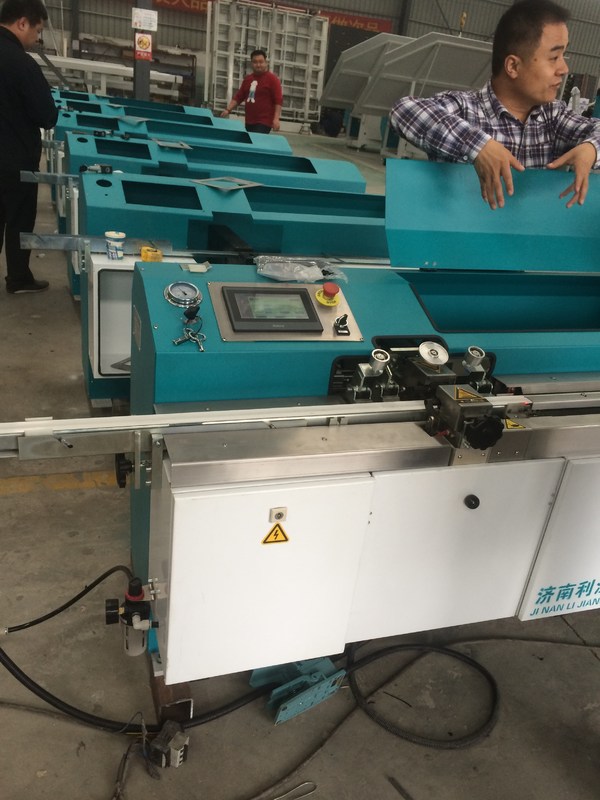

Clear interface, simple operation, smart touch screen, updated program.
the ig machine adopt German Harvey valve, the performance is more stable.
This is an automatic alarm system to remind you to add butyl glue.
The booster system uses German pneumatic cylinders and hydraulic cylinders to strongly control the oil pressure.
hot melt butyl extruder Using guiding wheel to help arc frames coating.
