|Name:||Automatic High Speed Butyl Extruder Machine||Coating Speed:||5-47m/min|
|Aluminum Spacer Width:||6a-27a||Coating Pressure:||10-18mpa|
|Coating Temperature:||110-140 °||Air Pressure:||0.6mpa|
|Total Power:||5.7kw||Machine Size:||2800*700*900mm|
hot melt butyl extruder,
butyl silicone sealant

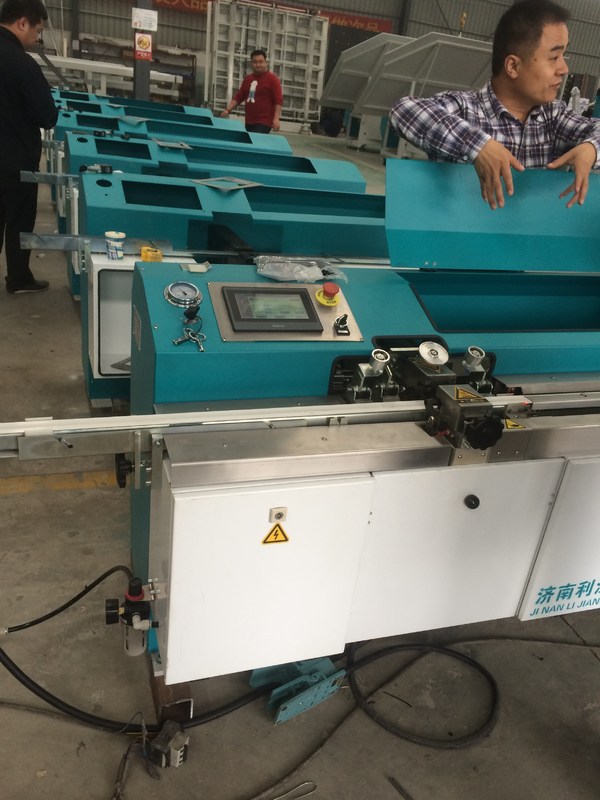

Butyl Extruder Machine Details
LJTB 01 Automatic butyl extruder machine is used for spreading aluminum spacer frames evenly with hot melt butyl.
The butyl extruder uses large electrical control panel which makes the operation more easier than before.
The conveyor of aluminum is controlled by frequency converter.
The speed can be adjusted from 0m/min to 47m/min, it is the fastest speed in China until now.
The butyl extruder is very popular with energy-saving.
Its squeezing system adopts pneumatic and hydraulic supercharging system, which makes the squeezing pressure more stable.
The dispensing cylinder adopts vertical rotary support system, making the refill of butyl more easier.
The height of squeezing head can be adjusted automatically according to different kinds of aluminum spacers.
Finally, the butyl extruder has reached the worldwide technology with the characteristic of complete functions and stable working mode
|Low voltage electrical apparatus||SIEMENS||German|
|Hydraulic and pneumatic supercharging system||MAXIMATOR||German|
|Quick exhaust valve/Vacuum generator||SMC||Japan SMC|
|Aluminum spacer width||4-30mm|
|Diameter of butyl cylinder||200mm|
|Total power||380V, 5KW, 50HZ|
National Glass Expo :Glasstec in Germany , CAM Eurasia Glass in Istanbul, India Zak, India Glasspro, Glasstech Aisa , Glass build in America, Mexico glass expo .Big Five In Dubai, Egpyt.
Domestic glass expo : China glass , (Beijing /shanghai), Guangzhou.
Advantages of Lijiang Products
1, we are producing all DGU machines : Vertical Insulated Glass Produce Line for double glass production line, Auto Sealing Robot for double glass production line, Sealant Spreading Machine for double glass production line, Low-E Glass Washing &Drying Machine for double glass production line, Smart Edge Deleting Machine for double glass production line, Automatic Spacer Bending Machine for double glass production line, Automatic Desiccant Filling Machine for double glass production line, Butyl Extruder Machine for double glass production line, Glass Edge grinding Machine for double glass production line, Spacer Cutting Machine for double glass production line, Sealing gun Freezer for double glass production , Rotated Sealant Spreading Table double glass sealing, Argon Gas Filling Machine double glass , Semi-auto Aluminum Frame, Spacer Transfer Machine for double glass production line, Molecular Sieve Filling Machine double glass production line, Glass Lifting Table double glass production line, Glass Loading /unloading Device for double glass production line, Water Treatment System for double glass production line (Economy), Water Treatment System double glass production line (Advanced), Auto Seaming Machine
JINAN LIJIANG AUTOMATION EQUIPMENT CO.,LTD
Mob/Whatsapp/wechate:+86 130 7535 5217
We have our own china domestic team and oversea service team .
Whole team was included by 15 china engineers who worked in glass machine filed more than 20 years and 5 oversea engineers , two of them from india and others from south America and midle east.
24 hours online service and local engineer available , guarantee customers got timely service and solution .
