Place of Origin:
CHINA
Brand Name:
Lijiang
Certification:
CE UL
Model Number:
LJTB01

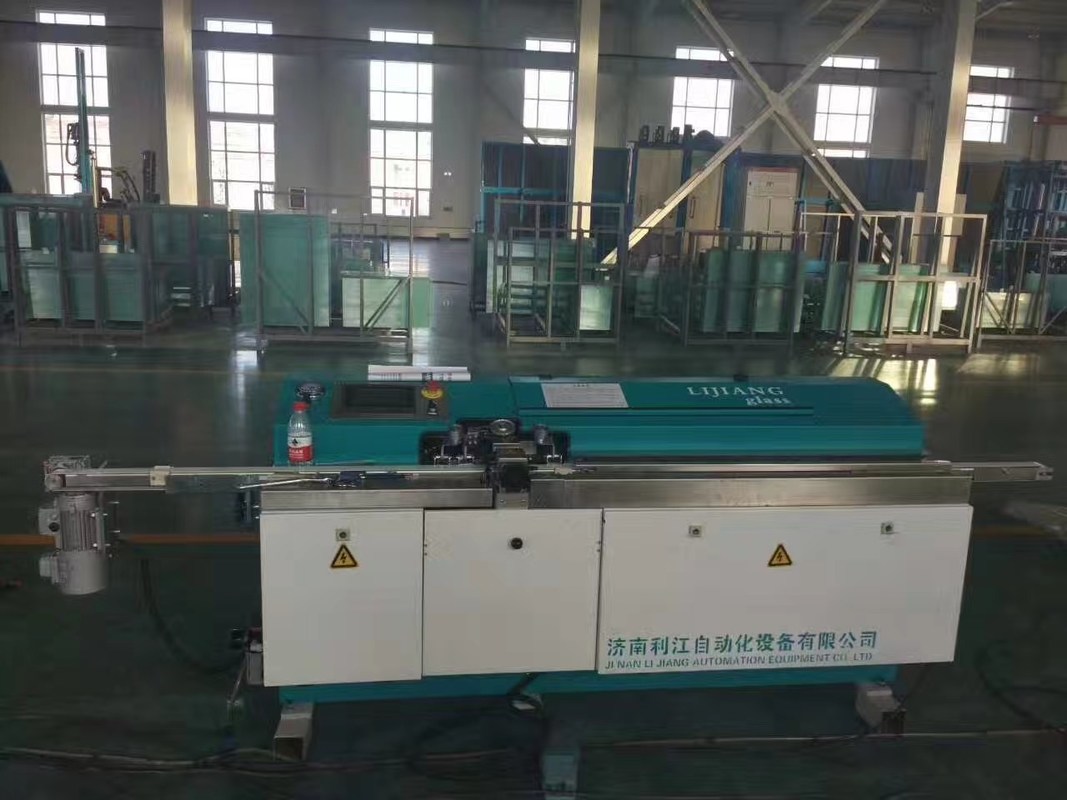

Automatic High speed butyl tape spreading machine double glazing machine
Butyl Extruder Machine Details
LJTB 01 Automatic butyl extruder machine is used for spreading aluminum spacer frames evenly with hot melt butyl.
The butyl extruder uses large electrical control panel which makes the operation more easier than before.
The conveyor of aluminum is controlled by frequency converter.
The speed can be adjusted from 0m/min to 47m/min, it is the fastest speed in China until now.
The butyl extruder is very popular with energy-saving.
Its squeezing system adopts pneumatic and hydraulic supercharging system, which makes the squeezing pressure more stable.
The dispensing cylinder adopts vertical rotary support system, making the refill of butyl more easier.
The height of squeezing head can be adjusted automatically according to different kinds of aluminum spacers.
Finally, the butyl extruder has reached the worldwide technology with the characteristic of complete functions and stable working mode
| Name | Brand | Original |
| PLC | KINCO | China |
| Valve | HAWE | German |
| Low voltage electrical apparatus | SIEMENS | German |
| Hydraulic and pneumatic supercharging system | MAXIMATOR | German |
| Frequency converter | KINCO | China |
| Pneumatic components(cylinder/valve) | ARTAC | Taiwan |
| Quick exhaust valve/Vacuum generator | SMC | Japan SMC |
| Travel light | OMRON | Japan |
| Optical fiber | OMRON | Japan |
| Squeeze pressure | 10-18MPa |
| Temperature | 110~140℃ |
| Aluminum spacer width | 4-30mm |
| Speed | 0-47m/min |
| Diameter of butyl cylinder | 200mm |
| Air supply | 0.4m³/min |
| Air pressure | ≥0.6MPa |
| Total power | 380V, 5KW, 50HZ |
| Dimension | 2600×680×1100mm(L×W×H) |
| Weight | 650kg |
We have our own technician team ,IG line and automatic sealing robot technician team have 6 experts which all have more than 15 glass machine working experience. Aluminum spacer bending and desiccant filling machine team we have 3 technician which have rich experience in double glass machines. Butyl extruder machine and sealing pump and hot melt machine team have 4 experienced technician, all of them are worked in glass machine filed more than 12 years,

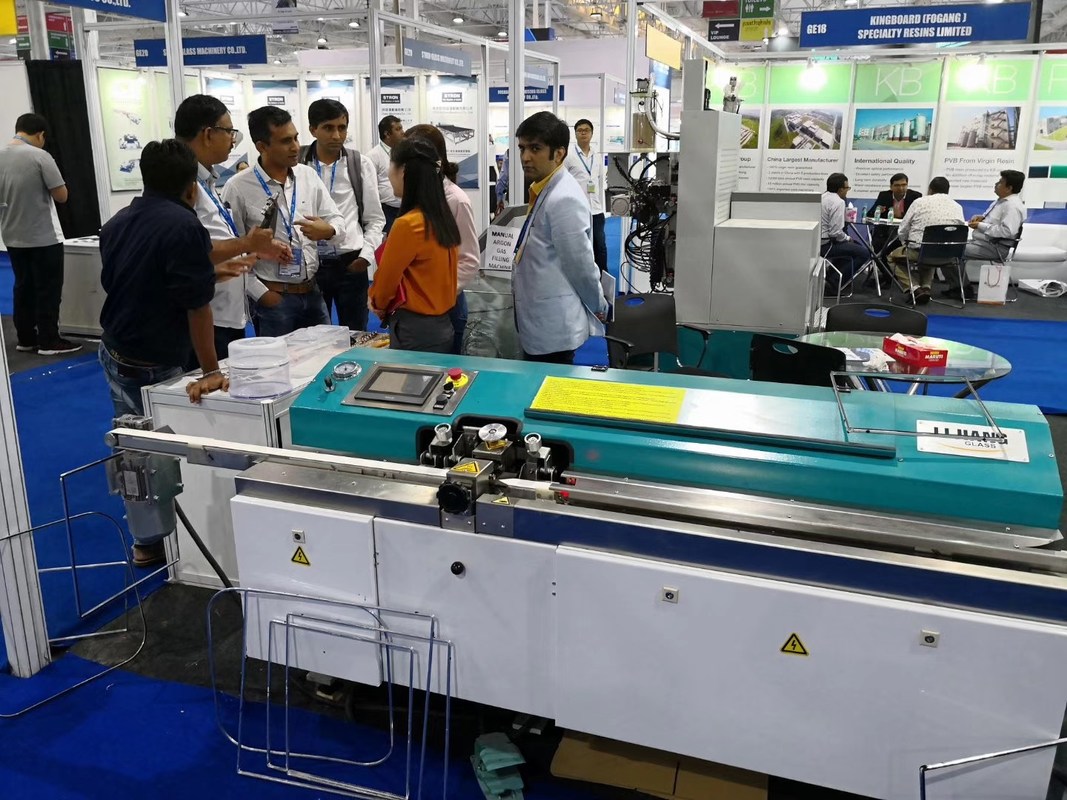

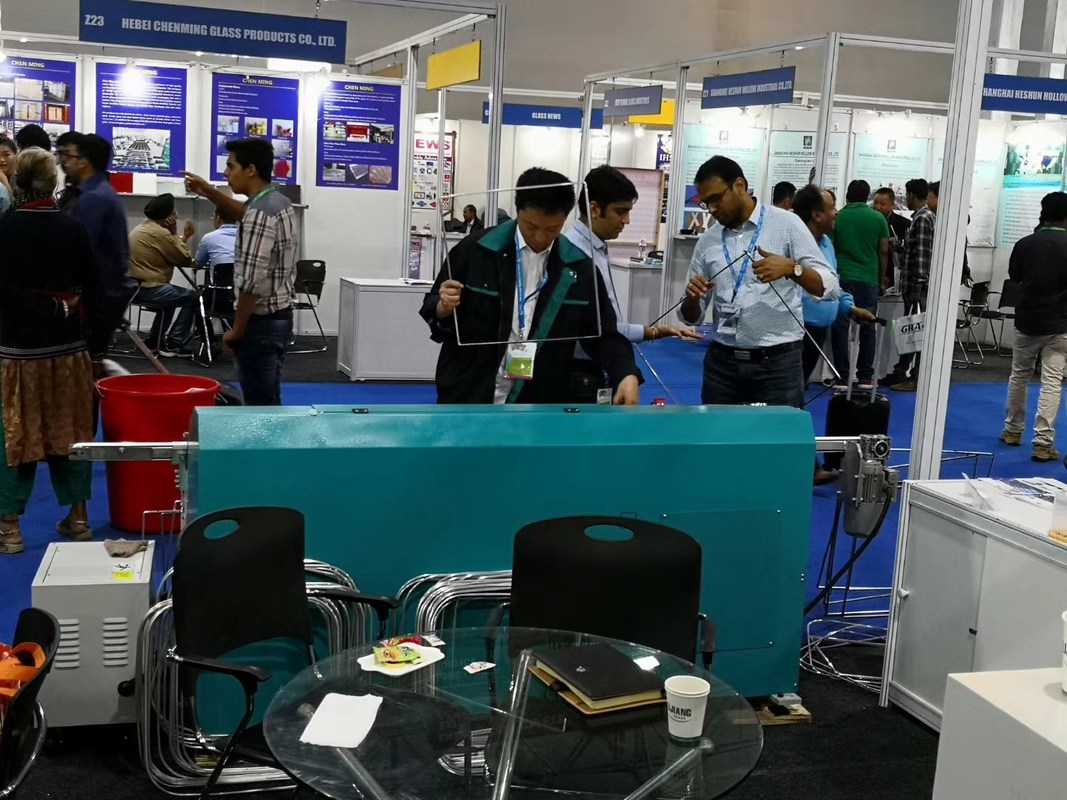

National Glass Expo :Glasstec in Germany , CAM Eurasia Glass in Istanbul, India Zak, India Glasspro, Glasstech Aisa , Glass build in America, Mexico glass expo .Big Five In Dubai, Egpyt.
Domestic glass expo : China glass , (Beijing /shanghai), Guangzhou.
