High Coating Speed Butyl Extruder Machine Energy Efficient 5-47m/Min

High Coating Speed Butyl Extruder Machine Energy Efficient 5-47m/Min
High Coating Speed Butyl Extruder Machine Energy Efficient 5-47m/Min High Coating Speed Butyl Extruder Machine Energy Efficient 5-47m/Min High Coating Speed Butyl Extruder Machine Energy Efficient 5-47m/Min High Coating Speed Butyl Extruder Machine Energy Efficient 5-47m/Min High Coating Speed Butyl Extruder Machine Energy Efficient 5-47m/Min High Coating Speed Butyl Extruder Machine Energy Efficient 5-47m/Min High Coating Speed Butyl Extruder Machine Energy Efficient 5-47m/Min

Large Image :  High Coating Speed Butyl Extruder Machine Energy Efficient 5-47m/Min

Product Details:
Place of Origin: CHINA
Brand Name: Lijiang
Certification: CE UL
Model Number: LJTB01
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: WOODEN BOX OR PLASTIC FILM
Delivery Time: 3days
Payment Terms: L/C, T/T, MoneyGram, Western Union
Supply Ability: 20 sets per month

High Coating Speed Butyl Extruder Machine Energy Efficient 5-47m/Min

Description
Name: Butyl Extruder Machine Coating Speed: 5-47m/min
Aluminum Spacer Width: 6a-27a Coating Pressure: 10-18mpa
Coating Temperature: 110-140 ° Air Pressure: 0.6mpa
Total Power: 5.7kw Machine Size: 2800*700*900mm
High Light:

hot melt butyl extruder

,

butyl silicone sealant

Automatic High speed butyl extruder machine double glazing machine





Butyl Extruder Machine Details

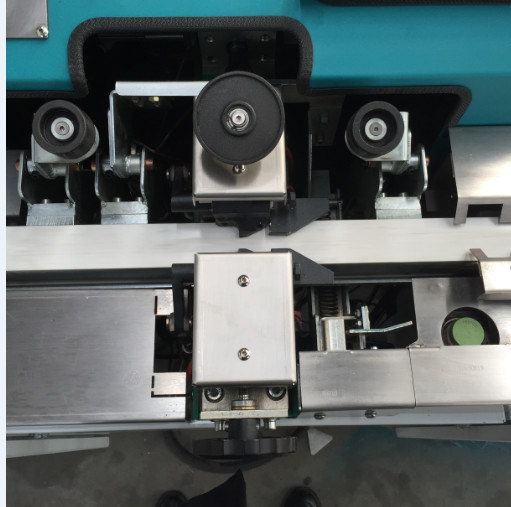

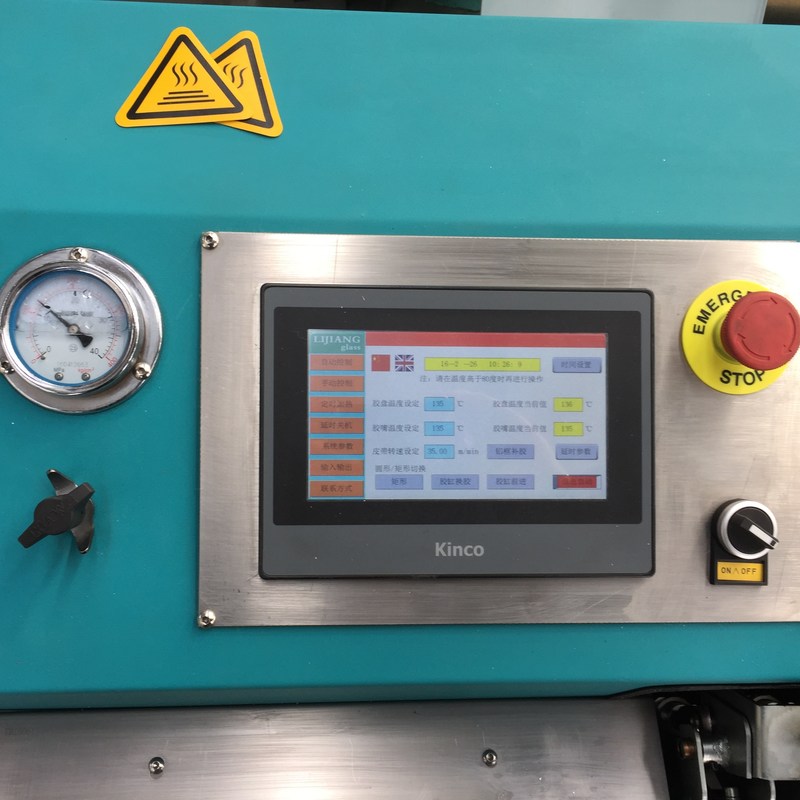

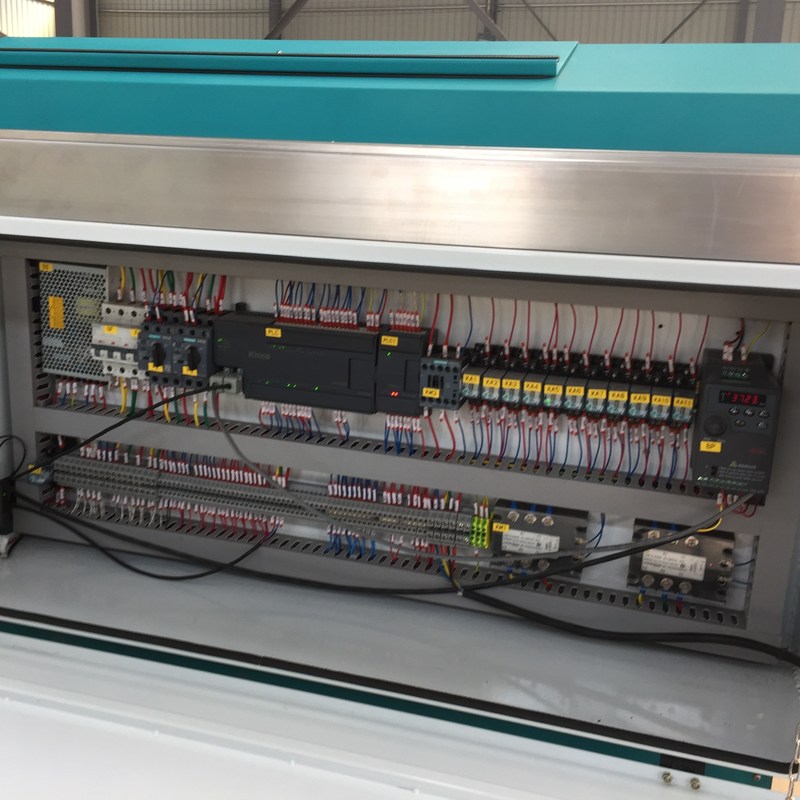

LJTB 01 Automatic butyl extruder machine is used for spreading aluminum spacer frames evenly with hot melt butyl. The butyl extruder uses large electrical control panel which makes the operation more easier than before. The conveyor of aluminum is controlled by frequency converter. The speed can be adjusted from 0m/min to 47m/min, it is the fastest speed in China until now. The butyl extruder is very popular with energy-saving. Its squeezing system adopts pneumatic and hydraulic supercharging system, which makes the squeezing pressure more stable. The dispensing cylinder adopts vertical rotary support system, making the refill of butyl more easier. The height of squeezing head can be adjusted automatically according to different kinds of aluminum spacers. Finally, the butyl extruder has reached the worldwide technology with the characteristic of complete functions and stable working mode



High Coating Speed Butyl Extruder Machine Energy Efficient 5-47m/Min 0



High Coating Speed Butyl Extruder Machine Energy Efficient 5-47m/Min 1



High Coating Speed Butyl Extruder Machine Energy Efficient 5-47m/Min 2

Squeeze pressure 10-18MPa
Temperature 110~140℃
Aluminum spacer width 4-30mm
Speed 0-47m/min
Diameter of butyl cylinder 200mm
Air supply 0.4m³/min
Air pressure ≥0.6MPa
Total power 380V, 5KW, 50HZ
Dimension 2600×680×1100mm(L×W×H)
Weight 650kg

High Coating Speed Butyl Extruder Machine Energy Efficient 5-47m/Min 3

High Coating Speed Butyl Extruder Machine Energy Efficient 5-47m/Min 4

High Coating Speed Butyl Extruder Machine Energy Efficient 5-47m/Min 5

High Coating Speed Butyl Extruder Machine Energy Efficient 5-47m/Min 6

We have our own technician team ,IG line and automatic sealing robot technician team have 6 experts which all have more than 15 glass machine working experience. Aluminum spacer bending and desiccant filling machine team we have 3 technician which have rich experience in double glass machines. Butyl extruder machine and sealing pump and hot melt machine team have 4 experienced technician, all of them are worked in glass machine filed more than 12 years,

High Coating Speed Butyl Extruder Machine Energy Efficient 5-47m/Min 7

High Coating Speed Butyl Extruder Machine Energy Efficient 5-47m/Min 8

National Glass Expo :Glasstec in Germany , CAM Eurasia Glass in Istanbul, India Zak, India Glasspro, Glasstech Aisa , Glass build in America, Mexico glass expo .Big Five In Dubai, Egpyt.

Domestic glass expo : China glass , (Beijing /shanghai), Guangzhou.



High Coating Speed Butyl Extruder Machine Energy Efficient 5-47m/Min 9
