|Spacer Specifications:||6A-27A||Filling Maxim Size:||2500mm*2500mm|
|Filling Minimal Size:||300mm*250mm||Voltage:||220V 50HZ 1KW 415V 440V 480V 60HZ|
|Molecular Sieve Diameter:||0.5-0.9mm 1.0-1.5mm||Color:||Green Can Order By Customers As Requirement|
|Machine Size:||1300mm*1100mm*1600mm 1600mm*1200mm*1600mm*||Condition:||New|
|Weight:||300kg 400kg||Certification:||CE UL ISO9001|
|Application:||Filling The Desiccant Into The Aluminum Spacer As Customers Customer Requair||Warranty:||1year ,2year|
|After Sales Service:||We Have Many Agent And After Sales Team In The World. Service Team 24 Hours On Line||Filling Speed:||12s Per 1m*1m Frame|
|After-sales Service Provided:||Engineers Available To Service Machinery Overseas,Field Installation,Free Spare Parts,commissioning And Training,Video Technical Support||PLC:||SIEMENS|
|Function:||Drilling Holes Function , Desiccant Filling Function ,butyl Coating Function,butyl Heating Function|
automatic filling machine,
glass filling machine

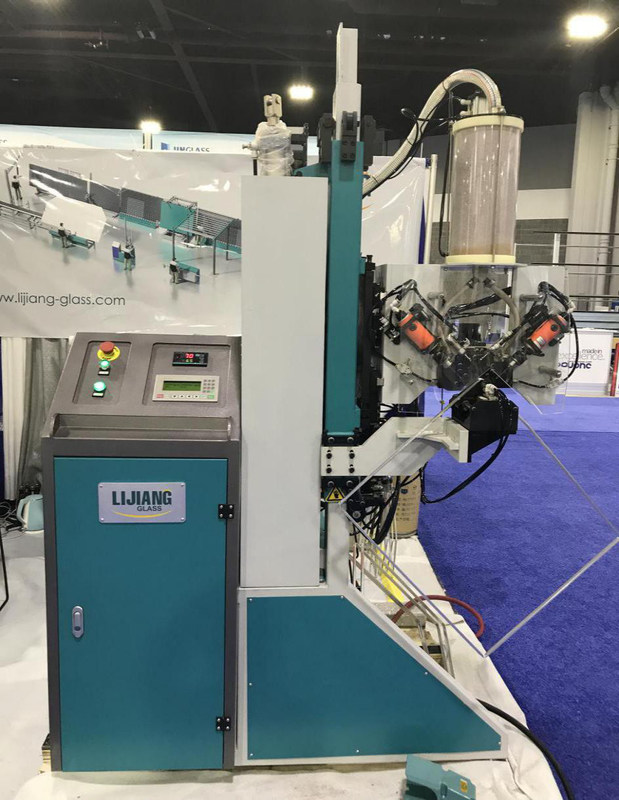

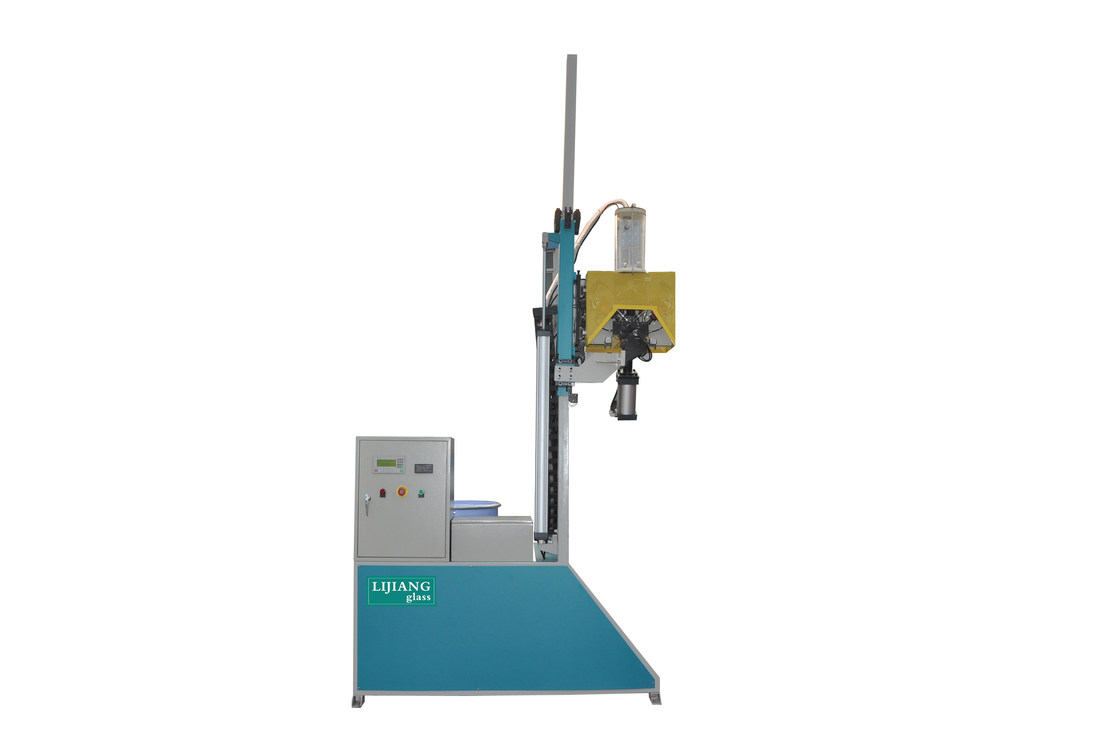

1. The desiccant filling machine the machine height can be adjusted according to the size of spacer frame
2. Desiccant Filling time can be adjusted on the touch screen,
3. Desiccant auto loading and replenish

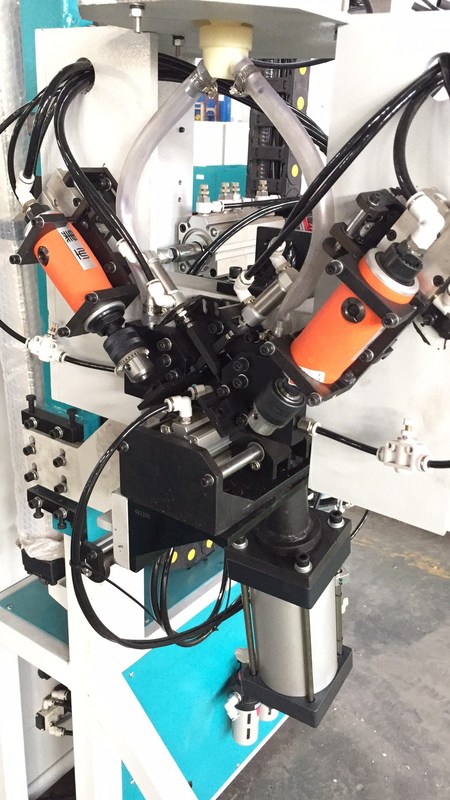

4. Auto drilling the holes on the spacer back side, filling and sealing function
5. Germany Siemens PLC control system
6. Touching screen interface, simple and visible
7. New appearance.
8. Special struture for convenient and safe to change butyl
Main technical parameter
|Filling aluminum frame’s maximum size||2500mm*2500mm|
|Filling aluminum frame’s minimal size||300mm*250mm|
|Article aluminum specifications||5.5-24mm|
|Power supply and power consumption||AC220V 50Hz 1.8KW|
|Molecular sieve diameter needed||0.5-0.9mm|

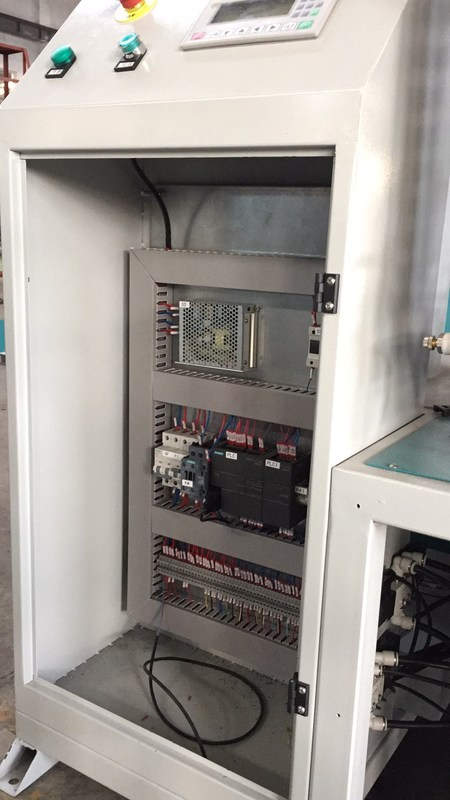

The main electric arts use SIEMENS , The machine height can be ajusted.
The Brand use on the machine:
|PLC||German SIEMENS||Triplet||TAIWAN AIRTAC|
|Low voltage electrical apparatus||German SIEMENS||Solenoid valve||TAIWAN AIRTAC|
|Sensor||Korea AUTONICS||Gas driller||Taiwan BOA|
|Guide||Taiwan TBI||Switch power||Taiwan TEND|
There have the cover before the machine heard to protect the operater.
The width of the spacer can be adjusted.
JINAN LIJAING AOTUMATION EQUIPUMENT CCO,.LTD has experienced team on the Double Glazing machine .
we have 20years experience in this field, we have many after sales team over the word. Like USA ,TURKEY,INDIAN ,SOUTH AMERMIERCA.
they all professional on this machine.
We know quality is very important for the machine. So we pay much attention on the quality control.
All the electric parts we use SIEMENS. FOR good quality.
JINAN LIJIANG QUTOMATIC EQUIPMENT CO.LTD is an enterprise which integrated product development, designing, sale and service into a whole. The company is located in the beautiful spring city, Jinan. Because it is close to Beijing-shanghai high-speed railway line, it’s very convent for transportation.
The company adheres to the “Hi-Q products”. We are striving to create the top-grade products through setting up technology research and development center, inviting some experts to guide. We also cooperate with the domestic well-know enterprises and actively import foreign advanced technology. Now our company are the main supplier of glass deep processing enterprises in China. Our equipment are used by the main domestic famous glass factories, such as NORTH GLASS, XIN FU XING GLASS,YAO HUA GLASS, DALIAN HUAYING GLASS etc. We also have more than 400 customers who use our machines in China. We have got CE certification in 2017. So far our machines has exported to more than 30 countries and regions, just like Europe, South America, Middle East, Southeast Asia and so on.
At the same time, our company cooperates with scientific research institution, which is based on research and development center, imported advanced intelligence. Our company successively cooperates with institution of China North Industries Group and Shandong University in order to develop more new products. Now we have already successfully produced vertical insulating glass production line, vertical insulating glass sealing robot and new butyl extruder machine, which quality has reached the domestic top-grade level.
LIJIANG GLASS are goes into a leading way in the mechanical field with the advanced technology, first-class products, perfect service and good reputation!
