Place of Origin:
CHINA
Brand Name:
LIJIANG
Certification:
CE
Model Number:
LJGZ2020

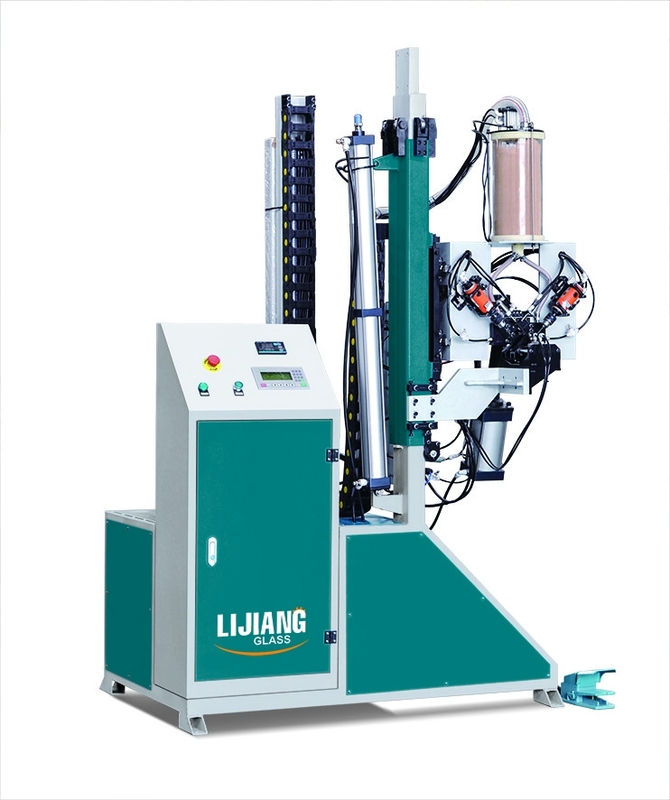

Spacer frame molecular sieve desiccant Filling Machine can automatically achieve actions of drilling holes automatically in the spacer frames, filling desiccant and sealant. Filling sealing machine control system adopts Germany Siemens, so the speed of filling is quick and stable operation ensure the valid closure property of sealant. Automated filling machine improves quality of insulating glass, it’s a necessary equipment in the process of insulating glasses.

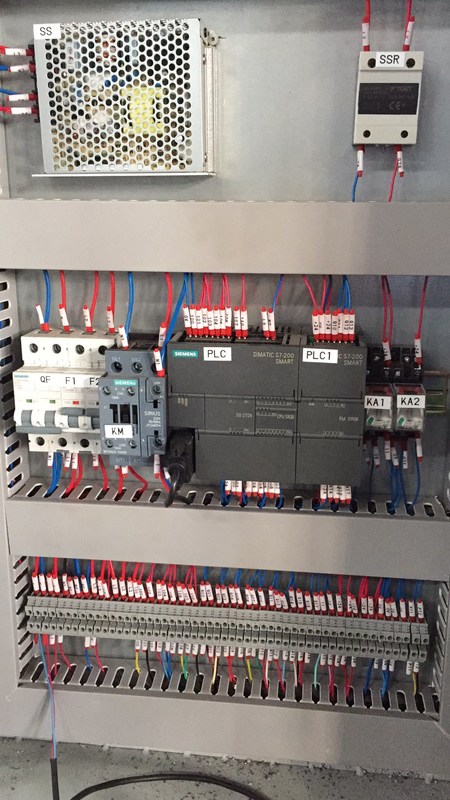

1.Germany Siemens PLC control system
2.Touching screen interface, simple and visibleThe filling height of can be adjusted according to the size of spacer frame.
3.Filling time can be adjusted
4.Auto drilling, filling and sealing function
5.Protection device for machine head
6.Can fill Arc frame
7.Desiccant auto loading and replenish(When the material was used up the sensor will alarming, desiccant will automatically loading )
8.All spare parts have ID Number for offering the convenience in after sales service.
| Name | Brand | Name | Brand |
| PLC | German SIEMENS | Triplet | TAIWAN AIRTAC |
| Lowvoltage electrical apparatus | German SIEMENS | Solenoid valve | TAIWAN AIRTAC |
| Sensor | Korea AUTONICS | Gas driller | Taiwan BOA |
| Guide | Taiwan TBI | Switch power | Taiwan TEND |
| Filling aluminum frame’s maximum size | 2000mm*2000mm |
| Filling aluminum frame’s minimal size | 300mm*250mm |
| Article aluminum specifications | 5.5-24mm |
| Air source | ≥0.65MPa |
| Power supply and power consumption | AC220V 50Hz 1.8KW |
| Molecular sieve diameter needed | 0.5-0.9mm |
| Dimension | 1300mm*1100mm*3650mm |
