Product Details:
|
| Name: | Automatic Butyl Extruder Machine | Aluminum Spacer Width: | 6-24mm |
|---|---|---|---|
| Air Pressure: | ≥0.6MPa | Gluing Speed: | 2-50m/min |
| Power: | 380V 50Hz 7KW | Application: | Insulating Glass |
| High Light: | hot melt butyl extruder,butyl silicone sealant |
||

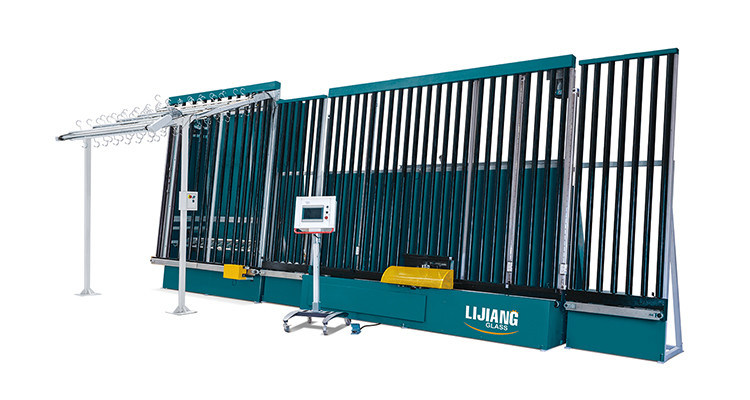

High-quality Automatic Butyl Extruder Machine for insulating glass
Automatic butyl extruder spreading machine can automatic spread butyl extruder ,feature is that it can automatic spreading circular beadnof bendedn frame ,in addition,aim to big frame,it has mechanical hand to support and can load two barrels if butyl.
Automatic butyl extruder spreading machine can Automatically repair glass comers with beautiful surface.
Automatic butyl extruder spreading machine can Smooth convey without scratch and pollution.
Single function partsare equipped with manual functions,easy adjustment.
Automatic butyl extruder spreading machine Can coating more than 8 kinds of shaped glass,include Semicircle,Trapezoidal,Parallelofram,Circular,Polygon,etc.
Automatic butyl extruder spreading machine can Seal stepped glass fully at once.
Frequency Control Hot Melt Butyl Extruder , Double Glazing Glass Machine
technical data
| Aluminum spacer width | 6-24mm |
| Gluing Speed | 2-50m/min |
| Air pressure | ≥0.6MPa |
| Total power | 380V, 7KW,50HZ |
| Dimension | 10000×1310×3150mm |
