Product Details:
|
NAME: | Automaitic Butyl Extruder Machine | Coating Speed: | 5-47m/min |
---|---|---|---|
Aluminum Spacer Width: | 6A-27A | Diameter Of Butyl Cylinder: | 200mm |
Feature: | Powerful | Application: | Insulting Production Line |
Highlight: | hot melt butyl extruder,butyl silicone sealant |

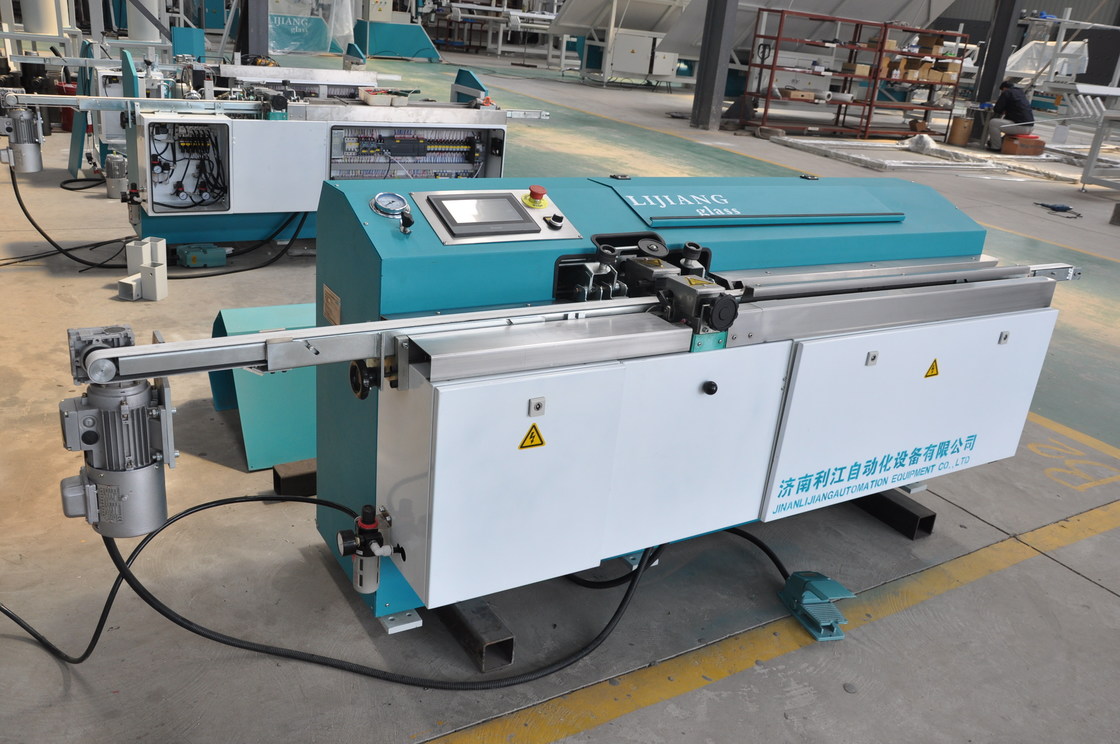

High quality Butyl Extruder Machine For insulting production line
Application
The type of LJTB01 butyl extruder machine is used for spreading aluminum spacer frames evenly with hot melt butyl. This equipment use large electrical control panel which makes the operation more easier. The conveyor of aluminum is controlled by frequency converter, and the speed can be adjusted from 0m/min to 47m/min, which has the fastest speed in China.
• PLC control system, touch screen interface
• Automatically identify the width of aluminum bar, the glue nuzzle can be automatic adjust
• The critical part of the hydraulic system using German imports of components to ensure that the plastic evenly full
• Fast preheat, improve work efficiency
• with preheating function
• With exhaust inflatable function, improve the quality of sealing and save time for plastic
• Quickly coating speed,can up to 47m/min
• Saving the amount of glue
It is very popular with energy-saving. Its squeezing system adopts pneumatic and hydraulic supercharging system, which makes the squeezing pressure more stable. The dispensing cylinder uses vertical rotary support system and it makes the refill of butyl easier. It can prolong the life of squeezing system and set the heating time in 24 hours with electricity and air pressure. The distance of squeezing head can be adjusted automatically according to different aluminum spacer. The machine has reached the worldwide technology with the characteristic of complete function and stable working mode.
² Technical Data
Squeeze pressure | 10-18MPa |
Temperature | 110~140℃ |
Aluminum spacer width | 4-30mm |
Speed | 0-47m/min |
Diameter of butyl cylinder | 200mm |
Air supply | 0.4m³/min |
Air pressure | ≥0.6MPa |
Total power | 380V, 5KW, 50HZ |
Dimension | 2600×680×1100mm(L×W×H) |
Weight | 650kg |
