Product Details:
|
Name: | Desiccant Filler | Interface: | Touch Screen Interface |
---|---|---|---|
Filling Aluminum Frame’s Minimal Size: | 300mm*250mm | Article Aluminum Specifications: | 5.5-24mm |
Air Source: | ≥0.65MPa | Other Name: | Glass Filling Machine |
Highlight: | desiccant filler,automatic filling machine |

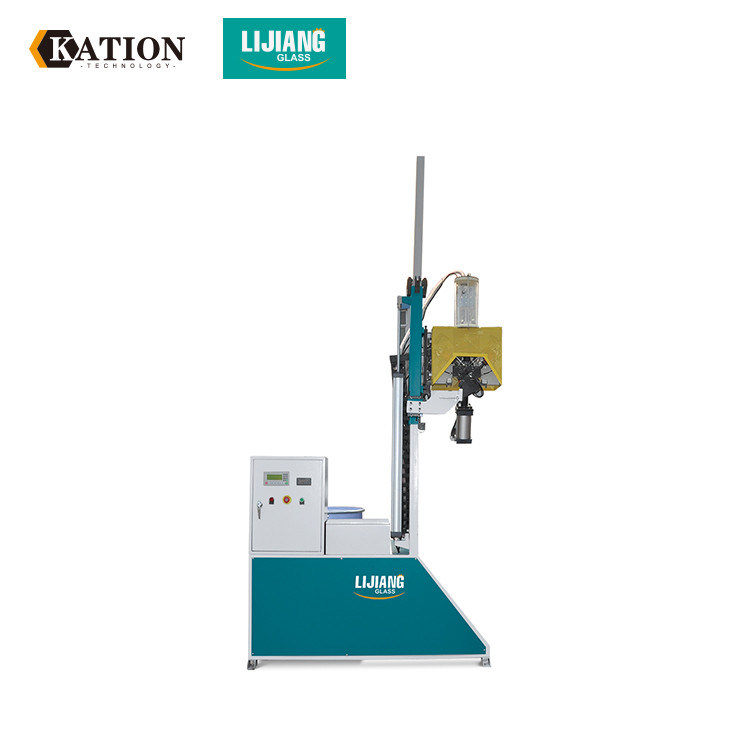

Touch Screen Interface Desiccant Filler / Stable Glass Filling Machine
Desiccant Filler Main feature
Germany Siemens PLC control system
Touching screen interface, simple and visible
Fill for bending frame and connected frame
Auto desiccant loading function
Filling time can be adjusted
Auto drilling, filling and sealing function
Directly use big package desiccant, save time for desiccant refill, increase efficiency
Protect cover for machine head
Distinctive desiccant recycling device
Adopt vacuum pump loading device
Desiccant Filler technical parameter
Filling aluminum frame’s maximum size | 2000mm*2000mm |
Filling aluminum frame’s minimal size | 300mm*250mm |
Article aluminum specifications | 5.5-24mm |
Air source | ≥0.65MPa |
Power supply and power consumption | AC220V 50Hz 1.8KW |
Molecular sieve diameter needed | 0.5-0.9mm |
Dimension | 1300mm*1100mm*3650mm |
Desiccant Filler APPLICATION
Desiccant Filling Machine can automatically achieve actions of drilling holes automatically in the spacer frames, filling desiccant and sealant. Desiccant Filling Machine control system adopts Germany Siemens, so the speed of filling is quick and stable operation ensure the valid closure property of sealant. Desiccant Filling Machine improves quality of insulating glass, it’s a necessary equipment in the process of insulating glasses.
Desiccant Filler Details
