Automatic Butyl Extruder Machine With High Speed 47m/Min CE Certification

Automatic Butyl Extruder Machine With High Speed 47m/Min CE Certification
Automatic Butyl Extruder Machine With High Speed 47m/Min CE Certification Automatic Butyl Extruder Machine With High Speed 47m/Min CE Certification Automatic Butyl Extruder Machine With High Speed 47m/Min CE Certification

Large Image :  Automatic Butyl Extruder Machine With High Speed 47m/Min CE Certification

Product Details:
Place of Origin: China
Brand Name: LIJIANG
Certification: CE
Model Number: LJTB01
Payment & Shipping Terms:
Minimum Order Quantity: negotiation
Price: negotiation
Packaging Details: Standard Packing
Delivery Time: 30
Payment Terms: L/C, T/T
Supply Ability: 500 sets per month

Automatic Butyl Extruder Machine With High Speed 47m/Min CE Certification

Description
Name: Butyl Extruder Machine Coating Speed: 47m/min
Aluminum Spacer Size: 4-30mm Certification: CE
High Light:

hot melt butyl extruder

,

butyl silicone sealant

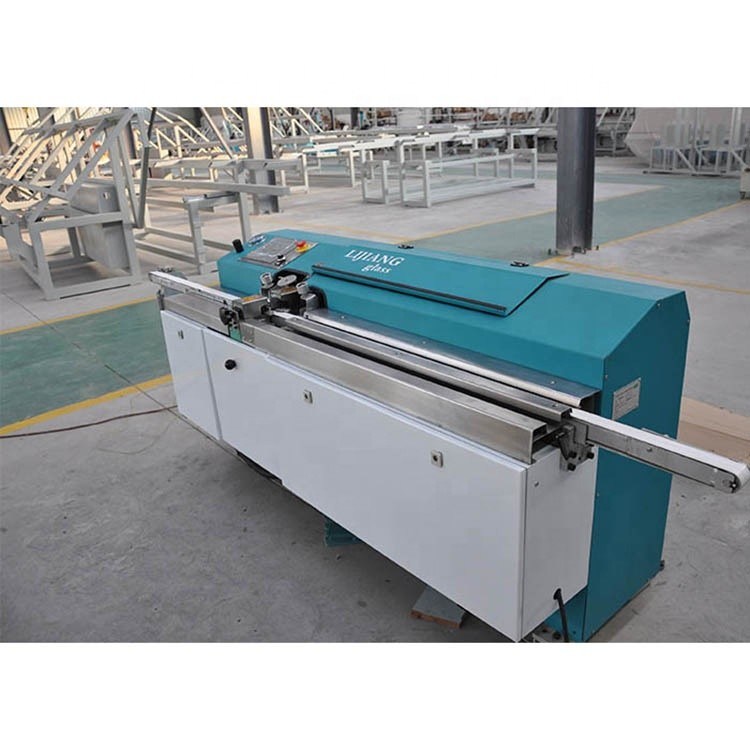

LJTB 01 Automatic butyl extruder machine is used for spreading aluminum spacer frames evenly with hot melt butyl. The butyl extruder uses large electrical control panel which makes the operation more easier than before. The conveyor of aluminum is controlled by frequency converter. The speed can be adjusted from 0m/min to 47m/min, it is the fastest speed in China until now. The butyl extruder is very popular with energy-saving. Its squeezing system adopts pneumatic and hydraulic supercharging system, which makes the squeezing pressure more stable. The dispensing cylinder adopts vertical rotary support system, making the refill of butyl more easier. The height of squeezing head can be adjusted automatically according to different kinds of aluminum spacers. Finally, the butyl extruder has reached the worldwide technology with the characteristic of complete functions and stable working mode.

Name
Brand
Origin
PLC
KINCO
China
Low voltage electrical apparatus
SIEMENS
Germany
Touch screen
KINCO
China
Frequency converter
KINCO
China
Valve
HAWE
Germany
Pneumatic components
ARTAC
Taiwan
Quick exhaust valve
SMC
Japan
Travel light
OMRON
Japan
Optical fiber
OMRON
Japan
Hydraulic and pneumatic supercharging system
MAXIMATOR
Germany

Main Features


1.PLC control system, touch screen interface
2.Automatically adjust the amount of glue according to the speed change
3.Automatic identifying the width of aluminum bar, the glue mouth can be automatic adjust
4.The critical part of the hydraulic system using German imports of components to ensure that the plastic evenly full

5.Fast preheat, improve work efficiency
6.with preheating function
7.Saving the amount of glue
8.Max size of spacer up to 30mm, more large size can be optional
Main advantages:
1.Quickly coating speed,can up to 47m/min, save about 40% butyl glue then others
2. Glue cylinder stands upside,easy to change glue
3. With exhaust / inflatable function, improve the quality of sealing and save working time
4. Apply to shaped frames, rectangle, circle and so on

Other services:
1. Provide the appropriate butyl sealant (8.2g/m)
2. Match your production needs perfectly
Detailed Image
Automatic Butyl Extruder Machine With High Speed 47m/Min CE Certification 0
Automatic Butyl Extruder Machine With High Speed 47m/Min CE Certification 1
Automatic Butyl Extruder Machine With High Speed 47m/Min CE Certification 2

KINCO Touch Screen

Clear interface,
Simple operation,
Smart touch screen,
Updated programming.

Germany Harvey Valve

Adopt Germany’s Harvey valve, more stable performance.

Germany Maximator Cylinder

The supercharging system adopts famous pneumatic and hydraulic cylinder, control the pressure of outlet oil strongly.

Automatic Butyl Extruder Machine With High Speed 47m/Min CE Certification 3
Automatic Butyl Extruder Machine With High Speed 47m/Min CE Certification 4
Automatic Butyl Extruder Machine With High Speed 47m/Min CE Certification 5

Germany Siemens spares

Adopt Siemens brand, extending working life, stable performance.

Upright Glue Cylinder

Adopt the special structure, easy to change butyl.

Unique Guiding Wheel

Automatically measuring the width of frame, use guiding wheel to help arc frames coating.

Automatic Butyl Extruder Machine With High Speed 47m/Min CE Certification 6
Automatic Butyl Extruder Machine With High Speed 47m/Min CE Certification 7
Automatic Butyl Extruder Machine With High Speed 47m/Min CE Certification 8

Teflon Belt

Using non-adhesive belt, keep quickly coating speed, saving a lot butyl.

Japanese SMC fast-release valve

Adopt special structure and SMC fast-release valve, keep two glue nuzzles coating simutaneously.

Providing butyl

In order to help customers to find the good butyl with nice price, our company cooperate with one butyl company with its nice price and good quality.

Certifications
Automatic Butyl Extruder Machine With High Speed 47m/Min CE Certification 9
Automatic Butyl Extruder Machine With High Speed 47m/Min CE Certification 10
Automatic Butyl Extruder Machine With High Speed 47m/Min CE Certification 11
Automatic Butyl Extruder Machine With High Speed 47m/Min CE Certification 12
Factory Workshop
Automatic Butyl Extruder Machine With High Speed 47m/Min CE Certification 13
Automatic Butyl Extruder Machine With High Speed 47m/Min CE Certification 14
Automatic Butyl Extruder Machine With High Speed 47m/Min CE Certification 15
Automatic Butyl Extruder Machine With High Speed 47m/Min CE Certification 16
Exhibition Show
Automatic Butyl Extruder Machine With High Speed 47m/Min CE Certification 17

Since 2008, LIJIANG GLASS has joined many Glass expos, such as in China, American, Germany, American, India, Turkey, Bubai, Italy and so on. Successfully displaying IG units products to customers all over the world.

Our Service

After-sales service

*Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.
* We are always online service you when your machine meets some problems.
Packing & Delivery
Automatic Butyl Extruder Machine With High Speed 47m/Min CE Certification 18
Packaging
Wooden box packing
When transfer to other countries in all over the world, the machine will be packed by wooden box.



Packaging Details
The normal package is wooden box. If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
