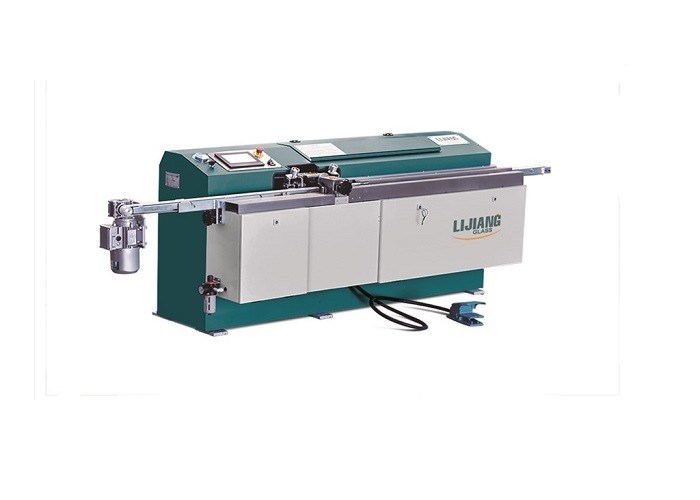

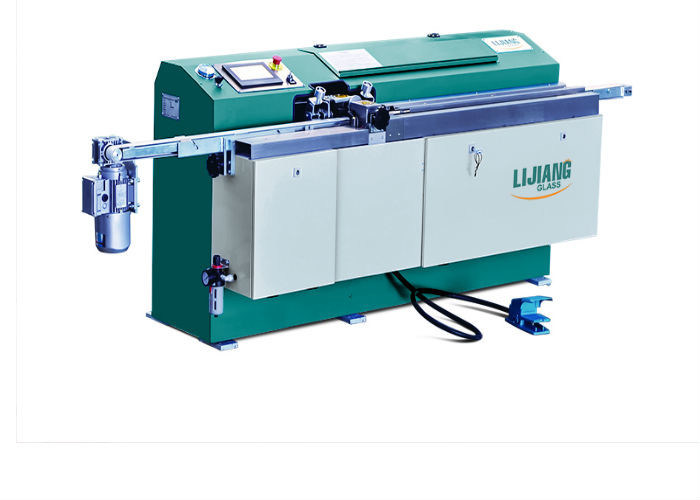

Ig Butyl Extruder Machine , Hot Melt Butyl Machine For Aluminum Bar LJTB 01

Ig Butyl Extruder Machine , Hot Melt Butyl Machine For Aluminum Bar LJTB 01

hot melt butyl extruder

butyl silicone sealant

Place of Origin:

Jinan-China

Brand Name:

Lijiang-Glass

Certification:

CE

Model Number:

LJTB 01

Contact Us
Request A Quote
Ig Butyl Extruder Machine , Hot Melt Butyl Machine For Aluminum Bar LJTB 01 Ig Butyl Extruder Machine , Hot Melt Butyl Machine For Aluminum Bar LJTB 01
Product Details
Squeeze Pressure:
10-18MPa
Temperayure:
110~140 ℃
Aluminum Spacer Width:
6A-27A
Speed:
5-47m/min
Highlight:

hot melt butyl extruder

,

butyl silicone sealant

Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
Negotiable
Packaging Details
seaworthy passage
Delivery Time
10-15 days
Supply Ability
30 sets per year
RELATED PRODUCTS
Good price Hot Melt Extruder Butyl Rubber Sealing Coating Machine online

Hot Melt Extruder Butyl Rubber Sealing Coating Machine

Get Best Price
Good price Insulated Glass Rubber Butyl Extruder Machine Glue Coating online

Insulated Glass Rubber Butyl Extruder Machine Glue Coating

Get Best Price
Good price Anti Sticking Conveyor Belt Butyl Rubber Coating Machine Automatic Distance Measurement online Video

Anti Sticking Conveyor Belt Butyl Rubber Coating Machine Automatic Distance Measurement

Get Best Price
Good price 47m/Min Butyl Extruder Machine Double Glazing Glass Making Machine online

47m/Min Butyl Extruder Machine Double Glazing Glass Making Machine

Get Best Price
CONTACT US
Contact Now
Product Description

Butyl extruder machine LJTB 01



Main feature

  • PLC control system, touch screen interface
  • Automatically identify the width of aluminum bar, the glue nuzzle can be automatic adjust
  • The critical part of the hydraulic system using German imports of components to ensure that the plastic evenly full
  • Fast preheat, improve work efficiency
  • with preheating function
  • With exhaust inflatable function, improve the quality of sealing and save time for plastic
  • Quickly coating speed,can up to 47m/min
  • Saving the amount of glue

Technical data



Squeeze pressure 10-18MPa
Temperature 110~140℃
Aluminum spacer width 6A - 27A
Speed 5-47m/min
Diameter of butyl cylinder 200mm
Air supply 0.4m³/min
Air pressure ≥0.6MPa
Total power 380V, 5.7KW,50HZ
Dimension 2800×700×900mm(L×W×H)
weight 650kg





Electrical parameters



Name Original Brand
PLC China KINCO
Valve German HAWE
Low voltage electrical apparatus German SIEMENS
Hydraulic and pneumatic supercharging system German MAXIMATOR
Frequency converter China KINCO
Pneumatic components Taiwan ARTAC
Quick exhaust valve/Vacuum generator Japan SMC SMC
Travel light Japan OMRON
Optical fiber Japan OMRON
