Place of Origin:
JINAN, CHINA
Brand Name:
LIJIANG GLASS
Certification:
CE
Model Number:
LJTB01

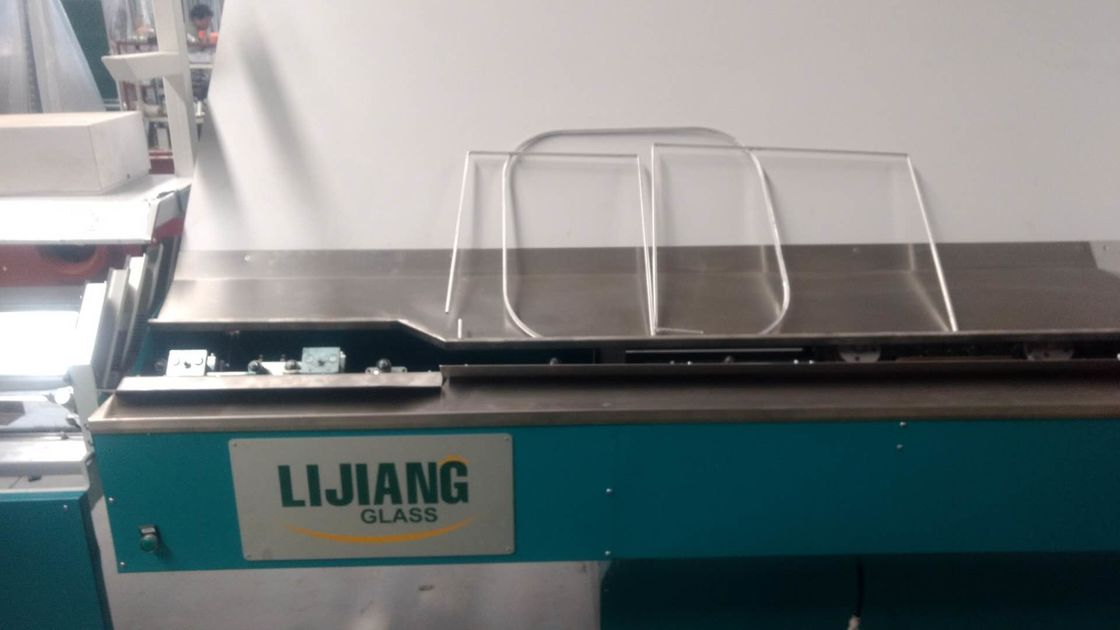

CE Automatic Butyl Machine With High Speed , Hot Melt Butyl Extruder Equipment
Aotomatic Bulyl Extruder Machine with high quolity
Application
PLC control system,touch screen interface
Automatically adjust the amount of glue according to different speeds
Automatically identify the width of aluminum bar,accordingly glue nuzzle can adjust automatically.
Hydraulic systerm uses German components to ensurethat the glue is even and full
Fast preheat,improve work efficiency
with preheating function
With exhaust and inflatable function,improve coating quality and asve time for feeding glue
Quickly coating speed,can up to 47m/min
Squeeze pressure:10-18MPa
Temperature:110-140℃
Aluminumspacerwidth:6A-27A
Speed:5-47m/min
Diameter of butyl cylinder:200mm
Air supply:0.4㎡/min
Air pressure:＞0.6Mpa
Total power:380V,5.7KW,50HZ
Dimension:2800*700*900mm
Weight:650kg
