Product Details:
|
Color: | Customers' Request | Coating Speed: | 47m/min |
---|---|---|---|
Aluminum Spacer Size: | 4-30mm | Air Source: | ≥0.6MPa |
Supply Sealant Pressure: | <100kg/cm2 | Model: | Automatic Machine |
Automatic Machine: | Insulating Glass Processing | Function: | Coating Butyl |
Power: | 5KW | Voltage: | 380V 50HZ |
Highlight: | butyl silicone sealant,double glass machine |
Butyl Extruder Machine For Insulated Glass Machine With Non-stick Coating For Shaped Frame With Fast Coating Speed
Application
Butyl Extruder Machine For Insulated Glass Machine With Non-stick Coating For Shaped Frame With Fast Coating Speed is used to apply hot melt butyl to the aluminum spacers of insulating glass evenly. The use of large electrical control panel makes the operation easier. The conveyor of aluminum is controlled by frequency converter, and the speed can be adjusted from 0m/min to 25m/min. The squeezing system adopts pneumatic and hydraulic supercharging system, which makes the squeezing pressure more stable. The Butyl Extruder Machine For Insulated Glass Machine With Non-stick Coating For Shaped Frame With Fast Coating Speed is energy-saving. The dispensing cylinder uses rotate supporting system and this makes the refill of butyl easier. The system can prolong the life of squeezing system and set the heating time in 24 hours with electricity and air pressure. The distance of squeezing head can be adjusted automatically according to different aluminum spacer. The Butyl Extruder Machine For Insulated Glass Machine With Non-stick Coating For Shaped Frame With Fast Coating Speed has reached the worldwide technology with the characteristic of complete function and stable working mode.
Main features
1. Main device are famous brand products imported from abroad.
2. Butyl spreading is well-proportioned and the linearity is good.
3. Adopts the unique hermetic piston device.
4. Reasonable butyl spreading system and low pressure.
5. Advanced device guarantees the best spreading effect on the arc aluminum frame.
6. set time to pre-heat the sealant
7. lengthening sealant cylinder
Main Parameter
Squeeze pressure | 10-18MPa |
Temperature | 110~140℃ |
Aluminum spacer width | 4-30mm |
Speed | 0-47m/min |
Diameter of butyl cylinder | 200mm |
Air supply | 0.4m³/min |
Air pressure | ≥0.6MPa |
Total power | 380V, 5KW, 50HZ |
Dimension | 2600×680×1100mm(L×W×H) |
Weight | 650kg |

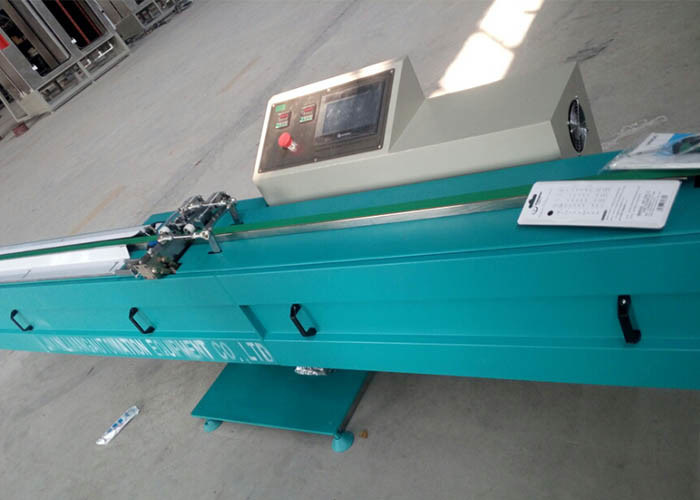

Machine details
