Product Details:
|
| Color: | Customers' Request | Coating Speed: | 47m/min |
|---|---|---|---|
| Aluminum Spacer Size: | 4-30mm | Air Source: | ≥0.6MPa |
| Supply Sealant Pressure: | <100kg/cm2 | Model: | Automatic |
| Automatic Machine: | Insulating Glass Processing | Function: | Coating Butyl |
| Power: | 5KW | Voltage: | 380V 50HZ |
| High Light: | hot melt butyl extruder,double glass machine |
||
Butyl extruder insulating glass making machine with touch screen with spacer width identify device for shaped frame
Application
LJTB01 Butyl extruder insulating glass making machine with touch screen with spacer width identify device for shaped frame is used to apply hot melt butyl to the aluminum spacers of insulating glass evenly. The use of large electrical control panel makes the operation easier. The conveyor of aluminum is controlled by frequency converter, and the speed can be adjusted from 0m/min to 47m/min. The squeezing system adopts pneumatic and hydraulic supercharging system, which makes the squeezing pressure more stable. The butyl extruder machine is energy-saving. The dispensing cylinder uses rotate supporting system and this makes the refill of butyl easier. The system can prolong the life of squeezing system and set the heating time in 24 hours with electricity and air pressure. The distance of squeezing head can be adjusted automatically according to different aluminum spacer. This Butyl extruder insulating glass making machine with touch screen with spacer width identify device for shaped frame has reached the worldwide technology with the characteristic of complete function and stable working mode.
Main features:
1.Automatic control of nozzle width in application of pneumatic and hydraulic parallel method
2.Possilble to control a precise temperature and 1/100 sec inerval of sensor perception
3. Easily and quickly changeable of spacer width on a consecutive operation
4.Available to select a function for curved spacer, to control and operational height and conveyor belt speed
5.Easily controlable of all functions with Touch Screen and PLC program
6. Possible to control the length of Butyl application and monitoring current production quantity on color Touch Screen
Technical Data
| Squeeze pressure | 10-18MPa |
| Temperature | 110~140℃ |
| Aluminum spacer width | 4-30mm |
| Speed | 0-47m/min |
| Diameter of butyl cylinder | 200mm |
| Air supply | 0.4m³/min |
| Air pressure | ≥0.6MPa |
| Total power | 380V, 5KW, 50HZ |
| Dimension | 2600×680×1100mm(L×W×H) |
| Weight | 650kg |
Main components
| Name | Brand | Original |
| PLC | KINCO | China |
| Valve | HAWE | German |
| Low voltage electrical apparatus | SIEMENS | German |
| Hydraulic and pneumatic supercharging system | MAXIMATOR | German |
| Frequency converter | KINCO | China |
| Pneumatic components(cylinder/valve) | ARTAC | Taiwan |
| Quick exhaust valve/Vacuum generator | SMC | Japan SMC |
| Travel light | OMRON | Japan |
| Optical fiber | OMRON | Japan |

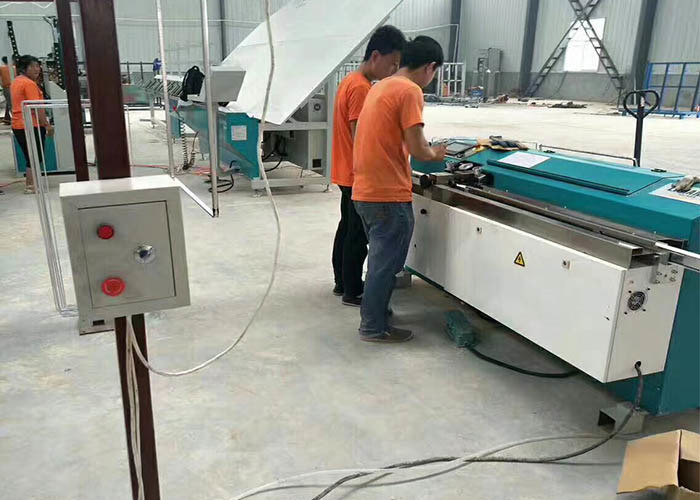

Machie details
FAQ
A: We are factory.
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us .
