Product Details:
|
| Color: | Customer's Request | Filling Aluminum Frame's Maximum Size: | 2000mm*2000mm |
|---|---|---|---|
| Filling Aluminum Frame's Minimal Size: | 300mm*250mm | Article Aluminum Specifications: | 5.5-24mm |
| Air Source: | ≥0.65MPa | Weight: | 420kg |
| Meas: | 1600*1300*3600mm | Power: | 1.8kw |
| Function: | Filling Desiccant To Aluminium Spacer | Voltage: | AC220V 50Hz |
| High Light: | desiccant filler,glass filling machine |
||

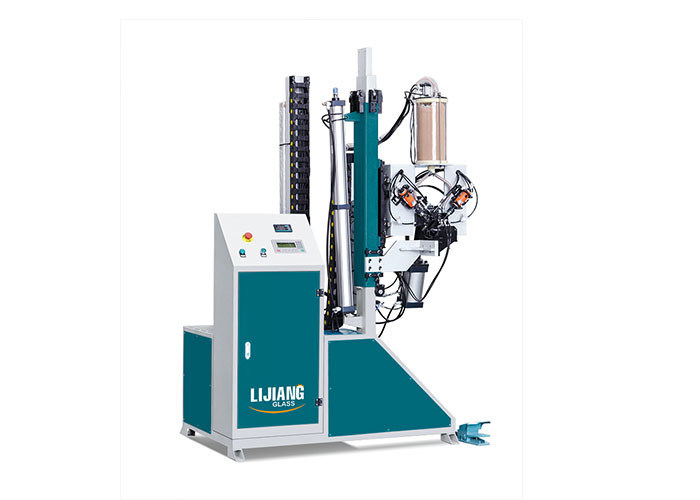

Desiccant Automatic Aluminum Spacer Filling Machine For Double Glass Making For Arc Angle Frame With Touch Screen
Main advantages
| Desiccant filling machine Type | LJGZ 2020 |
| Filling aluminum frame’s maximum size, | 2000mm*2000mm |
| Filling aluminum frame’s minimal size | 300mm*250mm |
| Article aluminum specifications | 6A 27A |
| Air source | ≥0.65MPa |
| Power supply and power consumption, | AC220V 50Hz 1.8KW |
| Molecular sieve diameter needed | 0.9mm 0.5mm |
| Dimension | 1300mm*1100mm*3650mm |
Main components
| Name | Brand | Name | Brand |
| PLC | German SIEMENS | Triplet | TAIWAN AIRTAC |
| Low voltage electrical apparatus | German SIEMENS | Solenoid valve | TAIWAN AIRTAC |
| Sensor | Korea AUTONICS | Gas driller | Taiwan BOA |
| Guide | Taiwan TBI | Switch power | Taiwan TEND |
Machine Details
Machine Parts
Name: Elctronic Parts
Brand: FESTO
Original: Germany
Domestic famous brands, strong driving force, low fuel consumption, high economic benefits.
Responsibility Tracking
Easy find the worker who responsible for this machine and keep machine with higher quality.
