Name: Large Particle Desiccant Filling Machine Simens PLC Control System CE Approved
Brand: Jinan Lijiang Automation Equipment Co., Ltd.
SKU: LJGZ2020
Availability: InStock

Home > Products > Desiccant Filling Machine >

Large Particle Desiccant Filling Machine Simens PLC Control System CE Approved

desiccant filler

glass filling machine

Place of Origin:

Jinan

Brand Name:

Lijiang

Certification:

Model Number:

LJGZ2020

Request A Quote

Large Particle Desiccant Filling Machine Simens PLC Control System CE Approved

Product Details

Material:

Stainless Steel

NAME:

Desiccant Filling Machine

Filling Aluminum Frame's Maximum Size:

2000mm*2000mm

Filling Aluminum Frame's Minimal Size:

300mm*250mm

Article Aluminum Specifications:

5.5-24mm

Air Source:

≥0.65MPa

Function:

Desiccant Filling

Usage:

Double Glass Processing

Type:

Automaic

Power:

1.8kw

Color:

Customers' Request

Highlight:

desiccant filler

glass filling machine

Payment & Shipping Terms

Minimum Order Quantity

Price

Negotiable

Packaging Details

Seaworthy plastic or plywood availible

Delivery Time

30 days

Payment Terms

L/C, T/T

Supply Ability

30 sets/month

PLC Automatic Molecular Sieve Filling Machine Desiccant Filler

Get Best Price

Automatic Desiccant Filling Machine Molecular Sieve AC220V 50Hz 1.8Kw

Get Best Price

Video

Manual Desiccant Filling Machine For IGU Facade Insulating Glass Processing

Get Best Price

Molecular Sieve Automatic Desiccant Filler For Glass Processing

Get Best Price

Contact Now

Product Description

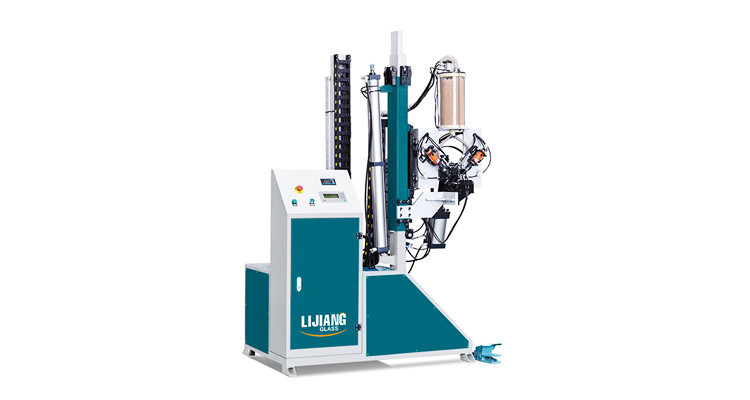

Automatic Aluminum Spacer Desiccant Filling Machine With Simens PLC For Large Particle Molecular Sieve

Main Features

Drilling the hole in the both sides of the frame, then filling the desiccant
Large frame is allowed
Germany Siemens PLC control system
The drilling hole can be sealed by butyl automatically
The diameter of one desiccant is 0.5-0.9mm
Filling for bending frame and connected frame
Auto desiccant loading and adding function
Filling time can be adjust
for production of aluminium spacer frames for insulating glass units;

Main parameter

Desiccant filling machine Type LJGZ 2020

Filling aluminum frame’s maximum size:2000mm*2000mm

Filling aluminum frame’s minimal size:300mm*250mm

Article aluminum specifications:6A-27A

Air source:≥0.65MPa

Power supply and power consumption:AC220V 50Hz 1.8KW

Molecular sieve diameter needed:0.5-0.9mm

Dimension:1300mm*1100mm*3650mm

Machine details

Large Particle Desiccant Filling Machine Simens PLC Control System CE Approved 1

Large Particle Desiccant Filling Machine Simens PLC Control System CE Approved 2

Optional functions

1) Big desiccant bucket

2) Filling arc angle frame

After sale service

After the customer receives the goods, our senior technician will go to customer's factory for installation and commissioning, as well as train the workers until the customer can use the equipment skillfully.

The customer can contact us at any time during the use. Our after-sales staff will solve the problem for you ASAP.
