Hot Melt Butyl Extruder Machine

Hot Melt Butyl Extruder Machine
Hot Melt Butyl Extruder Machine Hot Melt Butyl Extruder Machine Hot Melt Butyl Extruder Machine Hot Melt Butyl Extruder Machine Hot Melt Butyl Extruder Machine Hot Melt Butyl Extruder Machine

Large Image :  Hot Melt Butyl Extruder Machine

Product Details:
Place of Origin: China
Brand Name: LIJIANG
Certification: CE
Model Number: LJTB01
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: 11950-11930
Packaging Details: Wooden
Delivery Time: 20-30
Supply Ability: 35sets

Hot Melt Butyl Extruder Machine

Description
Name: LJTB01 Butyl Extruder Machine Squeeze Pressure: 10-18MPa
Temperature: 110~140℃ Aluminum Spacer Width: 4-30mm
Speed: 0-47m/min
High Light:

hot melt butyl extruder

,

butyl silicone sealant

,

Butyl Extruder Machine 47m/min

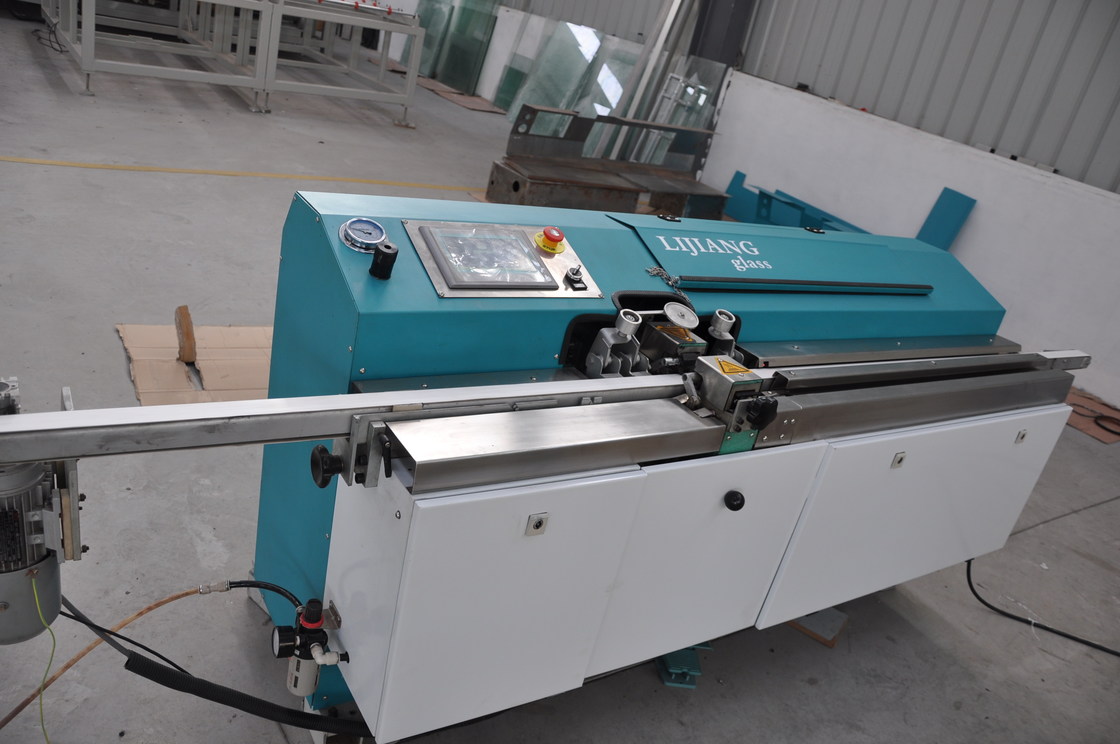

The type of LJTB01 butyl extruder machine is used for spreading aluminum spacer frames evenly with hot melt butyl



LJTB01 butyl extruder machine use large electrical control panel which makes the operation more easier.

The conveyor of aluminum is controlled by frequency converter, and the speed can be adjusted from 0m/min

to 47m/min, which has the fastest speed in China. LJTB01 butyl extruder machine is very popular with

energy-saving. Its squeezing system adopts pneumatic and hydraulic supercharging system, which makes

the squeezing pressure more stable. The dispensing cylinder uses vertical rotary support system and it makes

the refill of butyl easier.



Hot Melt Butyl Extruder Machine 0



Hot Melt Butyl Extruder Machine 1





Squeeze pressure 10-18MPa
Temperature 110~140℃
Aluminum spacer width 4-30mm
Speed 0-47m/min
Diameter of butyl cylinder 200mm
Air supply 0.4m³/min
Air pressure ≥0.6MPa
Total power 380V, 5KW, 50HZ
Dimension 2600×680×1100mm(L×W×H)
Weight 650kg



Hot Melt Butyl Extruder Machine 2



Hot Melt Butyl Extruder Machine 3

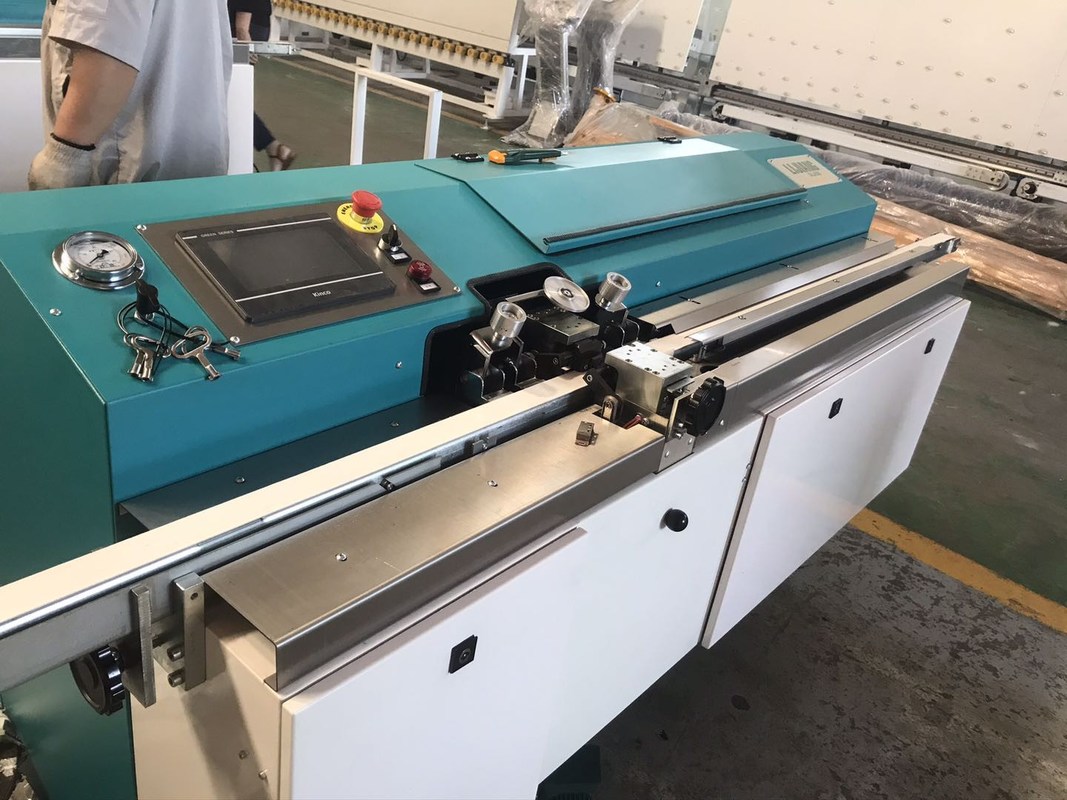

   1, KINCO Touch Screen



Hot Melt Butyl Extruder Machine 4





        Clear interface,

        Simple operation,

        Smart touch screen,

        Updated programming.





















2,Germany Harvey Valve



Hot Melt Butyl Extruder Machine 5                Adopt Germany’s

                Harvey valve,

                 more stable

                 performance.



























JINAN KATION TRADING CO.,LTD.



Founded in 2009, Kation-Tech specializes in R&D, production and sales of Insulating glass machinery

and related auxiliary equipment for the glass deep processing industry and the door and window construction

industry. Has the professional processing basis of insulating glass machinery, aluminum-plastic windows

& doors machinery and the related auxiliary materials, etc. In this way, we provide the most comprehensive

glass processing solution and windows & doors solution for domestic and foreign customers well.



Hot Melt Butyl Extruder Machine 6



Hot Melt Butyl Extruder Machine 7



Hot Melt Butyl Extruder Machine 8





FAQ

Q: What is the system of Kation’s after sale service?

A: Kation has its own special system for the service, we make a “tree of knowledge”for guiding customer

to find the usual problem and the answer when customers meet.

Q: What is the details of the after sale service?

A: Step1: Notice before installation

Step2 : Confirm before installation

Step3: On-site installation



Step4: On-site debugging

Step5: On-site training

Step6: Client sign

Step7: On-line service

Step8: Technical service

More details please search www.lijiang-glass.com

Q: What's the payment term?

A: T/T, L/C and other payment terms could be negotiated.

Q: About this Machine,What’s the guarantee ?

A:1)Our guarantee for 12 months.

2)24 hour’s technical support by email or calling

3)English manual and video tutorial

4)We will provide the consumable parts at an agency price

5)24 hours on line service each day, free technical support.



Hot Melt Butyl Extruder Machine 9
