Insulating Glass Butyl Extruder Machine

Insulating Glass Butyl Extruder Machine
Insulating Glass Butyl Extruder Machine Insulating Glass Butyl Extruder Machine Insulating Glass Butyl Extruder Machine

Large Image :  Insulating Glass Butyl Extruder Machine

Product Details:
Place of Origin: CHINA
Brand Name: LIJIANG
Certification: CE
Model Number: LJTB01
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Wooden box
Delivery Time: within 15 days
Payment Terms: L/C, T/T
Supply Ability: 50sets/month

Insulating Glass Butyl Extruder Machine

Description
Name: Insulating Glass Butyl Extruder Machine Fuction: Butyl Extruder
Application: Making Insulating Glass Brand: Siemens
Speed: 5-47m/s Squeeze Pressure: 10-18MPa
Temperature: 110-140℃ Aluminum Spacer Width: 6A-27A
Diameter Of Butyl Cylinder: 200mm Dimension: 2800*700*900mm
Power: 380V,5.7kw,50HZ
High Light:

hot melt butyl extruder

,

butyl silicone sealant

,

Insulating Glass Butyl Extruder Machine

Insulating Glass Butyl Extruder Manufacturing Machine for making Double Glazing

Lijiang glass have three kinds of butyl Extruder machines ,one is automatic butyl Extruder machine LJTB01, one is the butyl extruder machine LJTB03, another is New full-automatic butyl extruder machine LJTB02.





1.LJTB02 Automatic New Butyl Extruder Machine

Insulating Glass Butyl Extruder Machine 0

Main feature



Automatic butyl extruder spreading machine can automatic spread butyl extruder ,lay a foundation for totally automatic of glass factories in the future.

· feature is that it can automatic spreading circular frame ,in addition,aim to big frame,it has mechanical hand to support and can load two barrels if butyl.

· Smooth convey without scratch and pollution.

· Automatically repair glass comers with beautiful surface.

· Single function partsare equipped with manual functions,easy adjustment.



Technical parameter​ of New full-automatic butyl extruder machine

Aluminum spacer width 6-24mm
Gluing Speed 2-50m/min
Air pressure ≥0.6MPa
Total power 380V, 7KW,50HZ
Dimension 10000×1310×3150mm

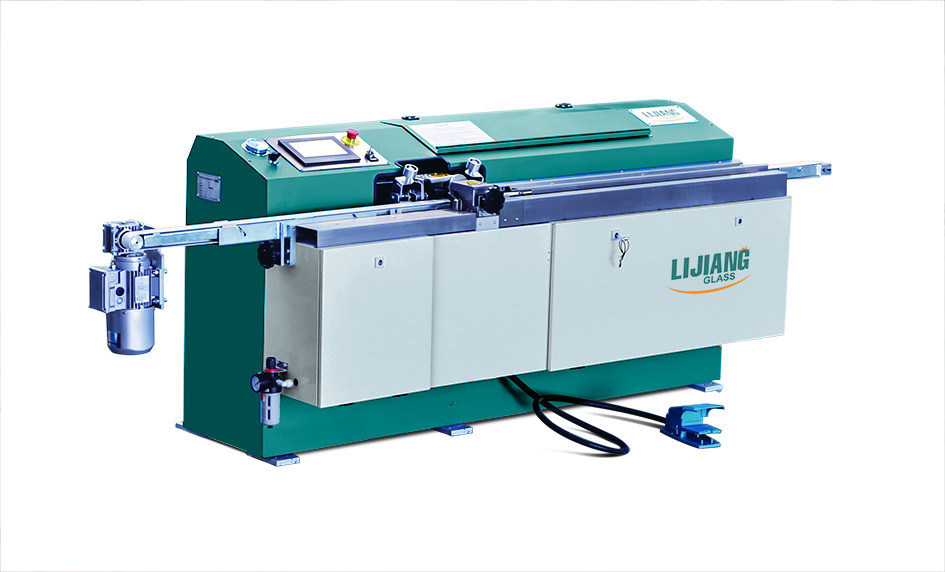

2.Product desicription of automatic butyl Extruder machine LJTB01



Butyl extruder machine LJTB 01 is used for spreading aluminum spacer frames evenly with hot melt butyl.



Butyl extruder squeezing system adopts pneumatic and hydraulic supercharging system, which makes the squeezing pressure more stable. The dispensing cylinder adopts vertical rotary support system, making the refill of butyl more easier. The height of squeezing head can be adjusted automatically according to different kinds of aluminum spacers.



The butyl extruder has reached the worldwide technology with the characteristic of complete functions and stable working mode.



The butyl extruder uses large electrical control panel which makes the operation more easier than before. The conveyor of aluminum is controlled by frequency converter. The speed can be adjusted from 0m/min to 47m/min.



Technical parameter​ of butyl extruder machine



Speed 5-47m/min
Diameter of butyl cylinder 20mm
Aluminum spacer width 6A-27A
Squeeze pressure 10-18MPa
Temperature 110~140℃
Air pressure >0.6MPa
Diameter of butyl cylinder 200mm
Air supply 0.4m³/min
Dimension 2800*700*900mm
Total power 380V, 5KW, 50HZ



Feature of Automatic butyl extruder machine





1.The Butyl Extruder adopt PLC control system ,touch screen interface

Insulating Glass Butyl Extruder Machine 1

2.Germany HAVE Valve

Adopt Germany’s Harvey valve, more stable performance.

Insulating Glass Butyl Extruder Machine 2



3.Glue cylinder of Butyl coating equipment adopt the upright structure, easy to change butyl.

Insulating Glass Butyl Extruder Machine 3



4.Butyl extruder machine adopt Siemens brand,stable performance.

Insulating Glass Butyl Extruder Machine 4



5.Butyl extruder machine is suitable for square, rectangular, shaped, arc and kinds of aluminum frames.

Insulating Glass Butyl Extruder Machine 5



6.Alarm system

Automatically alarm system, reminding adding butyl

Insulating Glass Butyl Extruder Machine 6

7.Butyl Extruder machine can automatically adjust the amount of glue according to different speeds.

Insulating Glass Butyl Extruder Machine 7

8.Automatic filter function
Automatically filter debris, keep spreading evently.

Insulating Glass Butyl Extruder Machine 8



9.Guiding Wheel

Using guiding wheel to help arc frames coating.

Insulating Glass Butyl Extruder Machine 9

10.The Butyl coating machine can be Quickly speed of warming,Up to 47m / min,improve work effect.

Insulating Glass Butyl Extruder Machine 10






Leading Technology

  • Stable temperature device makes it convenient to adjust the sealing material automatically according to the changed coating speed.
  • The coating speed is up to 47m/min, save more than 40% butyl than others, only need 7g/m.
  • Quickly heating function, preheat the machines with only 20 minutes per day, improve work efficiency.




Company Introduction



Jinan Lijiang Automation Equipment Co., Ltd.have independently produced the vertical automatic IG production line with filling gas on line, the vertical IG sealing robot, the automatic spacer bending machine, the automatic desiccant filling machine and the new fully automatic butyl extruder machine, its technology and quality have reached the highest leading level in China.It is committed to building high-end insulating glass machinery and equipment by learning from famous experts, establishing the research and development centers, cooperating with domestic and foreign well-known enterprises, importing advanced technology and so on.  Since the establishment of the company, our products have been exported to Europe, America, South America, the Middle East, Southeast Asia, India, nearly 30 countries and regions.



With the rapid development of insulating glass industry, LIJIANG is looking forward to working with you for win-win situation and jointly creating a new world.

Insulating Glass Butyl Extruder Machine 11

Insulating Glass Butyl Extruder Machine 12Insulating Glass Butyl Extruder Machine 13Insulating Glass Butyl Extruder Machine 14

Insulating Glass Butyl Extruder Machine 15

Insulating Glass Butyl Extruder Machine 16

Insulating Glass Butyl Extruder Machine 17
