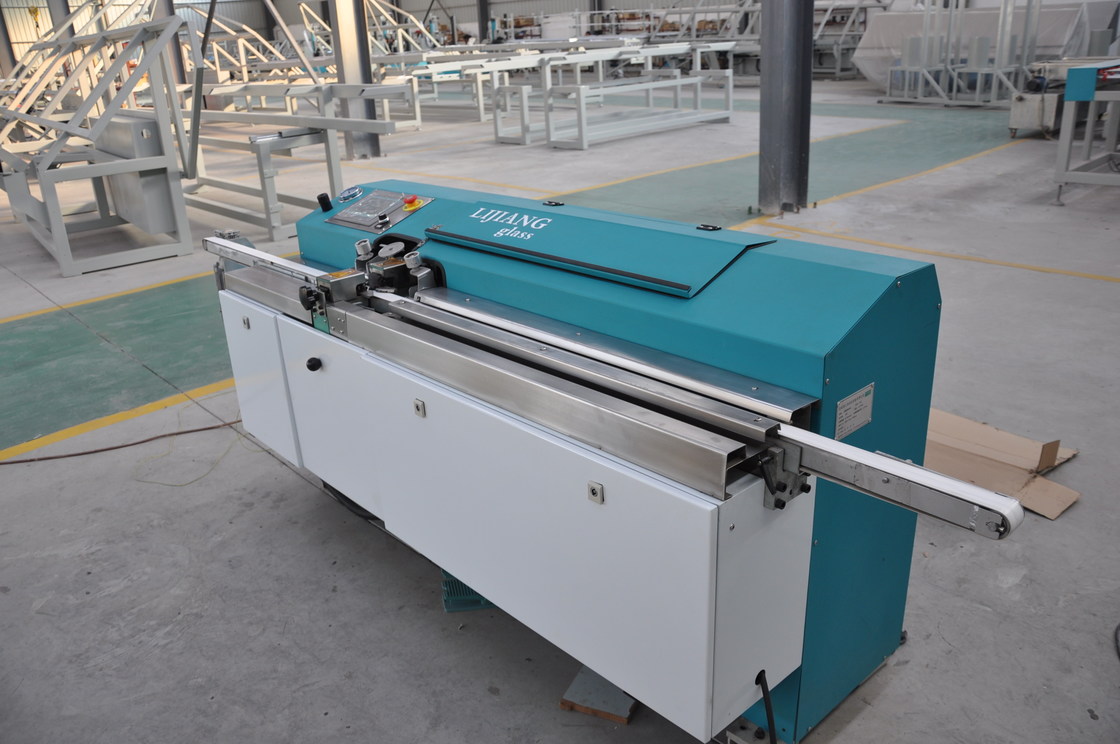

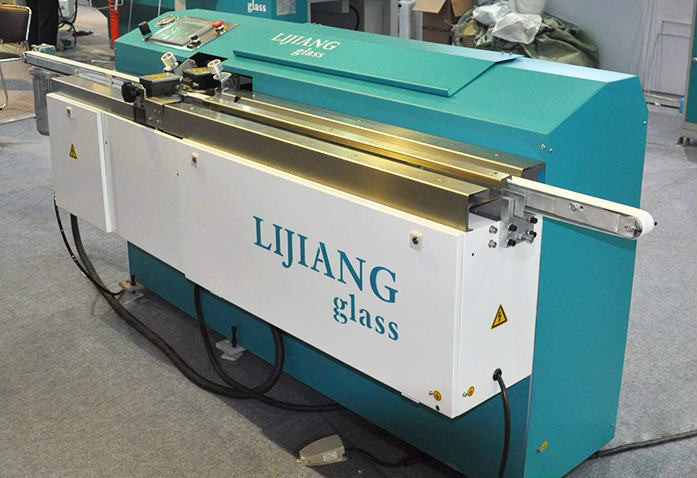

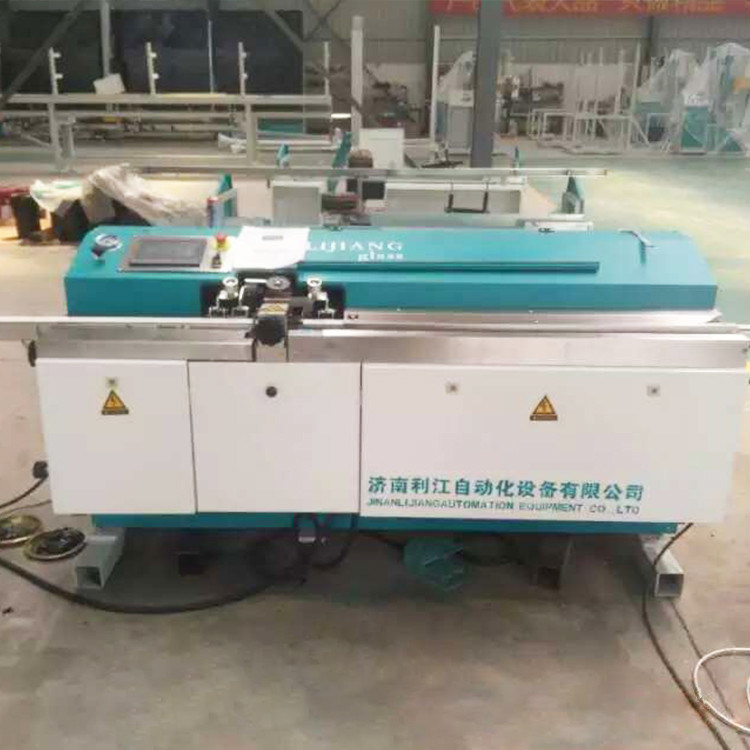

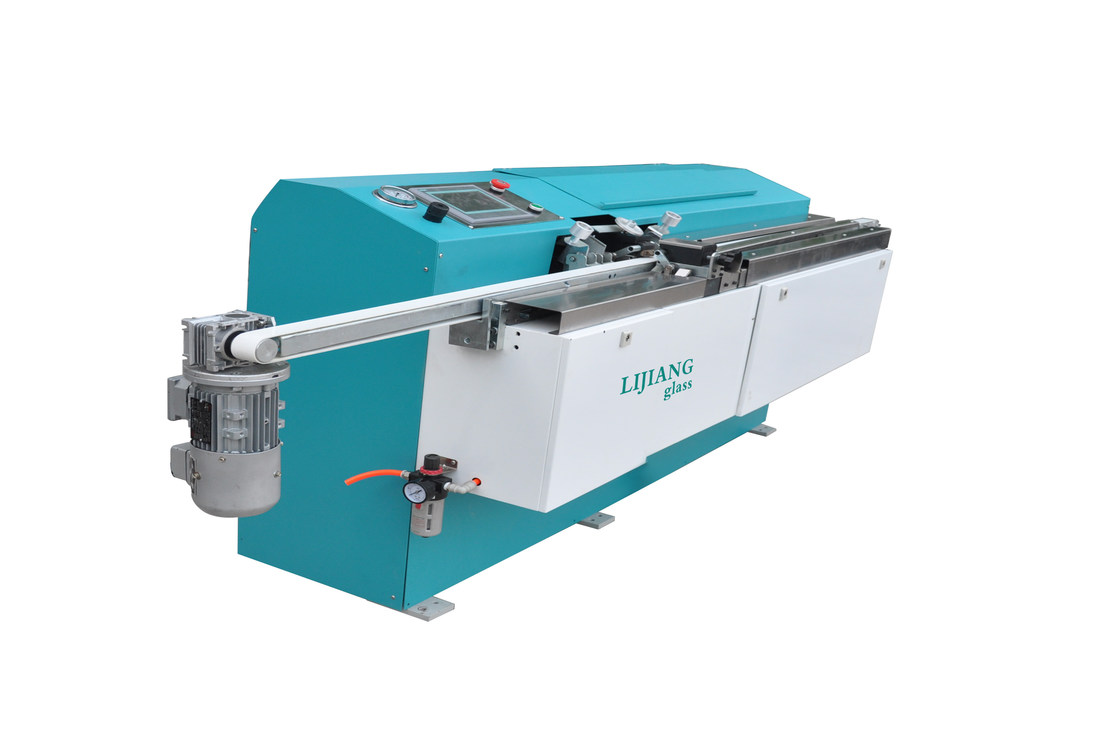

2500mm*3500mm Hot Melt Butyl Machine

2500mm*3500mm Hot Melt Butyl Machine
2500mm*3500mm Hot Melt Butyl Machine 2500mm*3500mm Hot Melt Butyl Machine 2500mm*3500mm Hot Melt Butyl Machine 2500mm*3500mm Hot Melt Butyl Machine 2500mm*3500mm Hot Melt Butyl Machine 2500mm*3500mm Hot Melt Butyl Machine 2500mm*3500mm Hot Melt Butyl Machine 2500mm*3500mm Hot Melt Butyl Machine

Large Image :  2500mm*3500mm Hot Melt Butyl Machine

Product Details:
Place of Origin: China
Brand Name: LIJIANG
Certification: CE
Model Number: LJTB02
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: $8000-6500/set
Packaging Details: wooden box
Delivery Time: 30days
Supply Ability: 5sets/month

2500mm*3500mm Hot Melt Butyl Machine

Description
Name: Automatic New Butyl Extruder Machine LJTB02 Overall Dimension: 10000mm*1310mm*3150mm
Type: Horizontal Model: LJTB02
Color: Customers' Request Min Glass Size: 170mm*400mm (2000mm Machine)
Max Glass Size: 2500mm*3500mm Control System: SIMENS
Brand: LiJiang Voltage Power: 3P 380V 50HZ
Power: 7
High Light:

butyl silicone sealant

,

double glass machine

,

Horizontal Hot Melt Butyl Machine

2500mm*3500mm Hot Melt Butyl Machine 0

ALL THE IG PRODUCTS ARE 20% OFF ON MAY,2020 2500mm*3500mm Hot Melt Butyl Machine 1
Application
2500mm*3500mm Hot Melt Butyl Machine 2



Automatic Butyl Extruder Machine

LJTB02
Function and feature
1.The machine is suitable for glass deep processing enterprise ,high automation, Reduce labor intensity, save manpower, improve production efficiency
2. Whole machine adopt man-machine touch screen interface,with memory function .
3.After coating sealant ,the glass edge and corner is full without air bubbles , smooth surface, no need to pare the corner
4. Using two sets of independent sealant supply system ( including the mixing device ), two kinds of sealants switch fast ,in one-button operation easily (Model II)
5.The width of machine is 1.5m ,small floor area, save space
6. The third section can prestore glass to improve the efficiency effectively
7.The smallest insulating glass size can be processed is 300*300mm
8.Equipped anti blocking device in the mixer
9. Servo control system adopts world famous brand (Japan YASKAWA ), the performance is stable
10. Shaft transmission to make the glass being transferred smoothly with accurate positioning.
11. Special V type transmission belt to avoid the sealant sticking on the belt, ensure the glass edge clean ,V type Block is changeable .
12. The spare parts are produced with high standardization and high precision, ensure the machine can be used with long-term stability
13.Suitable for triple glazing .
14.Conveying wheel on backboard adopts embedded wheel ,to make sure the glass be transported smoothly

  2500mm*3500mm Hot Melt Butyl Machine 3
2500mm*3500mm Hot Melt Butyl Machine 42500mm*3500mm Hot Melt Butyl Machine 5
Safety rules for machine movement
Please carry the machine with the proper lifting tool to avoid hurt people or machine.
Machines can not be stacked.
Select the proper ground to install the machines according with the weight of the machines.
Please capture the central location of the machines to lift it, to avoid side dumping .
Do not stand under the machine after lifting it to avoid hurting.
Do not run the machine when the machines is damaged or lack some spare parts.
Do not put anything on the machines.
Install the machine even on the ground.


2500mm*3500mm Hot Melt Butyl Machine 6
     2500mm*3500mm Hot Melt Butyl Machine 7

2500mm*3500mm Hot Melt Butyl Machine 8

  • Max. glass size (mm):2500(H)*4000(L)
  • Min. glass size (mm):300(H)*400(L)
  • Extruding speed :100mm~500mm/s
  • Extruding depth:5mm~18mm
  • Sealant supply pressure :<35 Mpa (hydraulic pressure<10Mpa ,sealant pressure <35Mpa)
  • Board angle :6°~9°
  • Air pressure :0.6~0.8 Mpa
  • Max glass weight :300kg
  • Glass specification :(4+6+4)mm~(12+25+12)mm
  • Extruding sealant must under the condition that the glass edge is smooth and without dislocation of the insulating glass ,there are many sensors on the machine ,it require unrelated persons do not near the machine so as to avoid malfunction and cause damage of the machine or threaten the personal safety .
  • It need to open the timing sealant discharge function if it need long time (more than 5 minutes )to extrude sealant to the second glass so as to avoid blocking the mixer
  • Check the parameters carefully before extruding sealant ,change the parameter of glass size ,glass thickness etc timely when change the glass batch.
  • It need to change the sealant amount if use different sealant as the viscosity maybe different
  • When start working ,it need to wait the hydraulic pressure is stable ,then start extruding sealant on the first glass so as to avoid sealant output not stable .

2500mm*3500mm Hot Melt Butyl Machine 9









Squeeze pressure 10-18MPa
Temperature 110~140℃
Aluminum spacer width 4-30mm
Speed 0-47m/min
Diameter of butyl cylinder 200mm
Air supply 0.4m³/min
Air pressure ≥0.6MPa
Total power 380V, 5KW, 50HZ
Dimension 2600×680×1100mm(L×W×H)
Weight 650kg

FAQ

1.Question:The delivery time ?
answer: normally no more than 10 days
2.Question:electric parts use ?
answer : SIEMENS
3. Where is the factory?
answer : JINAN CITY. SHANGDONG PROVINCE , CHINA .
