Product Details:
|

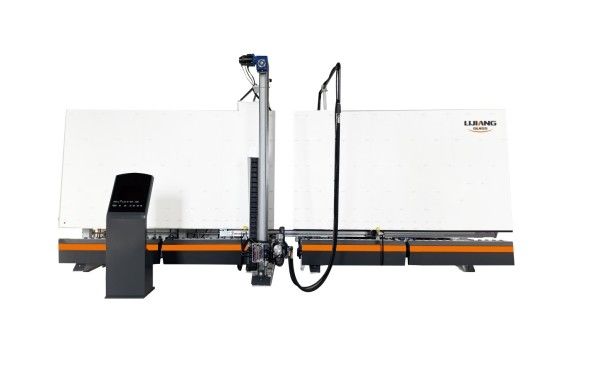

| Product Name: | Vertical Insulating Glass Sealing Robot | Max. Glass Size: | 2000mm*3000mm |
|---|---|---|---|
| Min. Glass Size: | 400*300mm | Working Speed: | 5-40m/min |
| Air Pressure: | ≥0.6MPa |
Main Features:
• Servo system control, 8 sets of servo motors, full automatic and high-efficiency sealing robot
• 4 sections totally, can storage glass for small pieces
• Adopt tank Chain convey heavy glass
• Automatically repair glass corners with scraper
• Automatically measure glass size, glue depth (30mm
• Every auto-function button is with manual operation
• Can coat double/triple glass/step glass (Option)
• Can be connected with different brands of IG line
• Two sets of sealing pumps for two different sealants (Option)
• Two sets of sealing pumps for one sealant to keep long time working (Option)
• Can use silicone,Polysulfide, polyurethane and silicone structural sealants
Technical data
| Max. glass size | 2000mm*3000mm |
| Min. glass size | 400*300mm |
| Glass thickness | 12-56mm |
| Working speed | 5-40m/min |
| Air pressure | ≥0.6MPa |
| Squeeze pressure | 32MPa |
| Voltage power | Custom-made |
| Overall dimension | 8700*2500*3500mm |
Electrical parameters
| NAME | ORIGIN | BRAND |
| Servo motor | Japan | YASKAWA |
| Servo driver | Japan | YASKAWA |
| CPU | Japan | YASKAWA |
| Low voltage component | Germany | SIEMENS |
| Guideway | Taiwan | HIWIN |
| Switching power supply | Taiwan | MW |
| Sensor switch | Korea | AUTONICS |
| Pneumatic component | Japan | SMC |
| Touch screen | China | GAOSHAN |
| Servo motor | Japan | YASKAWA |
| Servo driver | Japan | YASKAWA |
