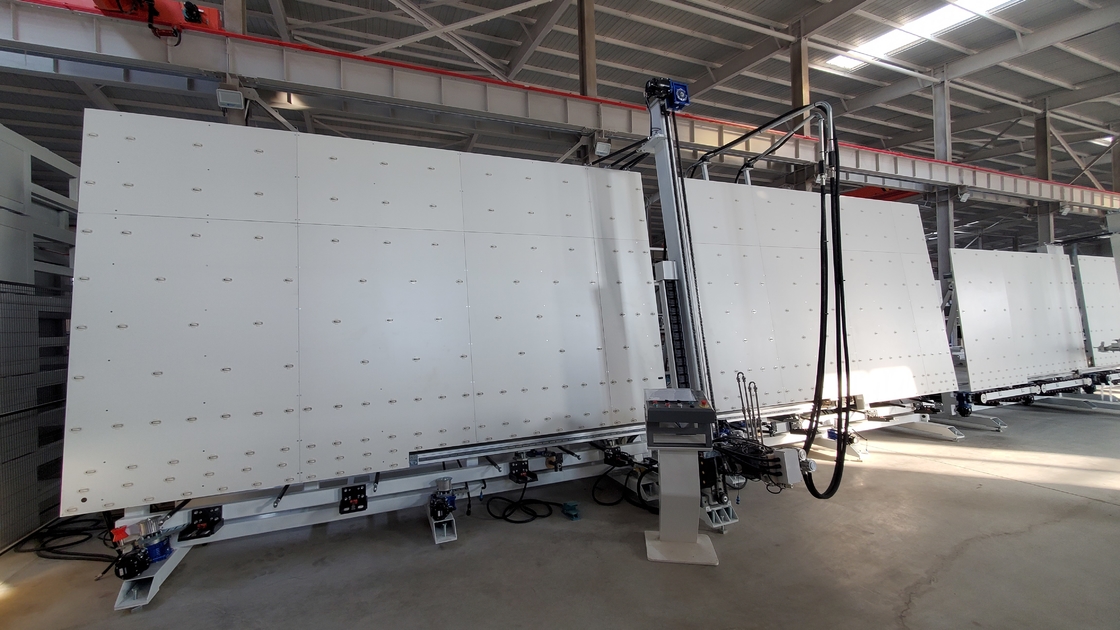

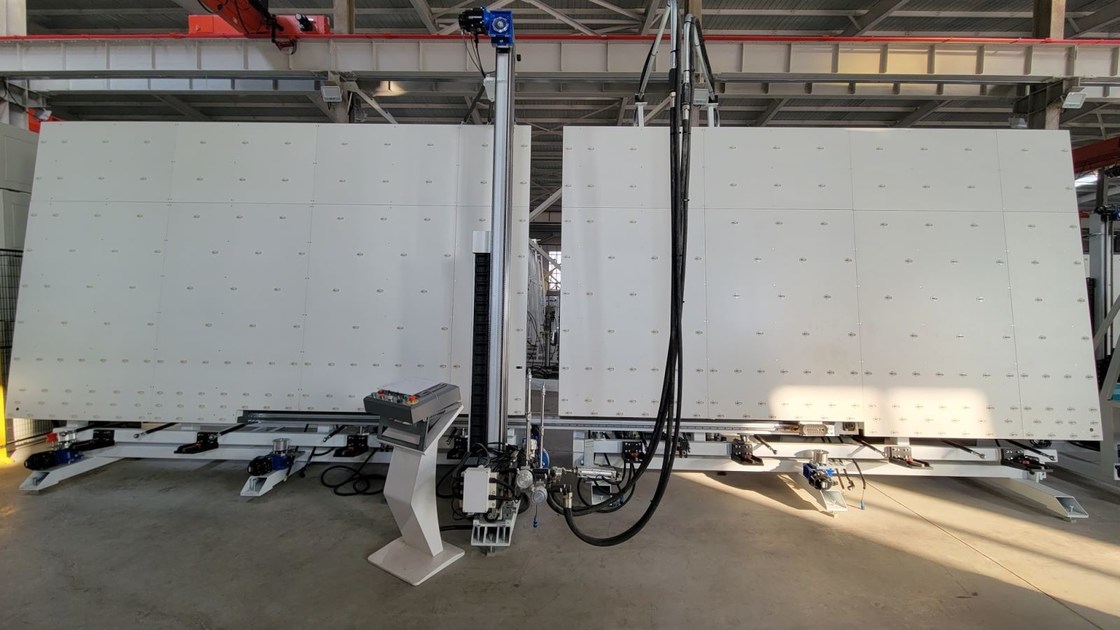

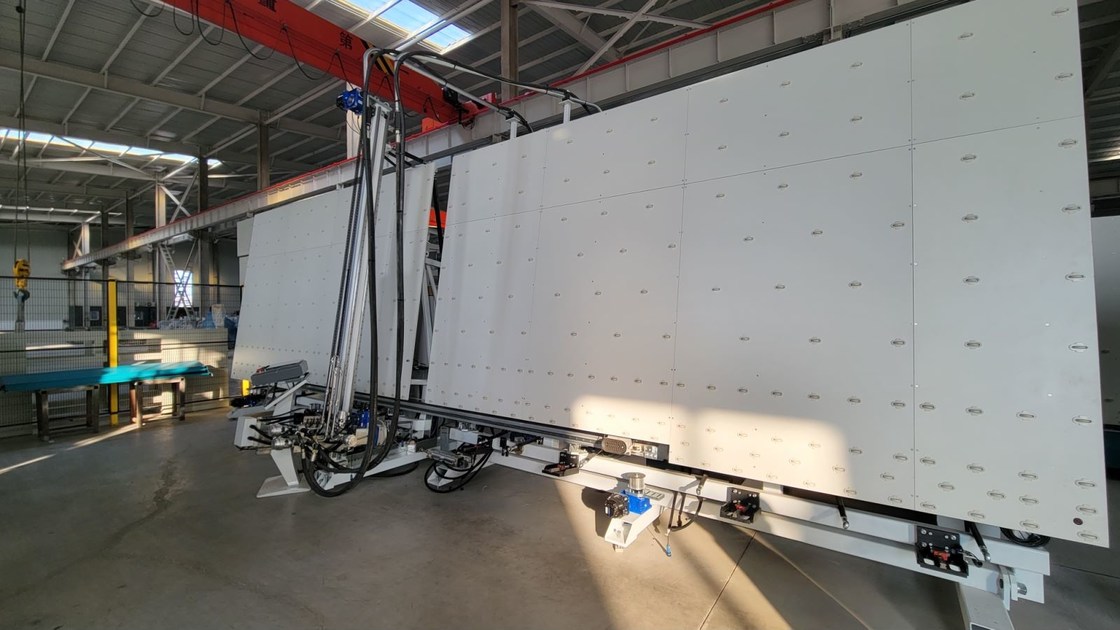

Insulating Glass Double Triple And Step Sealing Robot For IG Line

Insulating Glass Double Triple And Step Sealing Robot For IG Line
Insulating Glass Double Triple And Step Sealing Robot For IG Line Insulating Glass Double Triple And Step Sealing Robot For IG Line Insulating Glass Double Triple And Step Sealing Robot For IG Line Insulating Glass Double Triple And Step Sealing Robot For IG Line

Large Image :  Insulating Glass Double Triple And Step Sealing Robot For IG Line

Product Details:
Place of Origin: JINAN CHINA
Brand Name: Lijiang glass
Certification: CE
Model Number: LJTJ3350
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD 90000 - 120000 per set
Packaging Details: Containers
Delivery Time: 90days
Payment Terms: L/C, T/T
Supply Ability: 10 sets per month

Insulating Glass Double Triple And Step Sealing Robot For IG Line

Description
Name: Nsulating Glass Sealing Robot Max Size: 3300 Mm*5000 Mm
Min Size: 450mm*300mm Glass Type: Double/triple/step Insulating Glass
IG Thickness: 60 Mm Glue Depth: 30mm
Brand: Lijiang Glass Warranty: 1 Year
Voltage: 380 V 50 Hz 3 P (optional) Color: Green And White
High Light:

60mm IG Glass Sealing Robot

,

Step Insulating Glass Sealing Robot

,

Double Insulating Glass Sealing Robot

IG Line Insulating Glass Double Triple And Step Sealing Robot For Insulating Glass
Jumboo Size Automatic Insulating Glass Sealing Robot Machine For IG Line  LJTJ3350

Vertical Insulating Glass Sealing Robot LJTJ3350

Main Features:
• Japan Yaskawa servo system control, high efficiency automatic sealing machine
• 4 sections for glass storage
• Adopt synchronous belt, stable transmission and precise positioning
• Automatic repair of glass corners with scrapers and rollers
• Automatically measures glass size, glue depth (30mm)
• Each automatic function is manually controlled
• Double glazing available
• Shaped glass, stepped glass with optional edges
• Silicone, polysulfide and silicone structural sealants can be used
• Adhesive head on front of machine for easy step glass application
• Can be connected to insulating glass processing lines
Insulating Glass Double Triple And Step Sealing Robot For IG Line 0
Technical data

Max. glass size3300*5000mm
Min. glass size400*300mm
Glass thickness12-80mm
Working speed5-40m/min
Aluminum size6-30mm
Glue depth5mm-30mm
Glue pressure<350kg/cm³
Air pressure0.6 - 0.8MPa
Squeeze pressure32MPa
Total power20kw

Electrical parameters

NAMEORIGINBRAND
Servo motorJapanYASKAWA
Servo driverJapanYASKAWA
CPUJapanYASKAWA
Low voltage componentGermanySIEMENS
GuidewayTaiwanHIWIN
Switching power supplyTaiwanMW
Sensor switchKoreaAUTONICS
Pneumatic componentJapanSMC
Touch screenChinaGAOSHAN
Servo motorJapanYASKAWA
Servo driverJapanYASKAWA


Electrical parameters

NAMEORIGINBRAND
Servo motorTaiwanTAIDA
PLCTaiwanTAIDA
Pneumatic componentTaiwanAAIRTAC
Low pressure electricityGermanySIEMENS
Circuit breakerGermanySIEMENS
Sensor switchKoreaAUTONICS
Approach switchKoreaAUTONICS
Limit switchTaiwanTEND
ConnectorGermanySIEMENS
Frequency converterFranceSCHNEIDER
Main ButtonFranceSCHNEIDER
Intermediate relayJapanOMRON


Ⅰ.Warranty : 1 year
Wearing parts and equipment damage caused by customer's reasons are not included in the free warranty.
Ⅱ. LIJIANG has the own system for after sale service, which including three parts.
1. After Lijiang equipment arrives at customer's factory, Lijiang can send engineers to customer's factory for installation, commissioning and personnel training, without commission. However, the customer will bear the cost of the engineer's return airfare and accommodation.
2. During the warranty period, if there is any problem with Lijiang equipment, Lijiang will provide online technical support as soon as possible. However, if the engineer needs to go to the customer's factory to repair the machines, the customer should pay for the round-trip airfare and accommodation. Please note that if the spare parts are damaged because of Lijiang, Lijiang will prepare them in advance (except the wearing parts).
3. If there is any problem with Lijiang equipment beyond the warranty period, Lijiang will provide online technical support as soon as possible. However, if the customer requests an engineer in Lijiang, the customer should bear the engineer's round-trip airfare and accommodation, and the customer should also pay a service fee of $150 per day in Lijiang.
Note: Before Lijiang engineers go to the customer's factory, the customer should send the air ticket and hotel information in advance. Lijiang will arrange engineer route and maintenance project as soon as possible.

Common problem
Q: What is Kation's after-sales service system?
A: Kation has its own proprietary service system. We create a "knowledge tree" to guide clients to find and answer common questions when meeting with clients.
Q: What are the after-sales service details?
A: The first step: Precautions before installation
Step 2: Confirmation before installation
Step 3: On-site installation
Step 4: On-site debugging
Step 5: On-site training
Step 6: Customer Signature
Step 7: Online Services
Step 8: Technical Services
For more details, please search www.lijiang-glass.com
Q: What is the payment term?
A: T/T, L/C and other payment terms can be negotiated.
Q: Regarding this machine, what is the warranty?
A:1) Our warranty period is 12 months.
2) 24 hour technical support by email or phone
3) English manual and video tutorial
4) We provide wearing parts at agency price
5) 24 hours online service, free technical support.
Q: What about your warranty?
A: Generally speaking, our warranty period is one year. During the warranty period, we can provide technical support, provide feedback within 24 hours, and help you repair your problem controller for free, even if it is not from our factory.
Q: Can we visit your factory before ordering?
A: Yes, we warmly welcome you and sincerely invite you or your team to visit our factory. We will help you organize your hotel and pick you up at the airport.
Q: What is the delivery time?
A: Mostly our factory has stock. If there is no stock, the delivery time is usually 15-20 working days after receiving the deposit. If you have urgent needs, we can consider making special arrangements for you.
