Place of Origin:
Jinan
Brand Name:
Lijiang
Certification:
CE
Model Number:
LJTJ2540
Video
Video
Video

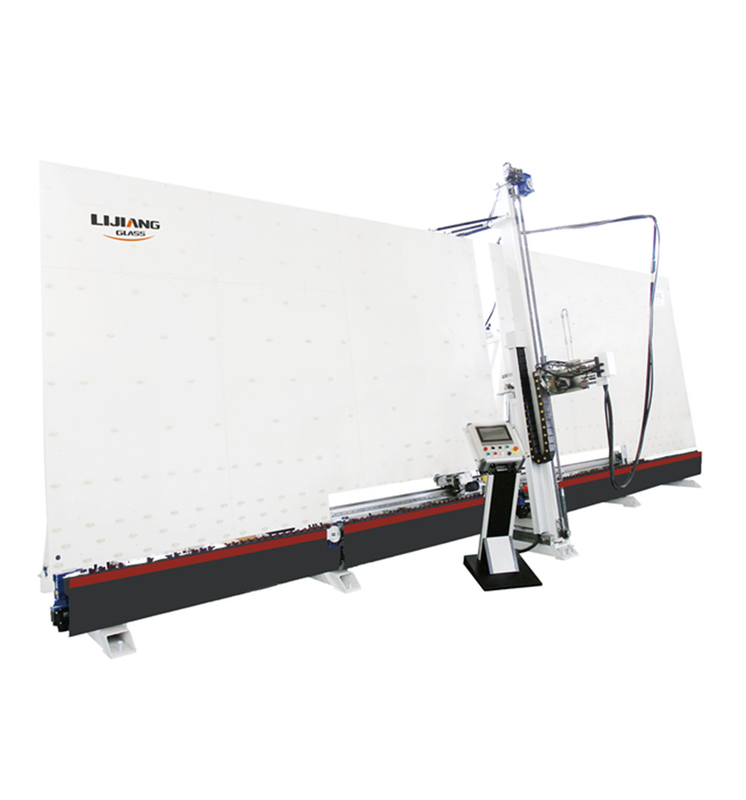

Automatic Insulated Glass Sealing Robot Glass for insulating glass processing
Automatic insulted glass sealing robot is used for the second sealing procedure of the double glass. Silicone glue, polyurethane glue or polysulfide glue are applied around Insulating glass to play the second sealing role and to maintain the stability of the structure.
Main feature of Automatic Insulated Glass Sealing Robot
Using two sealant supplying system, more convenience and high efficiency.
Automatically measuring sealing depth and sealant output
Automatically check IG thickness
1.Automatic insulated glass sealing machine adopt timing belt to keep smooth convey with accurate position
2.Automatic insulated glass sealing line adopt 8 servo motors
3.Spares are produced with high standardization and high precision, ensure the machine can be used with long-term working
4.Automatically measure glass size, glue depth and glue speed with linear adjustment
5.Full automatic and high-efficiency machine,Automatically repair glass corners with beautiful surface,Smooth convey without scratch and pollution
6.New scraper design, especially for making train IG with very even sides and corners, without any bubbles.
7.Single-function parts are equipped with manual functions, easy adjustment
Technical parameter of insulated glass spreading machine
| Max.glass size | 2500*4000mm |
| Min.glass size | 400*300mm |
| Glass thickness | 12-56mm |
| Working speed | 5-40m/min |
| Air pressure | 0.5-0.7MPa |
| Squeeze pressure | 32MPa |
| Voltage power | 380V 12kw |
| Overall dimension | 8000*1500*3500mm |
Detail pictures of insulated glass machine
Video
