Vertical Automatic Glass Sealing Robot For Insulating Glass IG Unit CE Certificate

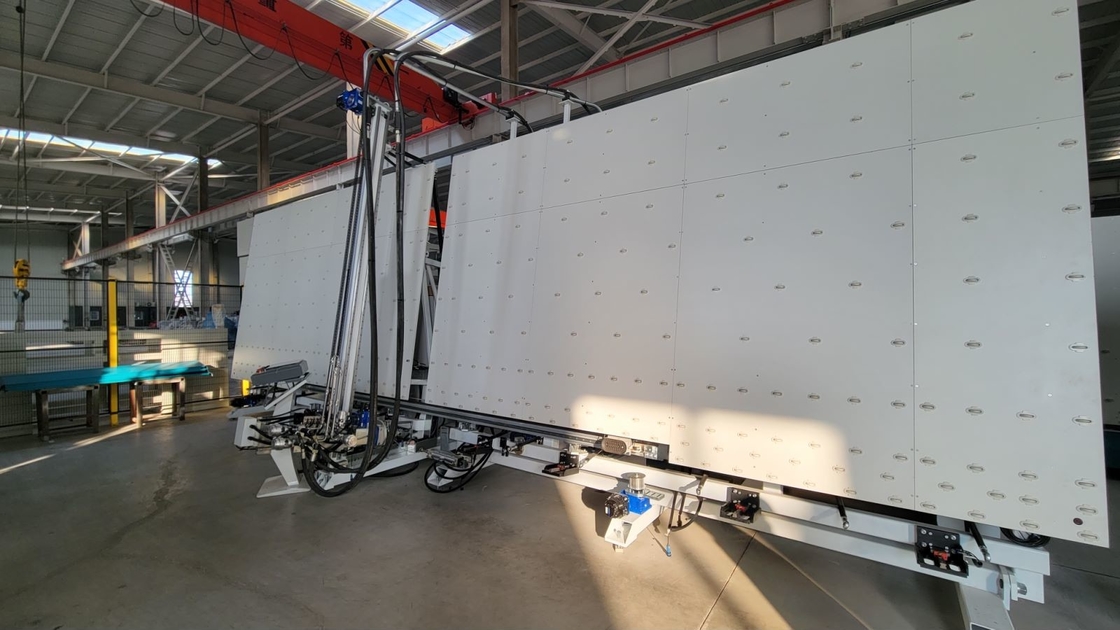

Large Image : Vertical Automatic Glass Sealing Robot For Insulating Glass IG Unit CE Certificate

Product Details:

Place of Origin:	Jinan
Brand Name:	Lijiang
Certification:	CE
Model Number:	LJTJ2540

Payment & Shipping Terms:

Minimum Order Quantity:	1 SET
Price:	65000 USD/SET
Packaging Details:	Container
Delivery Time:	20 DAYS
Payment Terms:	L/C, T/T
Supply Ability:	10 SETS/MONTH

Contact Now

Vertical Automatic Glass Sealing Robot For Insulating Glass IG Unit CE Certificate

Description

Name:	Insulating Glass Automatic Sealing Rob	Max.glass Size:	2500mm
Min.glass Size:	170mm*400mm (2000mm Machine)	Glass Thickness:	12-56mm
Working Speed:	5-40m/min	Air Pressure:	0.6-0.8MPa
Squeeze Pressure:	<350kg/m³	Plane Angle:	6°- 9°
Max Glass Weight:	400kg	Voltage Power:	380V 12kw
Overall Dimension:	8700mm2000mm3500mm
Highlight:	Automatic Glass Sealing Robot Vertical , Glass Sealing Robot 40m/min , CE Certificate Glass Sealing Robot

Vertical Automatic Glass Sealing Robot For Insulating Glass IG Unit CE Certificate Good Quality

Vertical Insulating Glass Sealing Robot :

Vertical Automatic Glass Sealing Robot For Insulating Glass IG Unit CE Certificate 0

* Min & Max glass sizes can be optional

* Adopt 8 servo motors

* Adopt Japan ANCHUAN servo control systemwith stable performance

* Automaticallymeasure glass size, glue depth and glue speed with linear adjustment

* Adopt timingbelt to keep smooth convey with accurate position

* Sparesare produced with high standardization and high precision, ensure the machine can be used with long-term working

* The glass cornersare full without air bubbles, smooth surface, no need to

* Full automatic and high-efficiencymachine

* New scraper design, especially for making train IG with very even sides and corners, without any bubbles.

* Automatically repair glass corners with beautiful surface

* Smooth convey without scratchand pollution

* Single-function partsare equipped with manual functions, easy adjustment

* Shaped IG units (Optional)

* Stepped IG units with four sides (Optional)

* Double and Triple IG units

Parameter:


			Item.

			Spec.

			Max.glass size

			2500mm

			Min.glass size

			170mm*400mm (2000mm machine)

			Glass thickness

			12-56mm

			Working speed

			5-40m/min

			Air pressure

			0.6-0.8MPa

			Squeeze pressure

			<350kg/m³

			Plane angle

			6°- 9°

			Max glass weight

			400kg

			Voltage power

			380V 12kw

			Overall dimension

			8700mm*2000mm*3500mm

1.It can store three pieces of insulating glasses when glass sizes are less than 1.8m

2.With the development of updating technology, the sealing robot can coat 8 shaped glasses according to the glass market.

3.We put the machine head in the front,it will more convenient to making stepped IG units,It can connect with the IG line.
