Product Details:
|
| NAME: | AUTOMATIC SPACER BENDING MACHINE | SPACER TYPE: | WARM EDGE SPACER / ALUMINIUM SPACER / STAINLESS STEEL |
|---|---|---|---|
| BRAND: | JINAN LIJIANG AUTOMATION EQUIPMENT CO.,LTD | SPACER SIZE: | 2000MM*2000MM / OVER THAT |
| SPACER WIDTH: | 5.5MM - 26.5MM | SPACER RACKS: | 4 GROUPS |
| TOTAL POWER: | 2.5 KW | DIMENSION: | 10500MM*2200MM*2600MM |
| High Light: | Glass Insulating Spacer Bending Machine,Warm Edge Spacer Bending Machine,Spacer Bending Machine 2.5 KW |
||

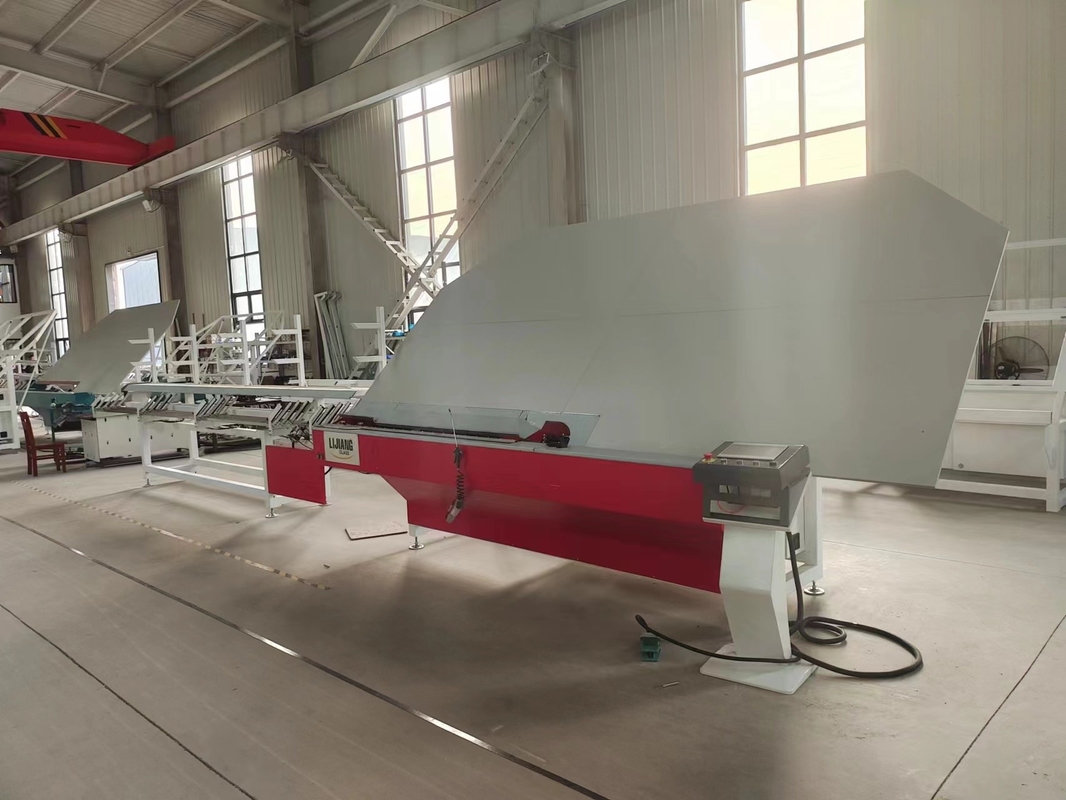

Automatic Warm Edge Spacer Bending Machine For Insulating Glass Processing
Automatic spacer bending machine is used to bend the spacer frame for the inside of insulated glass, the spacer can use aluminum spacer, stainless steel spacer and warm edge spacer. Automatic Spacer Bending machine can read the dates from computer directly in office. There are eight different shapes of spacers available. Using PLC to control it.
Main feature of automatic spacer bending machine
• Aluminum bar bending machine adopts Siemens 1200 PLC control system, fast working speed
• Four groups of storage
• Aluminum strip bending machine can automatically cut and feed aluminum gaskets
• Automatic aluminum bar bending machine automatically avoids pins when bending and cutting
• Continuous bending spacer
• Aluminum gaskets are 6A-27A in size
• Use different bending tools for different spacers of different sizes
• Pause and reset the device to handle device failures
• Curved aluminum gasket, smooth stainless steel gasket, warm edge gasket
• The automatic aluminum bar bending machine has USB input function and can directly read files in excel format
• Connect to ERP system (optional)
• Automatic drilling and argon filling (optional)
• Interval print code function (optional)
• Printing label self-adhesive (optional)
• Curved shaped frames. Use a round wheel device to bend round frames or boxes with rounded corners. Minimum R60, maximum R150, interval size: 6A-16A). Different sizes of aluminum strips require different sizes of tools (optional)
Technical data of Automatic spacer bending machine
| Max. bending size | 2000mm*2000mm |
| Min. bending size | 250mm*200mm |
| Aluminum spacer width | 5.5-27mm |
| Dimensional error | ±0.5mm |
| Angle error | ±1º |
| Processing speed | 17s |
| Air supply | ≥0.65MPa |
| Total power | AC220/380V 50Hz 2.5KW |
| Dimension | 10500mm*2200mm*2600mm |
Electrical parameters of Automatic spacer bending machine
| NAME | ORIGIN | BRAND |
| PLC | Germany | SIEMENS |
| Servo driver | Germany | SIEMENS |
| Servo motor | Germany | SIEMENS |
| Low voltage component | Germany | SIEMENS |
| Triplet | Taiwan | AIRTAC |
| Cylinder | Taiwan | AIRTAC |
| Relay | Japan | OMRON |
| Sensor | KOREA | AUTONICS |
| Touch screen | Taiwan | WEINVIEW |
| Guide | Taiwan | TBI |
| Solenoid valve | Taiwan | AIRTAC |
| Switch power | Taiwan | TEND |
Insulating glass machinery manufacture products mainly include:
Insulating glass machine;
IG line series;
Automatic sealing robot series;
Low-e film edge deletion machine;
Spacer bending machine series;
Butyl extruder machine series;
Desiccant filling machine and other auxiliary insulating glass machines.
