Place of Origin:
China
Brand Name:
Lijiang glass
Certification:
CE

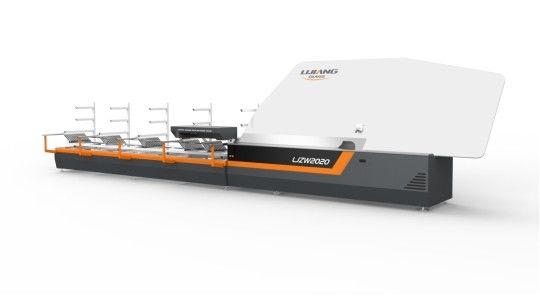

Model Number:
LJZW2020
Main feature
• Adopt Siemens PLC control system, touch screen interface
• CNC servo control system
• Four spacer size storage units
• Automatically cut and feed aluminum spacers
• Auxiliary function of adjustment for bending large aluminum frame
• Aluminum spacers are available in different sizes and sizes
• Bend shaped (8 shapes) spacer frames continuously
• Separated guard board outside of bender
• Automatically avoid the connection while bending and cutting
• Pause and Reset device for handling equipment failures
• USB input function, read the excel format file directly etc
• Printing label sticker function (Option)
• Laser print logo (Option)
• Can bend warm edge spacer (Option)
• Can bend aluminum spacer and stainless steel (Option)
• Connect to ERP system (Option)
Technical data
| Max. bending size | 2000mm*2000mm over big size will bend twice |
| Min. bending size | 250mm*200mm |
| Aluminum spacer width | 5.5mm - 27mm |
| Dimensional error | ±0.5mm |
| Angle error | ±1º |
| Processing speed | ≤26s |
| Air supply | ≥0.65MPa |
| Total power | AC220/380V 50Hz 2.5KW |
| Dimension | 10500mm*2200mm*2600mm |
Electrical parameters
| NAME | BRAND | NAME | BRAND |
| PLC | GERMAN SIEMENS | Triplet | Taiwan AIRTAC |
| Low voltage electrical apparatus | GERMAN SIEMENS | Cylinder | Taiwan AIRTAC |
| Servo motor | JAPAN FUJI | Solenoid valve | Taiwan AIRTAC |
| Servo driver | JAPAN FUJI | Switch power | Taiwan TEND |
| Relay | JAPAN OMRON | TOUCH SCREEN | Taiwan WEINVIEW |
| Sensor | KOREA AUTONICS | GUIDE | Taiwan TBI |
