Product Details:
|
| Name: | Spacer Bending Machine | Max Bending Size: | 2500*4000 Mm |
|---|---|---|---|
| Min Bending Size: | 150*300 Mm | Aluminum Spacer Width: | 5.5-26.5 Mm |
| Spacer Racks: | 4 | Voltage: | 380V 50Hz(Customizable) |
| Dimension: | 10500 *2200*2600 Mm | Weight: | 1580kg |
| High Light: | 4 Racks Automatic Spacer Bending Machine,LJZW2020 Spacer Bending Machine,380V 50Hz Spacer Bending Machine |
||

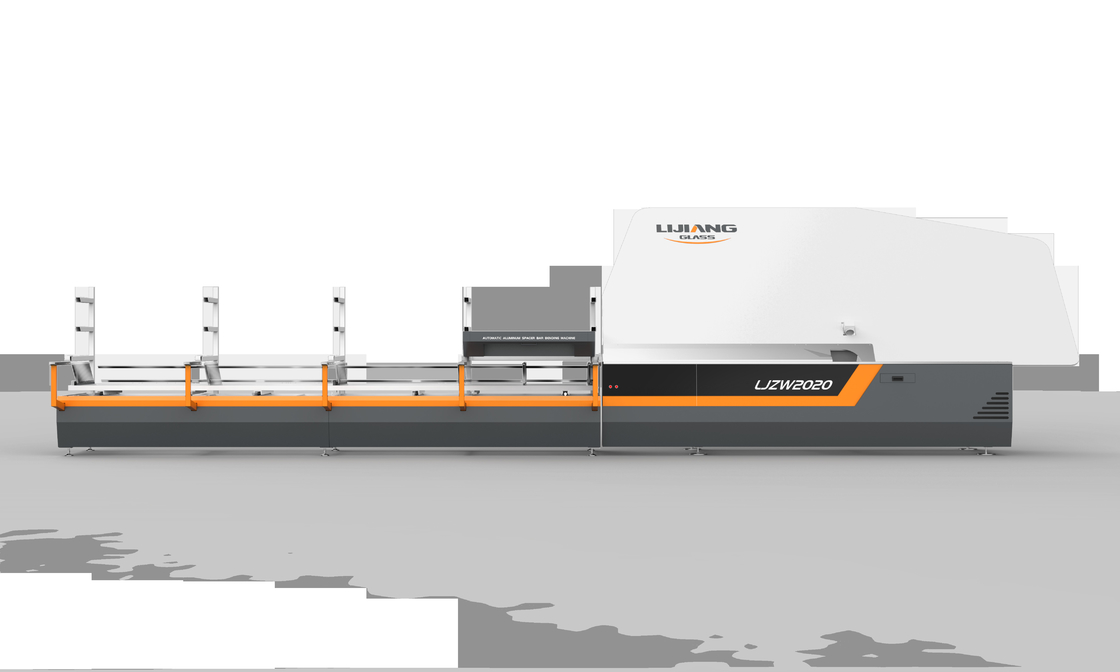

Automatic Spacer Bending Machine LJZW2020
Main feature of Automatic Spacer Bending Machine
• Siemens 1200 PLC control system with fast working speed
• 4 groups of storage
• Automatically cut and feed aluminum spacers
• Automatically avoid the pins while bending and cutting
• Bend spacer frames continuously
• Aluminum spacers are available in sizes of 6A-27A
• Different bending tools for different sizes of spacers
• Pause and Reset device for handling equipment failures
• Bend aluminum spacer, smooth stainless steel, warm spacer • Connect to ERP system (Optional) • USB input function, read the excel format file directly
• Automatically drill holes for filling argon gas (Optional)
• Spacer printing code function (Optional)
• Printing label sticker function (Optional)
• Bending shape frame. Using circle wheel device to bend circle frame or frame with circle corners. Min R60, Max R150, spacer sizes: 6A – 16A). Different sizes of aluminum bars require different size tools(Optional)
Details introduce of Automatic Aluminum Spacer Bending Machine
• Printing logo (Option)
• Printing label sticker function (Optional)
• Bending warm spacer (Optional)
Technical data of Automatic Spacer Bar Bending
| Max. bending size | 2000mm*2000mm |
| Min. bending size | 250mm*200mm |
| Aluminum spacer width | 5.5-27mm |
| Dimensional error | ±0.5mm |
| Angle error | ±1º |
| Processing speed | 17s |
| Air supply | ≥0.65MPa |
| Total power | AC220/380V 50Hz 2.5KW |
| Dimension | 10500mm*2200mm*2600mm |
Electrical parameters
| NAME | ORIGIN | BRAND |
| PLC | Germany | SIEMENS |
| Servo driver | Germany | SIEMENS |
| Servo motor | Germany | SIEMENS |
| Low voltage component | Germany | SIEMENS |
| Triplet | Taiwan | AIRTAC |
| Cylinder | Taiwan | AIRTAC |
| Relay | Japan | OMRON |
| Sensor | KOREA | AUTONICS |
| Touch screen | Taiwan | WEINVIEW |
| Guide | Taiwan | TBI |
| Solenoid valve | Taiwan | AIRTAC |
| Switch power | Taiwan | TEND |
