Automatic Aluminum Spacer Bending Machine LJZW2020

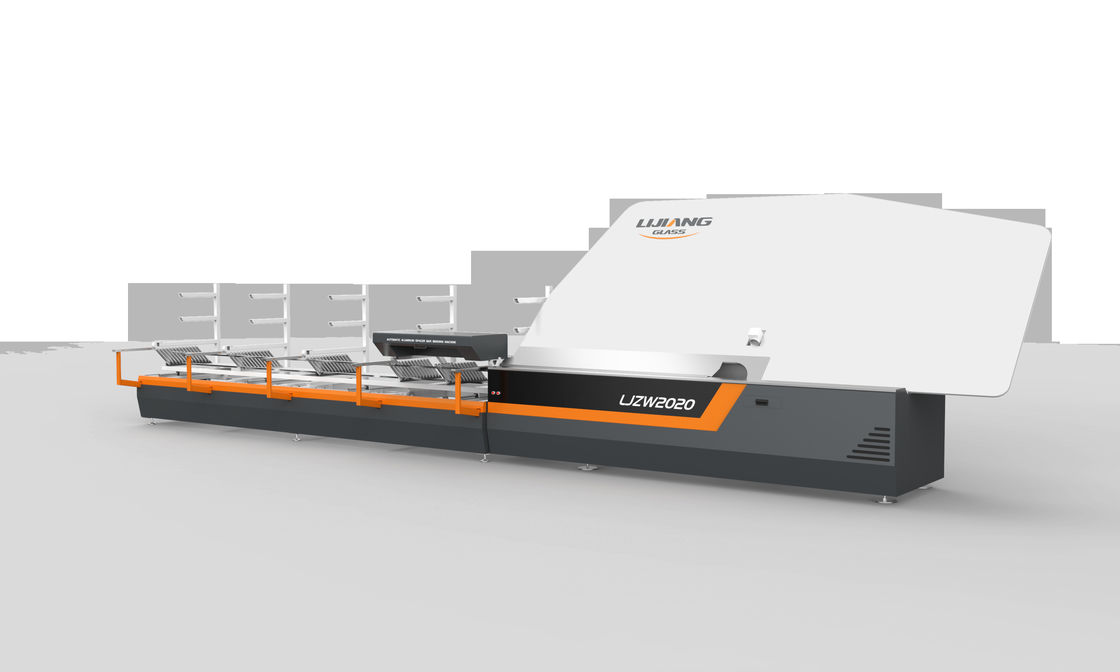

Large Image : Automatic Aluminum Spacer Bending Machine LJZW2020

Product Details:

Place of Origin:	China
Brand Name:	Lijiang glass
Certification:	CE
Model Number:	LJZW2020

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Container
Delivery Time:	45 days
Payment Terms:	L/C, T/T
Supply Ability:	20 sets/month

Contact Now

Automatic Aluminum Spacer Bending Machine LJZW2020

Description

Product Name:	Automatic Aluminum Spacer Bending Machine LJZW2020	Max. Bending Size:	2500*2500mm
Aluminum Spacer Width:	5.5-27mm	Dimensional Error:	±0.5mm
Angle Error:	±1º	Processing Speed:	≤26s
Air Supply:	≥0.65MPa	Total Power:	415V 50Hz 2.5KW
Dimension:	10500mm2200mm2600mm

Main feature

1*1m spacer frame was bent within 20s
The error of spacer frame angle is within 1°,Size error within 1mm
Can bend aluminum spacer /technoform /Alupro /thermix/
Spacer automatically connect and cut.
Machine automatically stops when the spacer is used up.
Support continuous bending , automatically avoid spacer connection while bending and cutting
Automatically connect the spacer -connector
Remote control function
USB input function ,it can read the excel data directly
Spare parts of all machines have ID codes ,convenient for after-sale service
Heavy duty connectors ,convenience and safety for installation and debugging
Magnetic valve use Taiwan Airtac
German Siemens plc control system
Japan Fuji servo control system
12 storage spacer units (option)
Swisspacer/ Stainless Steel /All metal Stainless Steel /option)

(Stainless steel and warm edge spacer can not exist at one time )

Drill hole for gas filling(option)
Spacer inkjet printing ,various colors are available for company logo or production date(option)
Laber printing (option)
Scanner scan two-dimension code ,bar code (option)
Separate Pressing Wheel for arc frame, more accurate than the bending tool
Especially for Hexagon and Octagon frame (optional )
ERP (optional)

Automatic Aluminum Spacer Bending Machine LJZW2020 0

Automatic laser printing Printing label Bending stainless steel spacer Bending warm edge spacer

Notes: When bending the arc-shaped aluminum frame, the cutter head needs to be replaced for each size, and the cutter head needs to be customized.

Technical data

Max. bending size	2500*2500mm
Min. bending size	250mm*150mm
Aluminum spacer width	5.5-27mm
Dimensional error	±0.5mm
Angle error	±1º
Processing speed	≤26s
Air supply	≥0.65MPa
Total power	415V 50Hz 2.5KW
Dimension	10500mm2200mm2600mm

Electrical parameters

NAME	BRAND
PLC	GERMAN SIEMENS
Low voltage electrical apparatus	GERMAN SIEMENS
Servo motor	GERMAN SIEMENS
Servo driver	GERMAN SIEMENS
Relay	JAPAN OMRON
Triplet	Taiwan AIRTAC
Cylinder	Taiwan AIRTAC
TOUCH SCREEN	Taiwan WEINVIEW
Switch power	Taiwan TEND
GUIDE	Taiwan TBI
Solenoid valve	Taiwan AIRTAC
Sensor	KOREA AUTONICS
