Product Details:
|
| Name: | Sealing Robot | Modle: | LJTJ2540 |
|---|---|---|---|
| Working Speed: | 5-40m/min | Certificate: | CE |
| Brand: | Lijiang | Country Of Origin: | Jinan |
| High Light: | 40m/min Insulating Glass Sealing Robot,2500x4000 Mm Insulating Glass Sealing Robot,2500x4000 Mm IG Line |
||
top sell good quality Sealing Robot Match To 2500x4000 Mm IG Line
Automatic Sealing robot for Double glass triple glass stepped glass

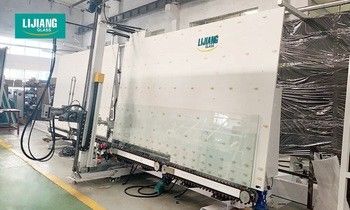

Vertical Insulating Glass Sealing Robot
LJTJ2540
LJTJ2540 is the latest fully automatic vertical insulating glass sealing robot. It is used to mix components A and B in a certain proportion to coat double-layer glass.
Suitable for double/triple/special-shaped and stepped glasses (optional), stable performance and easy operation.
Detail Images
Ø Single Glue System
Equipped with single A component and single B component.
Ø Double Glue Systems
Equipped with two sets of A-components and two sets of B-components, it can be used for two kinds of sealants: silicone rubber, polysulfide rubber and silicone structural adhesive.
Ø Reback Glue Device
When the pressure increasing, more Glue B will flow back automatically, saving materials.
Ø Dyad Body Device
The dyad body device has two functions
The left one is used for filtering impurities and moisture when filling gas into
then the right one plays the role of lubrication.
Ø Two Suckers Device
Adopting two suckers for preventing to move glass during sealing.

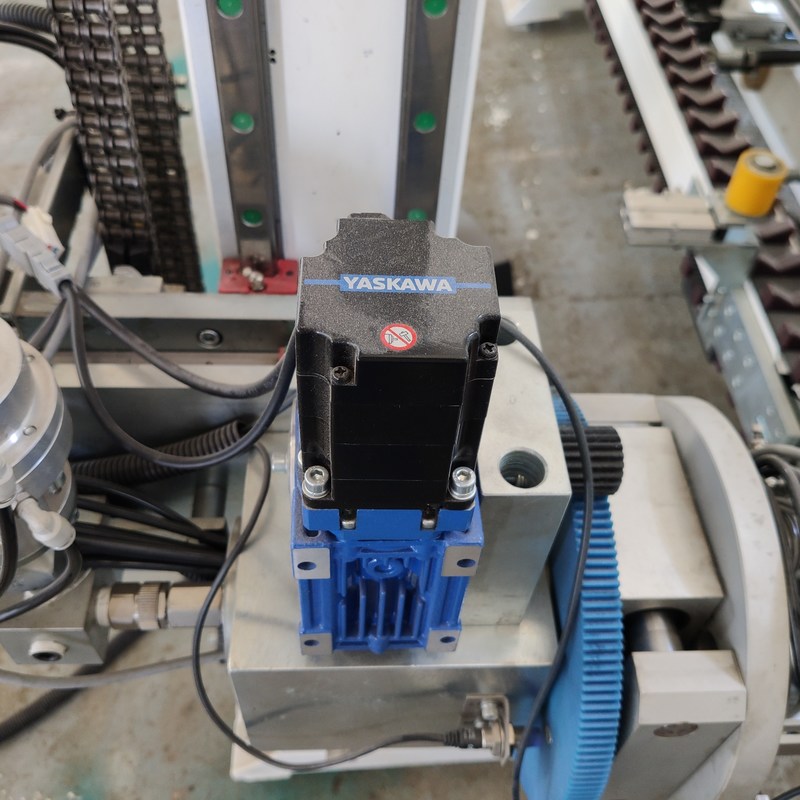

Ø The Device of Sealing Part
Adopt Japan YASKAWA servo motor to control the sealing part with 360°rotating. Setting scraper blade to scrape out extra glue and no need to repair glass corners by second time.
Ø Intelligent Sensor
Automatically recognize the glass, allowing to adjust the coating speed online.
Ø Storage Function
It can store three pieces of insulating glasses on the three belts when their size are less than 1.8m.
Ø Timing belt
The time belt device ensure that glass can be smooth transmission and located accurately.
Ø Step glass (optional)
Step glass can be plated once, no need for secondary repair.
Ø Equipped with manual device
Each individual section comes with manual operation for easy adjustment just in case.
Ø Eight servos
The robot uses eight YASKAWA servos,
Four of them control the transmission part,
Of the other four servos, they control the suction cups,
Lifting, driving, flipping mechanism and rotation.
Ø Main electrical components
The main electrical components are all well-known brands with more stable performance, including drivers, PLCs, input and output modules, etc.
Ø Special-shaped glass and three-in-one function (optional)
With the development of new technology, the sealing robot can coat the figure-8 glass according to the glass market.
Technical data
| Max.glass size | 2000*2500mm | 2000*2500mm |
| 2500*3500mm | 2500*4500mm | |
| Min.glass size | 2000*2500mm | 170*400mm |
| 2500*3500mm | 300*400mm | |
| Glass thickness | 12-56mm | |
| Working speed | 5-40m/min | |
| Air pressure | 0.6-0.8MPa | |
| Squeeze pressure | <350kg/m³ | |
| Plane angle | 6°- 9° | |
| Max glass weight | 400kg | |
| Voltage power | 380V 12kw | |
| Overall dimension | 8700mm*2000mm*3500mm | |
| Max.glass size | 2500*4000mm | |
| Min.glass size | 300*300mm | |
| Glass thickness | 12-56mm | |
| Working speed | 5-40m/min | |
| Air pressure | 0.6-0.8MPa | |
| Squeeze pressure | <350kg/m³ | |
| Plane angle | 6°- 9° | |
| Max glass weight | 400kg | |
| Voltage power | 380V 12kw | |
| Overall dimension | 8700mm*2000mm*3500mm | |
| Name | Brand |
| Servo motor | Japan YASKAWA |
| I/O model | Japan MSYSTEM |
| Lower voltage component | Japan SCHEIDER |
| CPU | Japan YASKAWA |
| Frequency converter | Japan OMRON |
| Switching power supply | Taiwan MW |
| Pneumatic component | Japan SMC |
| Touch screen | Taiwan WENVIEW |
| Guideway | Taiwan HIWIN |
