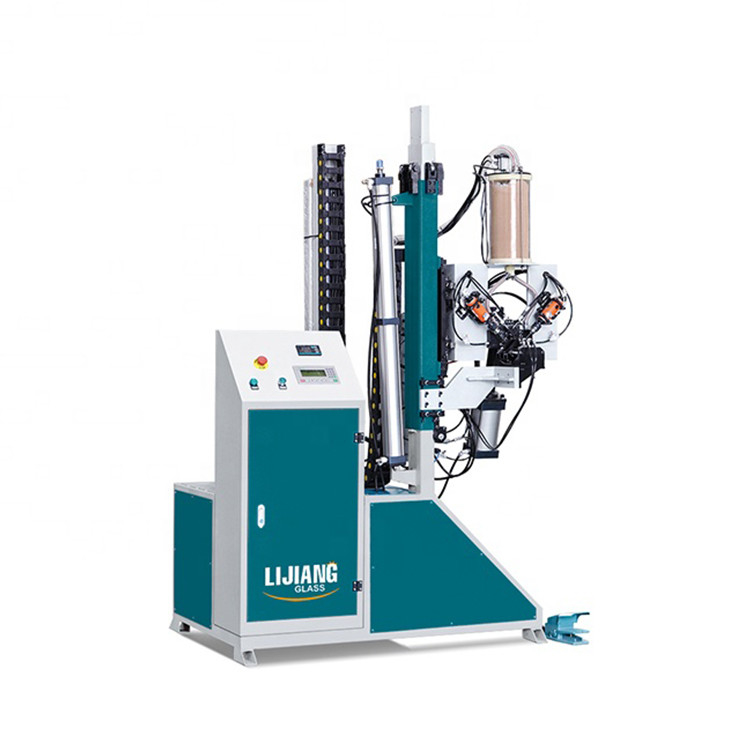

Automatic Desiccant Filling Machine Molecular Sieve For Double Glazing

Automatic Desiccant Filling Machine Molecular Sieve For Double Glazing

Molecular Sieve Automatic Desiccant Filling Machine

Double Glazing Automatic Desiccant Filling Machine

Desiccant Filling Machine PLC Controlled

Place of Origin:

China

Brand Name:

LIijiang Glass

Certification:

CE

Model Number:

LJGZ2020

Contact Us
Request A Quote
Automatic Desiccant Filling Machine Molecular Sieve For Double Glazing Automatic Desiccant Filling Machine Molecular Sieve For Double Glazing Automatic Desiccant Filling Machine Molecular Sieve For Double Glazing Automatic Desiccant Filling Machine Molecular Sieve For Double Glazing
Product Details
Dimension(L*W*H):
1300mm*1200mm*1600mm
Max Glass Size:
2500*2500mm
Power Supply::
220V 50HZ 1KW
Air Source:
≥0.65MPa
Power Supply And Power Consumption:
AC220V 50Hz 1.8Kw
Highlight:

Molecular Sieve Automatic Desiccant Filling Machine

,

Double Glazing Automatic Desiccant Filling Machine

,

Desiccant Filling Machine PLC Controlled

Payment & Shipping Terms
Minimum Order Quantity
1
Price
USD 6000.00 - 7000.00
Packaging Details
Container/wooden box
Delivery Time
45 days
Payment Terms
L/C, T/T
Supply Ability
50sets/month
RELATED PRODUCTS
Good price Automatic Aluminum Spacer Bending Machine online

Automatic Aluminum Spacer Bending Machine

Get Best Price
Good price Automatic Aluminum Spacer Bending Machine LJZW2020 online

Automatic Aluminum Spacer Bending Machine LJZW2020

Get Best Price
Good price 4 Racks Automatic Spacer Bending Machine LJZW2020 online Video

4 Racks Automatic Spacer Bending Machine LJZW2020

Get Best Price
Good price High Speed Insulating Glass Gasket Bending Machine For Insulating Glass Processing online

High Speed Insulating Glass Gasket Bending Machine For Insulating Glass Processing

Get Best Price
CONTACT US
Contact Now
Product Description
Automatic Desiccant Filling Machine Molecular Sieve Filling Machinery For Double Glazing Hollow Glasing Hot Sale On Marc

Title goes here.
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for
producing PET plastic containers and bottles in all shapes.

Benefits & Advantages

1. The machine height of can be adjusted according to the size of spacer frame 2. The machine time could be adjusted 3. The machine adopts auto loading and replenish 4. The machine adopts auto drilling, filling and sealing function 5. It use Germany Siemens PLC control system 6. The touching screen interface, simple and visible 8.It adopts vacuum pump loading device ,increase the loading speed 9. The desiccant filling machine could use big bucket desiccant ,save desiccant refill time, improve the work efficiency.
Automatic Desiccant Filling Machine Molecular Sieve For Double Glazing 0
Automatic Desiccant Filling Machine Molecular Sieve For Double Glazing 1
Automatic Desiccant Filling Machine Molecular Sieve For Double Glazing 2
Advantages & Features
Automatic Desiccant Filling Machine Molecular Sieve For Double Glazing 3
Automatic Desiccant Filling Machine Molecular Sieve For Double Glazing 4
Automatic Desiccant Filling Machine Molecular Sieve For Double Glazing 5
Automatic Desiccant Filling Machine Molecular Sieve For Double Glazing 6
Automatic Desiccant Filling Machine Molecular Sieve For Double Glazing 7
Automatic Desiccant Filling Machine Molecular Sieve For Double Glazing 8
Automatic Desiccant Filling Machine Molecular Sieve For Double Glazing 9





Automatic Desiccant Filling Machine Molecular Sieve For Double Glazing 10



The Unique ID Code Number
All the electrical wires of the machine parts, have the unique ID code number, it could match with specification, also it will be make it easy for the communication with customers in the after sales service on furture.
Automatic Desiccant Filling Machine Molecular Sieve For Double Glazing 11




The Touching Screen Interface
The touching screen interface, which the parts of machine, is simple and visible; and also, the filling time could be adjusted according to the size of spacer frame in the touch screen.
Automatic Desiccant Filling Machine Molecular Sieve For Double Glazing 12




The Materials Bucket
The desiccant filling automatically loading from the materials bucket. (When the material was used up the sensor will alarming, desiccant will automatically loading.)
Automatic Desiccant Filling Machine Molecular Sieve For Double Glazing 13




The Electrical Component
The electrical component are all Germany Brand-Siemens, which is adopt internationally renowned brands to ensure the stability of the equipment.
Above information is the Benefits&Advantages from Jinan LIJIANG Glass.
If customers want to know more advantages, please contact us directly.
Main Technical Parameter
Item.
Spec.
Filling aluminum frame’s maximum size
2500mm*2500mm
Filling aluminum frame’s minimal size
300mm*250mm
Aluminum specifications
5.5-24mm
Air source
≥0.65MPa
Power supply and power consumption
AC220V 50Hz 1.8Kw

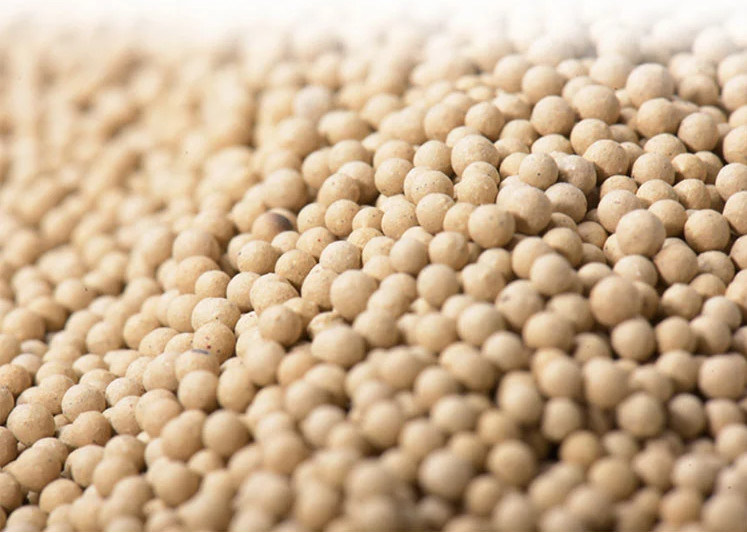

Molecular sieve diameter needed
0.5-0.9mm
Dimension
1300mm*1100mm*3650mm
Name
Brand
PLC
Germany SIEMENS
Triplet
TAIWAN AIRTAC
Low voltage electrical apparatus
Germany SIEMENS
Solenoid valve
TAIWAN AIRTAC
Sensor
Korea AUTONICS
Gas driller
Taiwan BOA
Guide
Taiwan TBI
Switch power
Taiwan TEND
Above information is the Specification. from Jinan LIJIANG Glass Standards.
If customers want to know more details of Spec., please let us know.
