Product Details:
|
| NAME: | AUTOMATIC SPACER BENDING MACHINE | SPACER TYPE: | WARM EDGE SPACER / ALUMINIUM SPACER / STAINLESS STEEL |
|---|---|---|---|
| BRAND: | JINAN LIJIANG AUTOMATION EQUIPMENT CO.,LTD | SPACER SIZE: | 2000MM*2000MM / OVER THAT |
| SPACER WIDTH: | 5.5MM - 26.5MM | SPACER RACKS: | 4 GROUPS |
| TOTAL POWER: | 2.5 KW | DIMENSION: | 10500MM*2200MM*2600MM |
| High Light: | Insulating Glass Automatic Spacer Bending Machine,4 Groups Automatic Spacer Bending Machine |
||

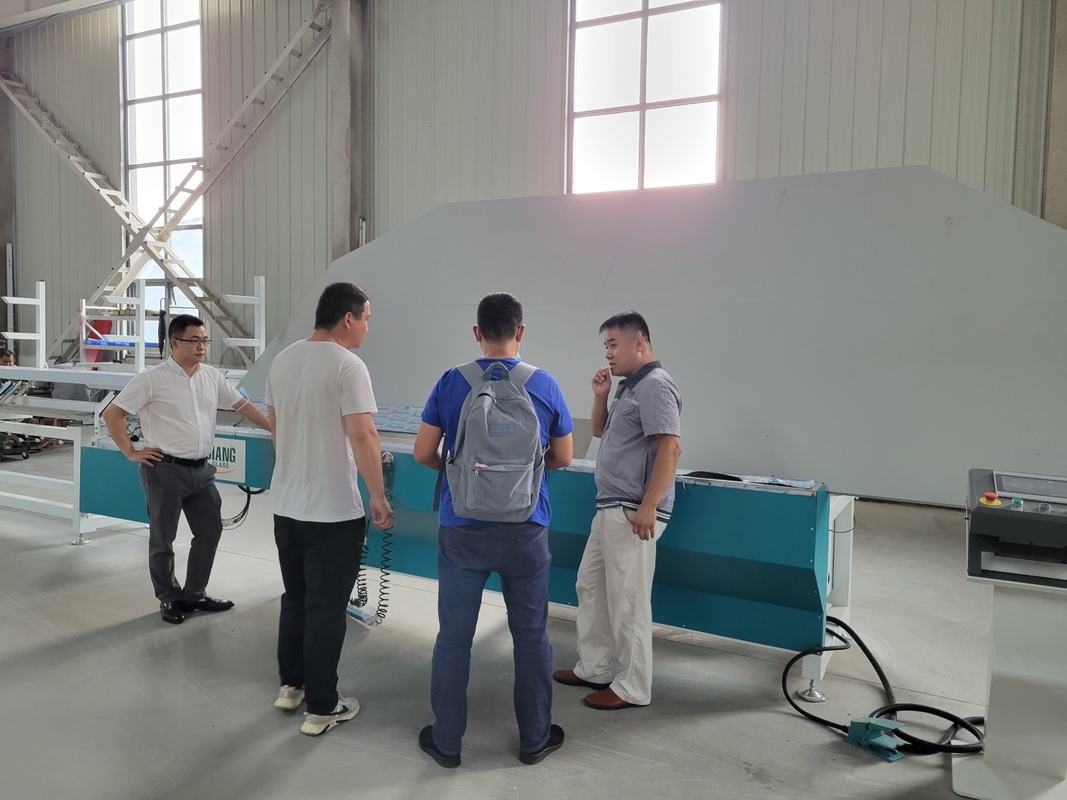

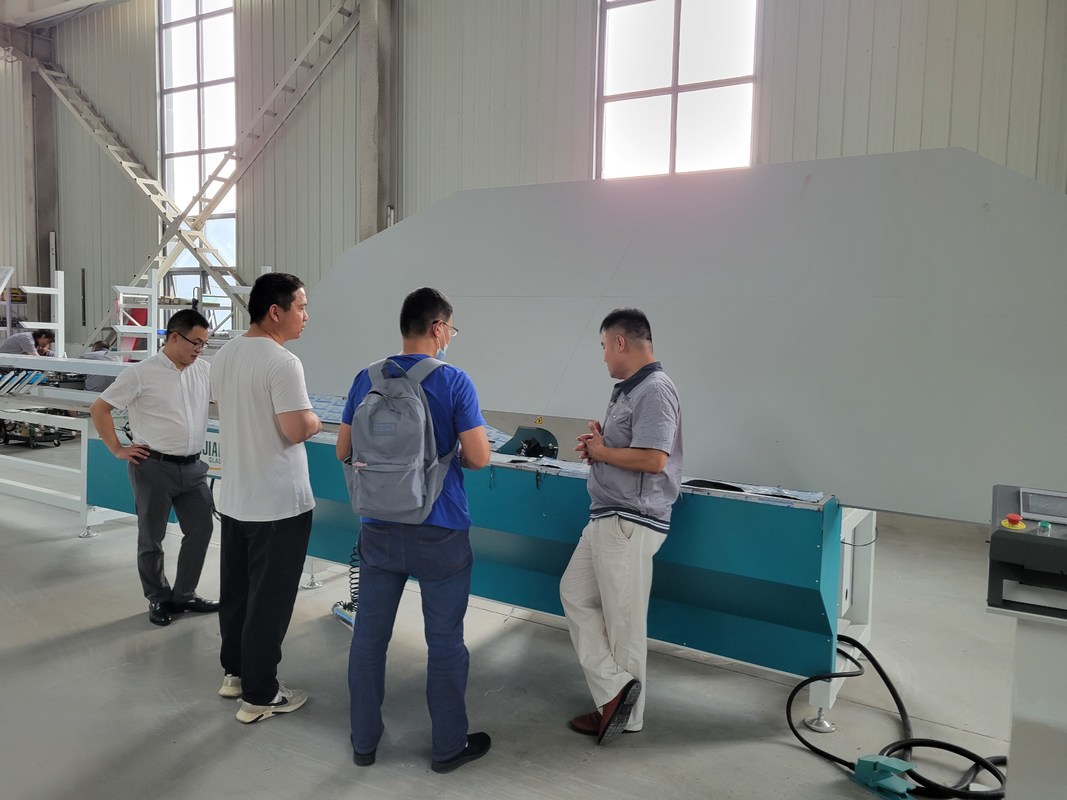

Automatic Aluminum Spacer Bar Bending Machine for Insulating Glass Processing
Automatic Aluminum Spacer bending machine is used to bend the divider frame for the inner part of the Insulating glass, the divider can use aluminum divider, stainless steel divider and warm edge divider. The machine can read the dates from the computer directly to the office. There are eight different forms of dividers available. Using the PLC to control it.
Main feature of Aluminum spacer bending machine
• Aluminum spacers are available in sizes 6A-27A
• Siemens 1200 PLC control system, working fast
• 4 banks of storage
• Automatic cutting and feeding of aluminum spacers
• Automatically avoid pins when bending and cutting
• Continuously curved spacer frame
• Different bending tools are used for different size shims
• Pause and reset mechanism for handling equipment failures
• Curved aluminum spacers, smooth stainless steel, warm edge spacers
• USB input function, directly read excel format files
• Connect to ERP system (optional)
• Automatic drilling with argon filling (optional)
• Interval printing code function (optional)
• Print label sticker function (optional)
• Curved shape frame. Bend round or rounded corners with the round wheel device. R60 min, R150 max, gasket size: 6A – 16A). Different size aluminum bars require different size tools (optional)
Technical data of Aluminum spacer bender
| Max. bending size | 2000mm*2000mm |
| Min. bending size | 250mm*200mm |
| Aluminum spacer width | 5.5-27mm |
| Dimensional error | ±0.5mm |
| Angle error | ±1º |
| Processing speed | 17s |
| Air supply | ≥0.65MPa |
| Total power | AC220/380V 50Hz 2.5KW |
| Dimension | 10500mm*2200mm*2600mm |
Electrical parameters
| NAME | ORIGIN | BRAND |
| PLC | Germany | SIEMENS |
| Servo driver | Germany | SIEMENS |
| Servo motor | Germany | SIEMENS |
| Low voltage component | Germany | SIEMENS |
| Triplet | Taiwan | AIRTAC |
| Cylinder | Taiwan | AIRTAC |
| Relay | Japan | OMRON |
| Sensor | KOREA | AUTONICS |
| Touch screen | Taiwan | WEINVIEW |
| Guide | Taiwan | TBI |
| Solenoid valve | Taiwan | AIRTAC |
| Switch power | Taiwan | TEND |
