Name: Vacuum Lifting Equipment Glass Suction Cup For Tower Crane
Brand: Jinan Lijiang Automation Equipment Co., Ltd.
SKU: LJXP300
Price: 35000 USD
Availability: InStock

Home > Products > Vacuum Hoist Lifting Systems >

Vacuum Lifting Equipment Glass Suction Cup For Tower Crane

400kgs Vacuum Lifting Equipment

Tower Crane Vacuum Lifting Equipment

Electric Vacuum Hoist Lifting Systems

Place of Origin:

Jinan

Brand Name:

Lijiang

Certification:

Model Number:

LJXP300

Request A Quote

Product Details

Product Name:

Lifting Equipment

After-sales Service Provided:

Engineers Available To Service Machinery Overseas

Warranty:

1 Year

Application:

Tower Crane

Power Source:

Electric

Weight:

200kg

Highlight:

400kgs Vacuum Lifting Equipment

Tower Crane Vacuum Lifting Equipment

Electric Vacuum Hoist Lifting Systems

Payment & Shipping Terms

Minimum Order Quantity

1 SET

Price

35000 USD/SET

Packaging Details

Wooden box

Delivery Time

10 days

Payment Terms

L/C, T/T, Western Union

Supply Ability

30 SETS/MONTH

Cantilever Vacuum Glass Lifting Machine Manual Slide Method

Get Best Price

Four Suckers Glass Crane With Four Meters Length And Five Meters Height

Get Best Price

8 Suction cup Glass Suction Lifter For Handling Glass Sheet

Get Best Price

2 Or 4 Suckers Glass Vacuum Lifter 300kg / 500kg Load

Get Best Price

Contact Now

Product Description

Vacuum Lifting Equipment Glass Curtain Wall Vacuum Glass Suction Cup Lifter

Glass Lifter Powerful Vacuum Hoist for Carrying 400kgs 600kgs 800kgs Plate Glass Vacuum Suction Cup Spreader for Curtain Wall Installation

Product Description

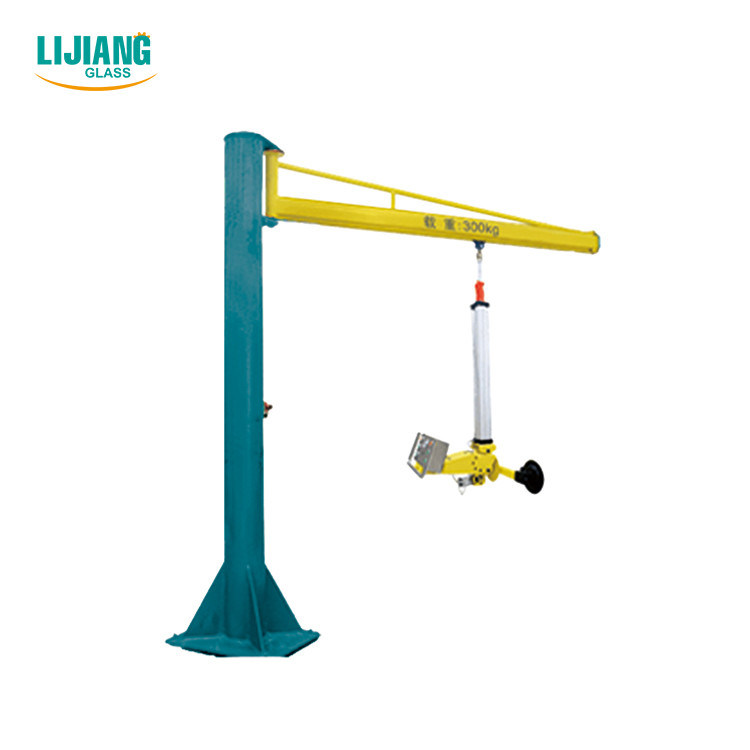

The Vacuum Hoist Glass Lifter Lading Cantilever Crane Equipment

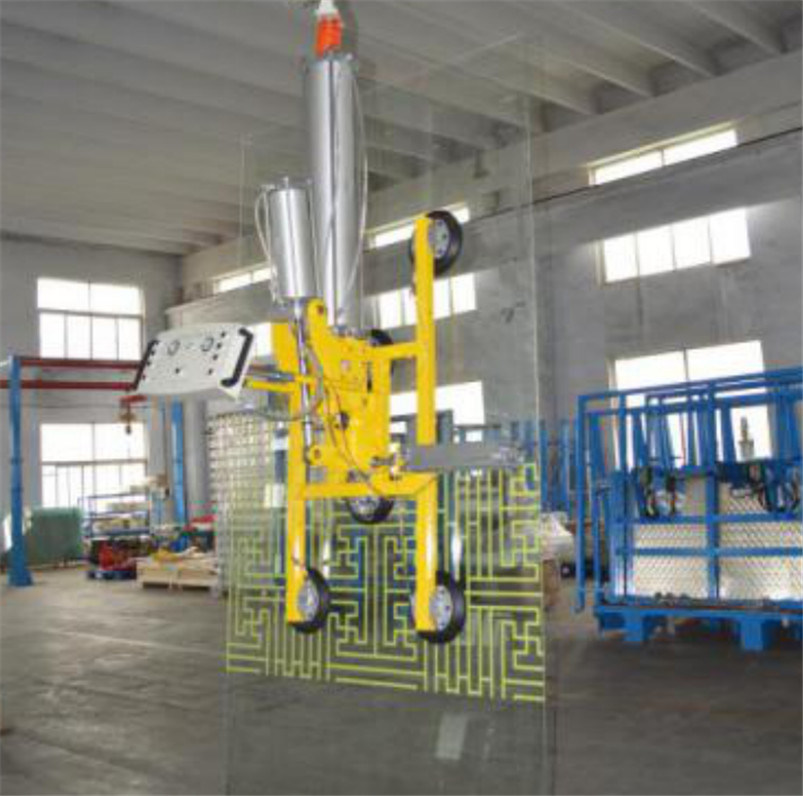

The vacuum hoist is suitable for smooth surfaces such as glass, ceramics, stone, and plates. The three-layer sealing ring has good sealing performance and soft texture. Double system control, barometer and air pump, stable quality, and high performance. Use vacuum chuck and drive system to handle, move and rotate. DC rechargeable vacuum pump can be used for on-site construction, equipped with battery device, the maximum bearing capacity can reach 800kgs. The pneumatic components adopt Taiwan Airtac, the quality is stable, and the pneumatic pressure is 0.6-0.8Mpa. The glass can be turned and transported at 0-90 degrees. The glass can be turned over and transported at 0-180 degrees. The glass can be turned and transported at 0-360 degrees. Dimensions: Height: 3400mm, Arm length: 3000mm.

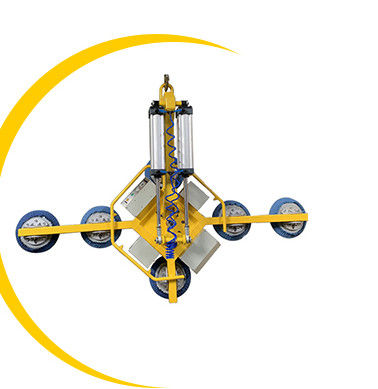

4 cups of glass suction lifter

Load-bearing 400kg, Equipment weight 70kg, Length 0.75m Width 0.85m

6 cups of glass suction lifter

Load-bearing 600kg, Equipment weight 90kg Length 1.8m Width 0.9m

8 cups of glass suction lifter

Load-bearing 800kg, Equipment weight 100kg Length 1.76m Width 1.46m

Specification

Item.	Spec.
Safety-absorption	200KG/400kg/600kg/800kg
Performance	Rotation 0-270 degree and lifting 600-1200mm
Quantity and size of sucker	2/4/6/8/12
Working gas source	5-8 Pa
Voltage	DC12V (Built-in 2 batteries for long battery life)
Battery life	It can be used for 3 to 5 days after charging once.(In addition, it can also be connected to the power supply.)
Single suction cup loading	The actual test weighs up to 150kg or more
Length dimension	Control cabinet: 0.3m; Suckers: Optional 1-5m
Width dimension	Suckers: Optional 1-1.5m
Outer size	L1120mmW660mmH620mm

Benefits & Advantages

1. The vacuum electric suction cup is used for the handling and installation of curtain wall glass and is generally used with cranes and hoisting trucks. 2. Two batteries are 12V DC (one of them is spare) 3. Charger: 110V / 240V /380V 50HZ / 60HZ, optional single-phase delivery 4. The carrying capacity of the electric suction cup for the curtain wall is 400kgs/600kgs/800kgs (three models are optional) 5. According to process requirements, a power mechanism can be added to realize the function of 90°-180° flip/rotation of the workpiece. The control method can be manual control/electric control/remote control/automatic control. It can also be used as a manipulator and robot execution module to realize automatic and intelligent handling. 6. The equipment assembly is equipped with overseas imported vacuum pumps, valves, switches, and some important spare parts. Including optional American Thomas vacuum pump or Harmony vacuum pump, original imported CSB battery, Japanese SMC one-way valve, optional imported silicone suction cup, pneumatic components using Taiwan Airtac, etc. 7. Stable performance, easy to maintain, fast and simple. 8. There are suction cups made of silica gel (oil-resistant, slip-resistant, corrosion-resistant; nitrile rubber suction cups can be selected according to actual needs, with stronger adsorption), which can form vacuum suction with the glass contact surface to generate vacuum 9. Adopt negative pressure safe vacuum air circuit, negative pressure digital display, compared with traditional instrument display, the sensitivity is increased by 30%, and the display is more intuitive 10. The suction cup can be adjusted and can be closed and opened separately. 11. The vacuum lifter is equipped with a buzzer and warning light device. In the case of power failure or vacuum leakage, optical and acoustic signals will respond to tell the operator to carry out emergency operations. 12. The vacuum lifter is equipped with a tank and pressure switch display, when the power is suddenly turned off, it can keep the workpiece from falling for 30 minutes. 13. There are 4 telescopic arms (optional), 4 suction pads with a diameter of 300mm, each suction cup can be moved on the beam, each suction cup can be closed by a separate ball valve, each suction cup can take off if The glass plates that customers want to process are small and can be operated as well. The same equipment can also process glass plates of different sizes. 14. The design of Jinan Kation vacuum cleaners has passed the European Union CE 13155 certification, and they are all CE-identified products

The whole steel material shell design

Fully enclosed shell design, using Q345 manganese steel material, square tube welding, strong load-bearing capacity, safe and reliable, can be widely used in glass deep processing and transportation and glass curtain wall installation.

Adopts the imported vacuum pump

It can be equipped with American Thomas vacuum pump or imported brand Harmony vacuum pump, and imported CSB battery can be selected. The battery is energy storage and maintenance-free. There is no need to connect to a power supply during the glass deep processing.

The vacuum pressure compensation system

The equipment is equipped with a vacuum pressure compensation system, which can ensure that the entire vacuum system is maintained at a relatively constant safe pressure value during the glass handling process, and the use process is more safer than other suppliers.

Equipped the pressure-maintaining function

The equipment is equipped with power-off device, pressure-keeping device and alarm device. After an unexpected power-off, the pressure-maintaining function can extend the emergency processing time and sound the alarm at the first time to ensure the safety and reliability of the use process.

Equipped the digital display function

Optional Japanese imported digital display vacuum pressure switch, and digital display battery gauge, which could clearly and intuitively monitor the use of the glass lifter equipment.
