Product Details:
|
| Production Name: | Glass Lifting Machine | Glass Weight: | 360kg |
|---|---|---|---|
| Glass Suckers: | 4 Pieces | Brand: | LIJIANG GLASS |
| Warranty: | 1 Year | Voltage: | 220 V |
| High Light: | Four Suckers Glass Crane,Four Suckers Glass Lifting Machine,360kg Glass Lifting Machine |
||

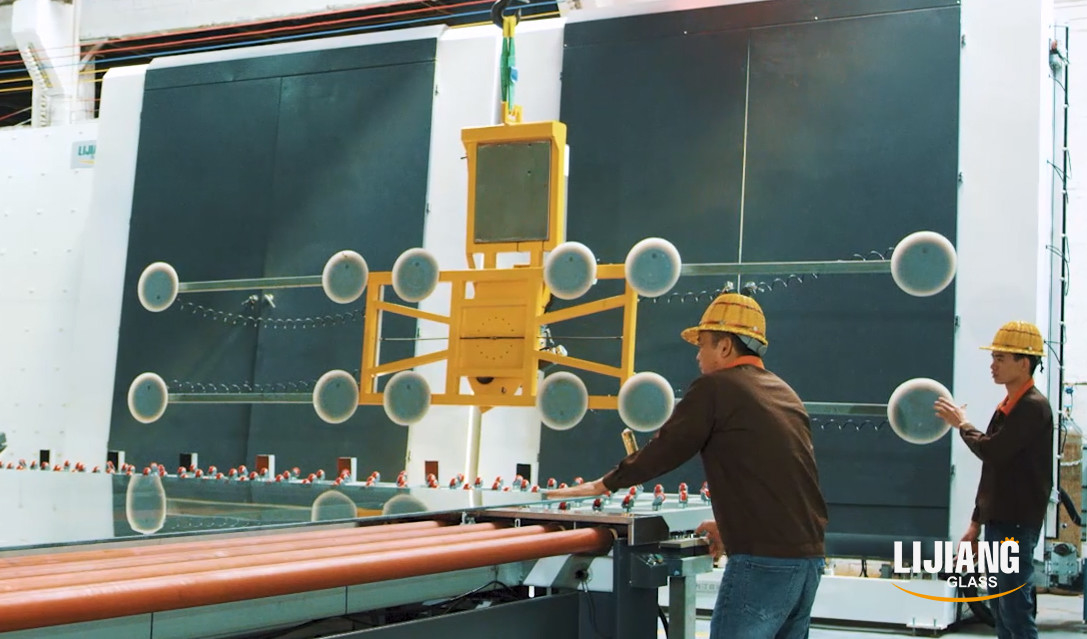

Four Suckers Glass Crane Glass Lifter With Four Meters Length And Five Meters Height
1. Function description of glass lifter devices
The glass suction cup crane adopts an intelligent control system and has a super sound and light alarm device.
Without any cables, it's powered by two extra-large batteries with a real-time charge display.
Power saving, a single battery can be used for 3-5 days, and the charging voltage is 220V.
The glass loader adopts the Thomas DC oil-free vacuum pump imported from the United States, which has super suction and is safe and reliable.
The glass lifting machine can realize 0-90° rotary handling (special labor-saving device, easy to operate).
The glass crane can realize 0-360 degree rotation and handling (special labor-saving device, easy to operate).
When the vacuum pressure is insufficient, an audible and visual alarm will be issued, and the air will be replenished automatically and efficiently (only takes 1.5 seconds).
The rack adopts a combined design, the position of the suction cup can be adjusted, and the manual closing can be done.
Suction cup adjustment does not require any tools and hands to change the rack style.
High-precision pressure detection, high-sealed vacuum gas tank to ensure safety
and reliability.
The unique power-off protection system can maintain the pressure for more than 20 minutes after power-off. The precision of vacuum pressure digital display is more than 50% higher than that of traditional pointer pressure gauges.
Parameters of glass lifter machine :
|
Parameter configuration |
Parameter configuration | Parameter configuration | Parameter configuration |
| load KG | 400KG | 600KG | 800KG |
| Model | DP-X4P | DP-X6P | DP-X8P |
| Dead weight KG | 70KG | 90KG | 100KG |
|
Minimum dimension
|
0.85×0.75×0.3M | 1.5×1.15×03M | 1.5×1.15×0.3M |
|
Maximum dimension
|
1.2×0.9×0.3M | 1.8×1.0×0.3M | 2.5×1.0×0.3M |
| Suction cup size mm | (unified standard suction cup size, each equipment can be used generally) | ||
| Single suction cup bearing KG |
100kg (the actual test load can reach more than 180kg) |
||
| Rotation function | 360 ° manual rotation (special labor-saving device, safe and reliable, easy to operate) | ||
| reverse scan | 90 ° manual turning (humanized design, automatic balance, fast and labor-saving) | ||
| Voltage DC | DC12V(built in 2 extra long battery life) | ||
| Endurance | It can be used for 3-5 days for one charge, and two batteries can be used alternately | ||
| Extension bar MM | 500mm (single side length, special glass specification can be customized) | ||
| Control system | Wired remote control suction and discharge | ||
| Customizable | Note: it can be customized according to your specific process requirements, workpiece size and weight. | ||
| Weight standard |
Conventional glass weight = length × width × thickness × glass density 2.5 ÷ 1000 000 = glass weight 3660×2440×19×2.5÷1000 000=424KG |
||
|
safety factor
|
According to the European CE safety regulations on lifting equipment and the German accident prevention regulations uvv 18 and VBG 9a, the best safety factor of the vacuum sling is 2.0, for example, the single suction of fsrl280 suction cup is 3139n, divided by the safety factor of 2.0, the load is 1570n | ||
