Product Details:
|
| Name: | Glass Cantilever Crane | Advantage: | With Lifting Sucker |
|---|---|---|---|
| Per-Pad: | 100KG | Max Lifting Weight: | 800KG |
| Lifter Weight: | 140KG | Vacuum Pads: | Six Of Silica Gel |
| High Light: | Handling Glass Suction Lifter,800KG Loading Glass Suction Lifter,Glass Cantilever Crane |
||
Glass Suction Lifter for Handling Glass Sheet
Description of Glass Cantilever Crane with eight Suction cup

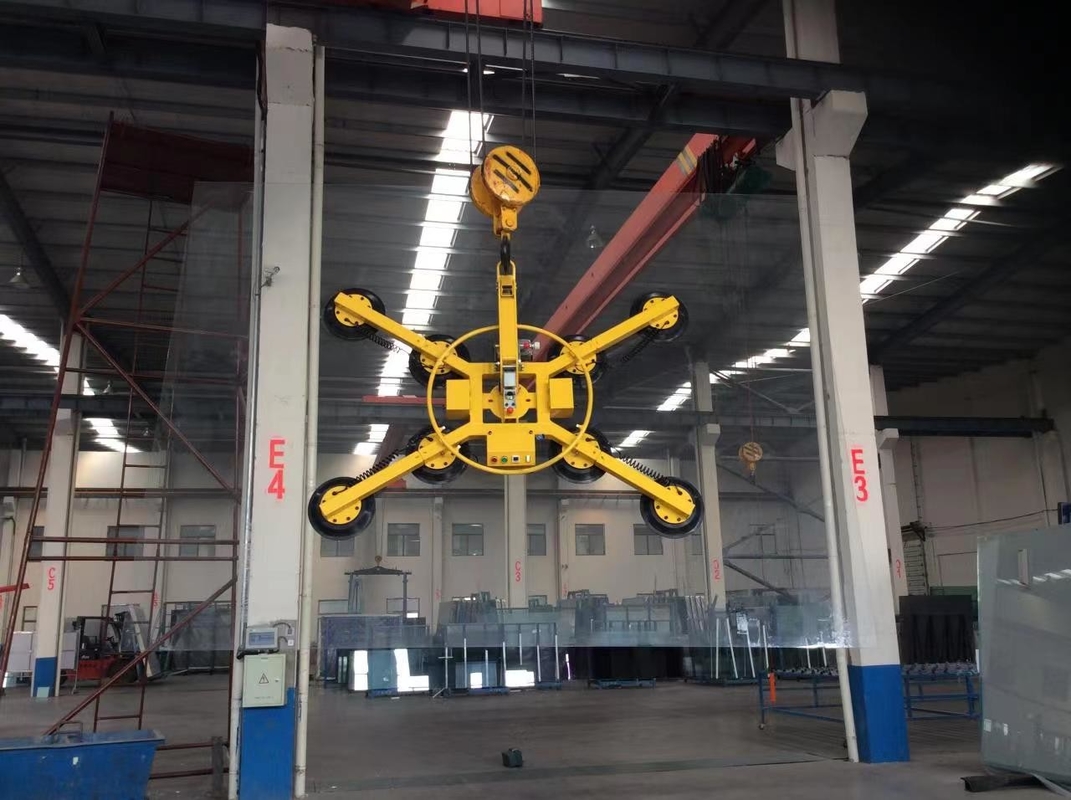

Glass Cantilever Crane designed for used with a crane or other hoisting equiment, the RSY-600-6 lifters employ vacuum to hold a load for lifting, and they provide manual 360°rotation and mechanically assisted, manual 90°tilt movements for load manipulation,Maximum Load capacity is 800kg.
Feature of Glass lifter
1.Tilt capability
|
Description:
|
Designed for use with cranes or other hoisting machinery, the RSY-800-8 lift adopts vacuum load lifting, and provides load handling manual 360° rotation and mechanical assistance, and manual 90° flip. | |||
| Model | RSY-800-8 | |||
| Vacuum pads: | (Eight of Silica gel, #60 filter screen 10’’[30m] nom.diameter.8 Silicone Suction Cups, #60 Strainer 10"' [30cm] Diameter | |||
| Pad Spread | Length | Maximum | 2596mm | |
| Minimum | 997mm | |||
| Width | Maximum | 1868mm | ||
| Minimum | 821mm | |||
| Load capacity | Per-Pad | 184lbs[100KG] | ||
| Maximum | [800Kg] | |||
| Lifter weight | [140KG ] | |||
| Power Source | 12Volts DC, 10Amps | |||
|
Battery Capacity |
7 amp-hours | |||
|
Tilt capability
|
Manual 90°, with for-bar tilt linkage that minimizes operator effort and autimatically holds a correctly attachmed load in the upright or flat position. When engaged, tilt locks ensure that the orientation of the load is not compromised by accidental or unexpected forces.
|
|||
|
Rotation Capability |
Manual 360°with automatic latching(when desired)
|
|||
| Vauum pump |
Diaphragm type, 1 SCFM[28liters/minute] nominal airlow |
|||
|
Dual battery vacuum system
|
Two battery vacuum system cicuits allow the lifter to maintain the vacuum level in one circuit even if an unexpected vacuum loss occurs in the other one (eg. Due to load breakage)
|
|||
|
Vacuum reserve pipe Line
|
vacuum reservoirs help prevent immediate vacuum loss in case of power failure and extend battery and vacuum pump life by reducing pump cycles required to maintain vacuum.
|
|||
Vacuum glass electric suction cup lifter KX4
Manual rotation: 360° edgewise, with locking at each quarter point.
Manual tilt: 90° between upright and flat, with automatic latching in upright position.
1. The vacuum glass lifter is for handling the glass sheet.
2. Glass lifter max. carrying capacity 200kg. 400kg. 600kg.800kg ( a safety factor 4.0 include).
3. The vacuum pump, valve, switch and some important spare parts we are import from oversea.
4. Stable performance, easy to maintain, efficient, safe, quick, easy.
5. The material of suction pad is NBR (oil resistance,skid resistance, corrosion resistance) , Be able to effectively and steel vacuum suction and produce vacuum.
6. The suction pad can be adjustable, can be turned off and open individually.
7. The vacuum lifter is equipped with a buzzer and warning light units, in case of a power failure or vacuum leakage, an optical and an acoustic signal goes off immediately to warn the operator to do emergency operation.
8. The vacuum lifter is equipped with safety tank&Pressure switch warning, when the power is turned off in sudden, always can keep the work piece not falling down for 30 minutes.
9. The design of vacuum lifter by our company is passed to EU CE passed.It is CE identification product.
Glass Cantilever Crane with lifting sucker
1. This vacuum glass lifter is for handling insulating glass sheet.
2. This glass lifter is able to lift the glass sheet with 800kg
3. It is equip with 5 suckers. But the sucker can be add according to need of the client.
4. The equipment is Stable, Easy to use and safe.
5. The vacuum lifter is equipped with a warning light in case of a power failure or vacuum leakage, an optical and an acoustic signal goes off immediately to warn the operator to do emergency operation.
Parameters:
| Max Glass weight | 500KG | |
| Rotation angle |
Rotate 90 ° Flip 90° |
Left and Right Up and Down |
| Suction cups | 6 Pieces | |
| Cup Materials | Silicone | |
| Sliding method | Manual | |
| Column height | 4 meters | Gas storage function |
| Arm length | 4 meters | |
| Air Control parts | Airtac |
| Max Glass weight | 400KG | |
| Rotation angle |
Rotate 90 ° Flip 90° |
Left and Right Up and Down |
| Suction cups | 2 pieces | |
| Cups Materials | Silione | |
| Sliding method | Manual | |
| Column height | 4 meters | Gas storage function |
| Arm length | 4 meters | |
| Air control parts | Airtac |
Useing For
- Insulating Glass Production line,
- Installing Glass Curtain Wall System,
- Loading and Unloading glass sheet on glass cutting table,
- Instaling car windscreen.
