Place of Origin:
JINAN CHINA
Brand Name:
LIJIANG GLASS
Certification:
CE
Model Number:
LJXJ300

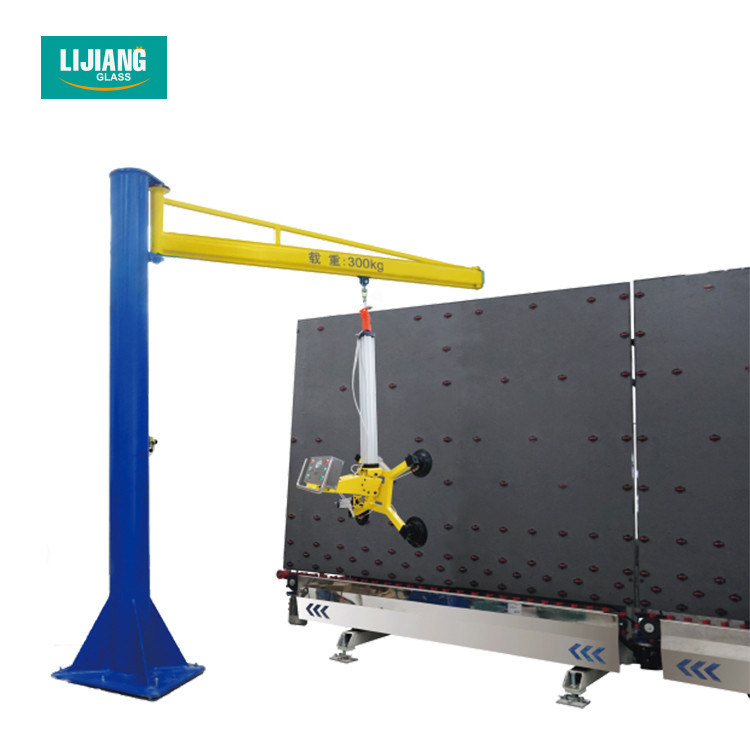

Cantilever crane lifter machine is one kind of glass loading and unloading machine for glass factory or glass users. Glass loading equipment can be jib crane , can be the glass car and the glass lifter device.
Feature of cantilever crane lifter

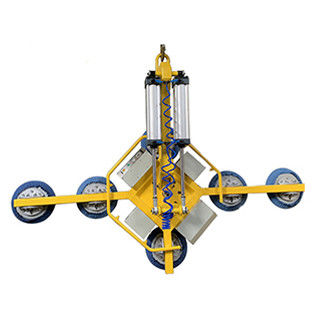

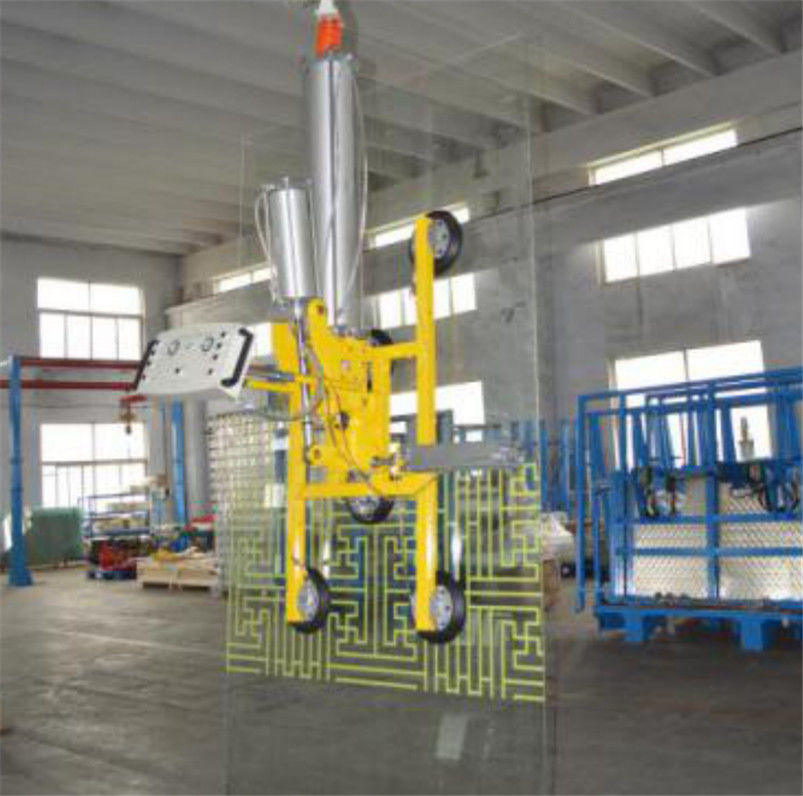

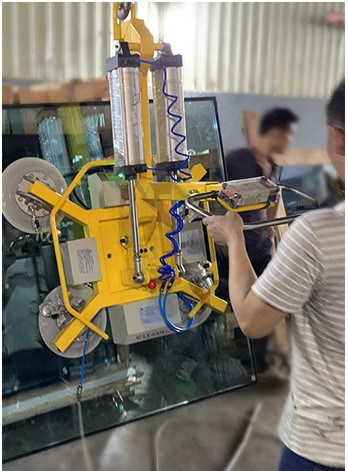

1. Cantilever vacuum glass lifter is for handling insulating glass sheet.
2 Glass lifter is stable, easy to use and safe.
3. Glass lifter is equipped with a warning light in case of a power failure or vacuum leakage, an optical and an acoustic signal goes off immediately to warn the operator to do emergency operation.
4. Glass lifter is able to lift the glass sheet with 300kg / 500kg / 900kg ....
5. Glass lifting machine is equip with 2 / 4 / 5 suckers. The No.s of suckers can be add according to need of the client.
Advantage of glass lifter
Electric remote control flip 90 degrees,Electric remote control rotate 360 degrees.
Load 400kg, can used for loading and unloading float glass by flexible bridge crane.
can used for loading and unloading for finished processing glass by stable colume suspension crane(or wall fixed suspension).
Remote -control guaranteed operator 's safe.Simple operation improved your working efficiency .
Tech Parameters of Cantilever Lift Crane
| Max Glass weight | 300/500KG | |
| Rotation angle |
Rotate 90 ° Flip 90° |
Left and Right Up and Down |
| Suction cups | 6 Pieces | |
| Cup Materials | Silicone | |
| Sliding method | Manual | |
| Column height | 4 meters | Gas storage function |
| Arm length | 4 meters | |
| Air Control parts | Airtac |
| Max Glass weight | 400KG | |
| Rotation angle |
Rotate 90 ° Flip 90° |
Left and Right Up and Down |
| Suction cups | 2 pieces | |
| Cups Materials | Silione | |
| Sliding method | Manual | |
| Column height | 4 meters | Gas storage function |
| Arm length | 4 meters | |
| Air control parts | Airtac |
