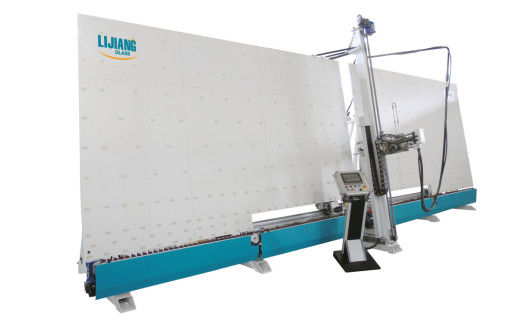

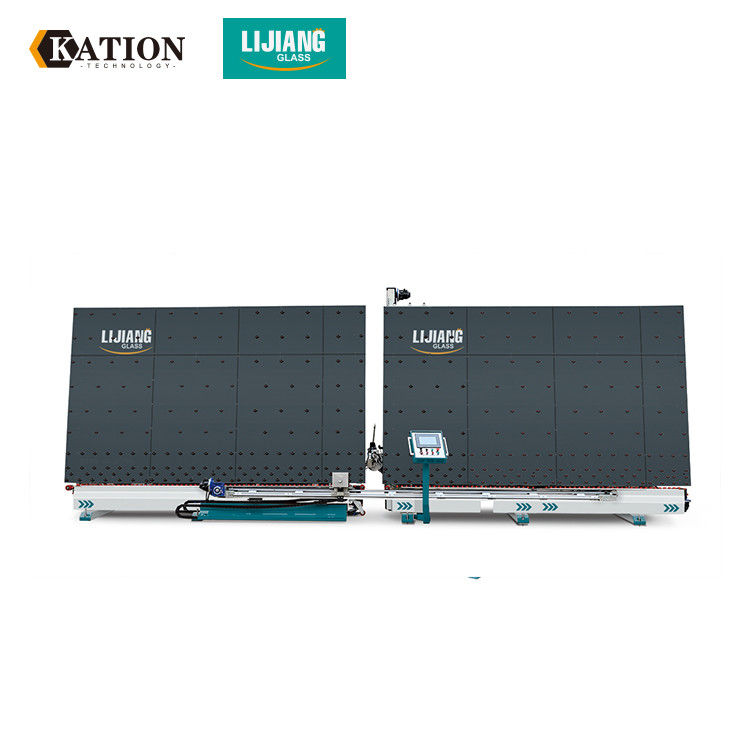

Double Glass Extruder Insulating Glass Sealing Robot Automatic Sealing

Double Glass Extruder Insulating Glass Sealing Robot Automatic Sealing
Double Glass Extruder Insulating Glass Sealing Robot Automatic Sealing Double Glass Extruder Insulating Glass Sealing Robot Automatic Sealing Double Glass Extruder Insulating Glass Sealing Robot Automatic Sealing Double Glass Extruder Insulating Glass Sealing Robot Automatic Sealing Double Glass Extruder Insulating Glass Sealing Robot Automatic Sealing Double Glass Extruder Insulating Glass Sealing Robot Automatic Sealing

Large Image :  Double Glass Extruder Insulating Glass Sealing Robot Automatic Sealing

Product Details:
Place of Origin: China
Brand Name: LIJIANG
Certification: CE
Model Number: LJTJ2540
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: 65000
Packaging Details: container
Delivery Time: 20-30
Payment Terms: T/T
Supply Ability: 50

Double Glass Extruder Insulating Glass Sealing Robot Automatic Sealing

Description
Name: Vertical Insulating Glass Sealing Robot Glass Thickness: 12-56mm
Working Speed: 5-40m/min Air Pressure: 0.6-0.8MPa
Squeeze Pressure: <350kg/m³ Plane Angle: 6°- 9°
High Light:

Insulating Glass Sealing Robot 40m/min

,

Insulating Glass Sealing Robot

,

Auto Sealing Insulating Glass Sealing Robot

Double Glass Sealant Extruder Insulating Glass Automatic Sealing Robot Insulating Glass Sealing Robot

Vertical Insulating Glass Sealing Robot  LJTJ2540



Application of  servo control system



l Min & Max glass sizes can be optional

l Adopt 8 servo motors

l Adopt Japan ANCHUAN servo control system with stable performance

l Automatically measure glass size, glue depth and glue speed with linear adjustment

l Adopt timing belt to keep smooth convey with accurate position

l Spares are produced with high standardization and high precision, ensure the machine can be used with long-term working

l The glass corners are full without air bubbles, smooth surface, no need to

l Full automatic and high-efficiency machine

l New scraper design, especially for making train IG with very even sides and corners, without any bubbles.

l Automatically repair glass corners with beautiful surface

l Smooth convey without scratch and pollution

l Single-function parts are equipped with manual functions, easy adjustment

l Shaped IG units (Optional)

l Stepped IG units with four sides (Optional)

l Double and Triple IG units

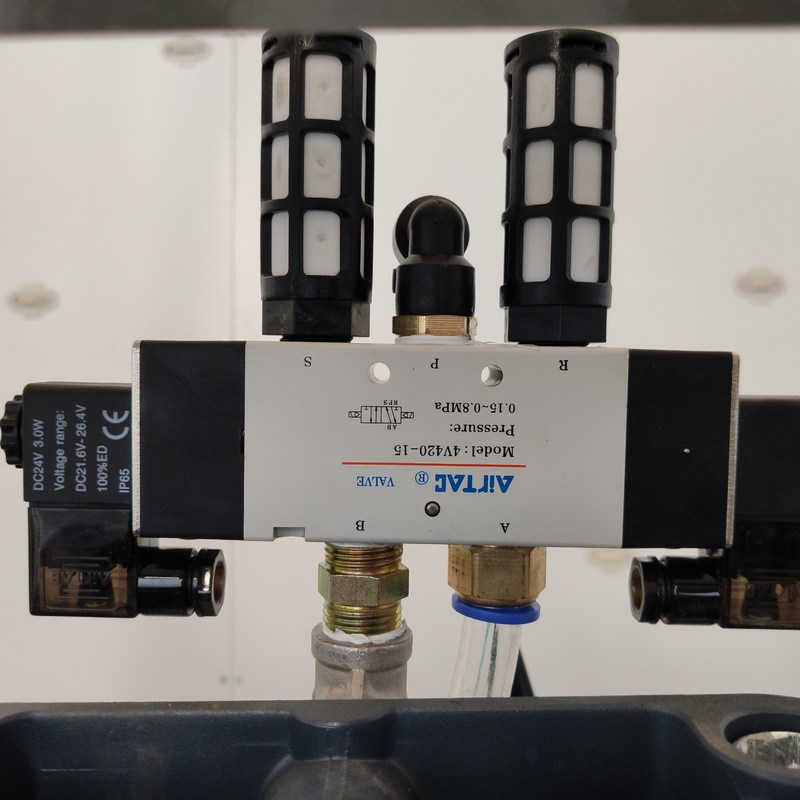

Detail Images  of  pneumatic component

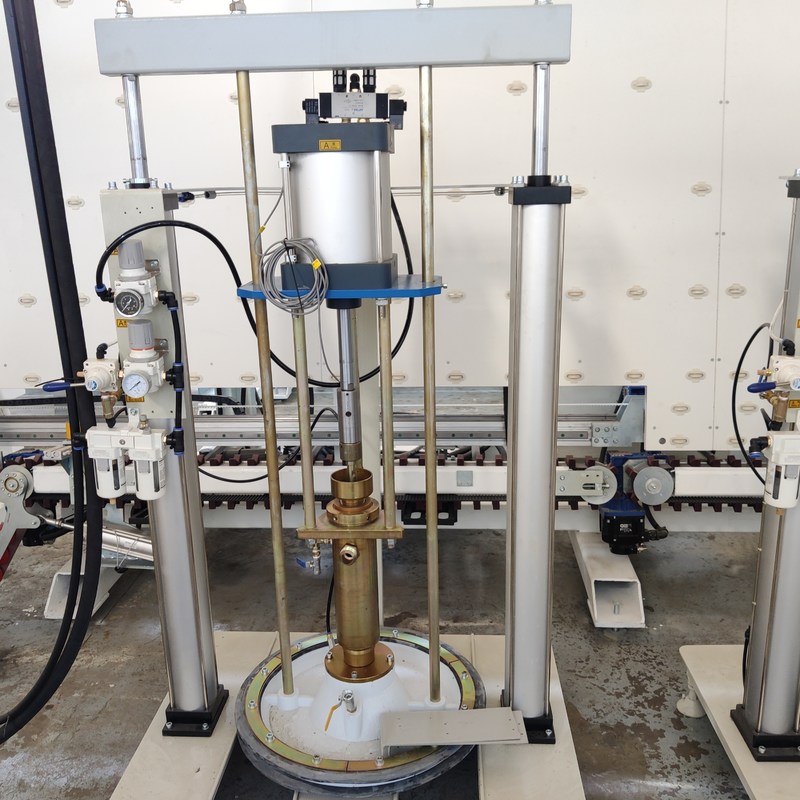

Ø One Set of Pump A & Pump B
Equipped with single A component and single B component. Glue A and B automatic mixing, automatic ratio.

Ø Two Sets of Pump A & Pump B
Equipped with two sets of A components and two sets of B components, which can be used for two kinds of different sealants, such as silicone rubber, polysulfide rubber, silicone structural adhesive and so on.

Ø Back Glue Device
When the pressure increasing, more Glue B will flow back automatically, saving materials.


² Technical data  of  repair glass

Max.glass size2500mm
Min.glass size170mm*400mm (2000mm machine)
Glass thickness12-56mm
Working speed5-40m/min
Air pressure0.6-0.8MPa
Squeeze pressure<350kg/m³
Plane angle6°- 9°
Max glass weight400kg
Voltage power380V 12kw
Overall dimension8700mm*2000mm*3500mm



  • Main components list  of   switching power supply
Name Brand
SwitchSIEMENS
Servo motorJapan YASKAWA
I/O modelJapan MSYSTEM
Lower voltage componentSiemens
CPUJapan YASKAWA
Frequency converterJapan OMRON
Switching power supplyTaiwan MW
Pneumatic componentJapan SMC
PLCSiemens
GuidewaySiemens


Double Glass Extruder Insulating Glass Sealing Robot Automatic Sealing 0
FAQ  of  pneumatic component

Q: What is the system of Kation’s after sale service?
A: Kation has its own special system for the service, we make a “tree of knowledge”for guiding customer to find the usual problem and the answer when customers meet.
Q: What is the details of the after sale service?
A: Step1: Notice before installation
Step2 : Confirm before installation
Step3: On-site installation
Step4: On-site debugging
Step5: On-site training
Step6: Client sign
Step7: On-line service
Step8: Technical service
More details please search www.lijiang-glass.com
Q: What's the payment term?
A: T/T, L/C and other payment terms could be negotiated.
Q: About this Machine,What’s the guarantee ?
A:1)Our guarantee for 12 months.
2)24 hour’s technical support by email or calling
3)English manual and video tutorial
4)We will provide the consumable parts at an agency price
5)24 hours on line service each day, free technical support.
