Product Details:
|
Name: | Nsulating Glass Sealing Robot | Max Size: | 3300 Mm*5000 Mm |
---|---|---|---|
Min Size: | 450mm*300mm | Glass Type: | Double/triple/step Insulating Glass |
IG Thickness: | 60 Mm | Glue Depth: | 30mm |
Brand: | Lijiang Glass | Warranty: | 1 Year |
Voltage: | 380 V 50 Hz 3 P (optional) | Color: | Green And White |
High Light: | IG Line Insulating Glass Sealing Robot,Double Insulating Glass Sealing Robot,Triple Insulating Glass Sealing Robot |
Jumboo Size Automatic Insulating Glass Sealing Robot Machine For IG Line LJTJ3350

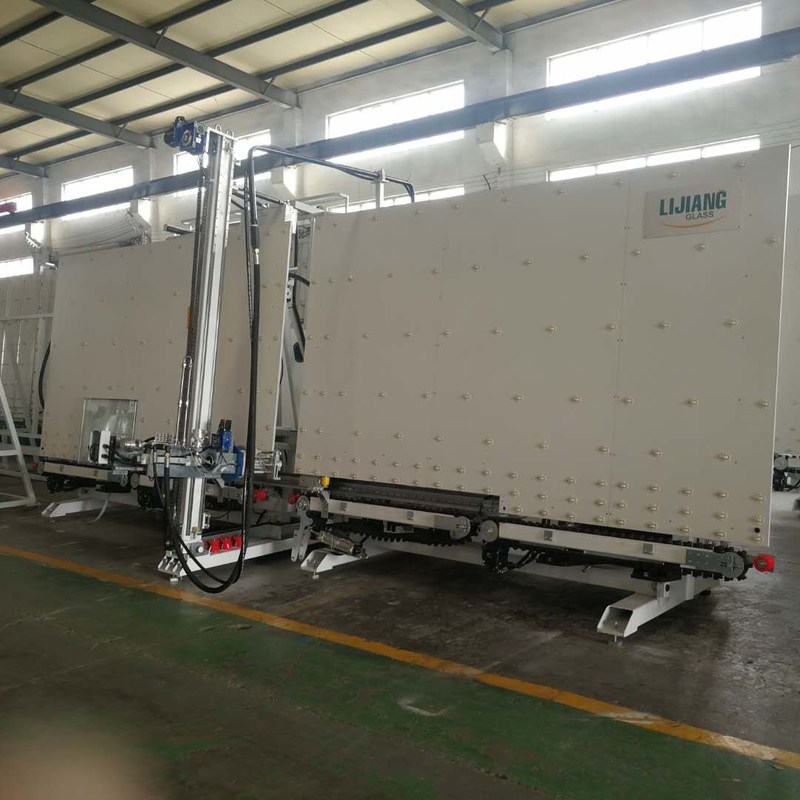

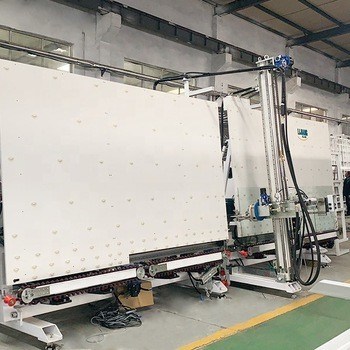

Vertical Insulating Glass Sealing Robot LJTJ3350
Main Features:
• Japan Yaskawa servo system control, high efficiency automatic sealing machine
• 4 sections for glass storage

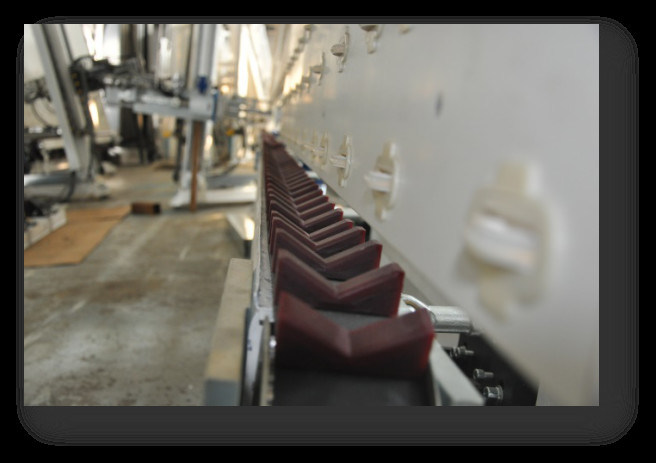

• Adopt synchronous belt, stable transmission and precise positioning
• Automatic repair of glass corners with scrapers and rollers
• Automatically measures glass size, glue depth (30mm)
• Each automatic function is controlled manually
• Double glazing available
• Shaped glass, stepped glass with optional edges
• Silicone, polysulfide and silicone structural sealants can be used

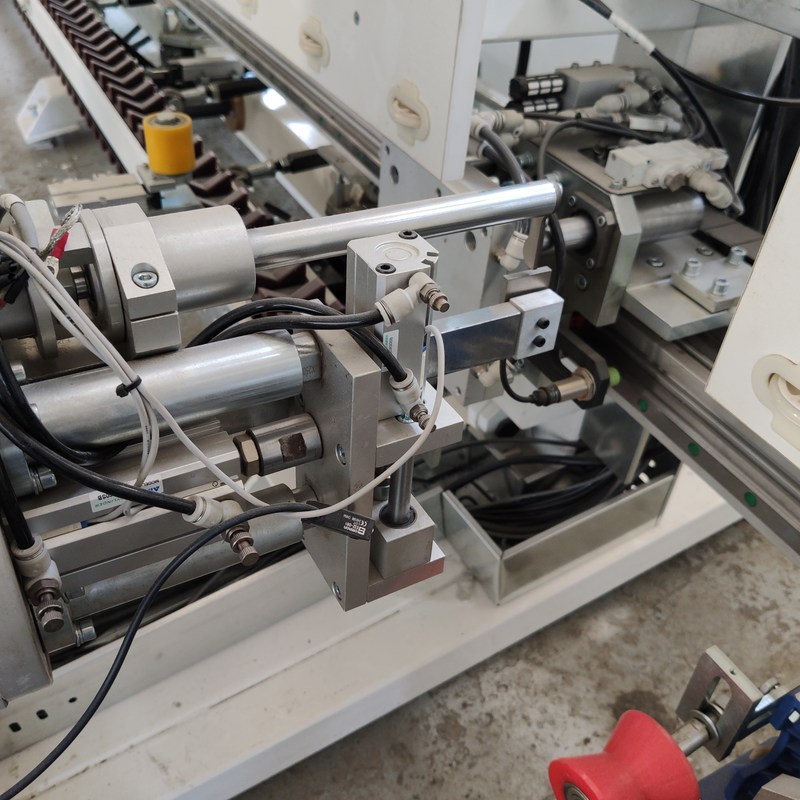

• Adhesive head on front of machine for easy step glass application
• Can be connected to insulating glass processing lines
Technical data
Max. glass size | 3300*5000mm |
Min. glass size | 400*300mm |
Glass thickness | 12-80mm |
Working speed | 5-40m/min |
Aluminum size | 6-30mm |
Glue depth | 5mm-30mm |
Glue pressure | <350kg/cm³ |
Air pressure | 0.6 - 0.8MPa |
Squeeze pressure | 32MPa |
Total power | 20kw |
Electrical parameters
NAME | ORIGIN | BRAND |
Servo motor | Japan | YASKAWA |
Servo driver | Japan | YASKAWA |
CPU | Japan | YASKAWA |
Low voltage component | Germany | SIEMENS |
Guideway | Taiwan | HIWIN |
Switching power supply | Taiwan | MW |
Sensor switch | Korea | AUTONICS |
Pneumatic component | Japan | SMC |
Touch screen | China | GAOSHAN |
Servo motor | Japan | YASKAWA |
Servo driver | Japan | YASKAWA |
Electrical parameters
NAME | ORIGIN | BRAND |
Servo motor | Taiwan | TAIDA |
PLC | Taiwan | TAIDA |
Pneumatic component | Taiwan | AAIRTAC |
Low pressure electricity | Germany | SIEMENS |
Circuit breaker | Germany | SIEMENS |
Sensor switch | Korea | AUTONICS |
Approach switch | Korea | AUTONICS |
Limit switch | Taiwan | TEND |
Connector | Germany | SIEMENS |
Frequency converter | France | SCHNEIDER |
Main Button | France | SCHNEIDER |
Intermediate relay | Japan | OMRON |
Ⅰ.Warranty : 1 year
Wearing parts and equipment damage caused by customer's reasons are not included in the free warranty.
Ⅱ. LIJIANG has the own system for after sale service, which including three parts.
1. After Lijiang equipment arrives at the customer's factory, Lijiang can send engineers to the customer's factory for installation, commissioning and personnel training, free of commission. However, the client shall bear the cost of the engineer's round-trip airfare and accommodation.
2. During the warranty period, if there is a problem with Lijiang equipment, Lijiang will provide timely online technical support as soon as possible. However, if the engineer needs to travel to the customer's factory to repair machinery, the customer should pay for round-trip airfare and lodging. Please note that if the spare parts are damaged due to Lijiang, Lijiang will prepare them in advance (except for wearing parts).
3. If there is a problem with Lijiang equipment beyond the warranty period, Lijiang will provide timely online technical support as soon as possible. However, if the client requests a Lijiang engineer, the client shall bear the engineer's round-trip airfare and accommodation, and the client shall also pay a service commission of $150 per day in Lijiang.
Note: Before Lijiang engineers go to the customer's factory, the customer needs to send the air ticket and hotel information in advance. Lijiang will arrange the engineer's itinerary and maintenance project as soon as possible.
common problem
Q: What is Kation's after-sales service system?
A: Kation has its own exclusive service system. We create a "knowledge tree" to guide customers to find common questions and answer them when they encounter customers.
Q: What are the after-sales service details?
A: The first step: Precautions before installation
Step 2: Confirmation before installation
Step 3: On-site installation
Step 4: On-site debugging
Step 5: On-site training
Step 6: Customer Signature
Step 7: Online Services
Step 8: Technical Services
For more details, please search www.lijiang-glass.com
Q: What is the payment term?
A: T/T, L/C and other payment terms can be negotiated.
Q: Regarding this machine, what is the warranty?
A:1) Our warranty period is 12 months.
2) 24 hours technical support via email or phone
3) English manual and video tutorial
4) We will supply wearing parts at agency price
5) 24 hours a day online service, free technical support.
Q: What about your warranty?
A: Generally speaking, our warranty period is one year. During the warranty period, we can provide technical support, provide feedback within 24 hours, and help you repair your problem controller for free, even if it is not from our factory.
Q: Can we visit your factory before ordering?
A: Yes, we warmly welcome you and sincerely invite you or your team to visit our factory, we will help you arrange your hotel and pick you up from the airport.
Q: What is the delivery time?
A: Most of the time our factory has stock. If there is no stock, usually the delivery time is 15-20 working days after receiving the deposit. If you have urgent needs, we can consider making special arrangements for you.
