Automatic Insulating Glass Two Component Sealant Machine Sealing Robot

Insulating Glass Two Component Sealant Machine

Insulating Glass Two Component Sealing Robot

Two Component Glass Sealing Robot

Place of Origin:

Jinan City, Shandong Province, China

Brand Name:

Jinan LIJIANG Glass

Certification:

CE & ISO9000

Request A Quote

Product Details

Product Name:

Vertical Insulating Glass Sealing Robot

Max.glass Size:

2500*2500mm

Min.glass Size:

170mm*400mm

Glass Thickness:

12-56mm

Working Speed:

5-40m/min

Air Pressure:

0.6-0.8MPa

Squeeze Pressure:

<350kg/m3

Overall Dimension:

8000*1500*2700mm/8000*1500*3500m

Highlight:

Insulating Glass Two Component Sealant Machine

Insulating Glass Two Component Sealing Robot

Two Component Glass Sealing Robot

Payment & Shipping Terms

Minimum Order Quantity

1 set

Price

Negotiable Price

Packaging Details

Wooden Cases Package and Container Transfer

Delivery Time

5-8 working days

Payment Terms

L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability

15 sets per month

Vertical Insulating Glass Sealing Robot LJTJ2540

Get Best Price

Video

Automatic Insulated Glass Sealing Robot For Insulating Glass Processing 2500*4000mm

Get Best Price

Video

Automatic Vertical Double Glass Insulated Glass Sealing Robot Machine For Sealant Spreading Processing

Get Best Price

Video

Vertical Automatic Glass Sealing Robot For Insulating Glass IG Unit CE Certificate

Get Best Price

Contact Now

Product Description

2540 Automatic Insulating Glass Two-component Sealant Machine Sealing Robot Hot Melt Glue Machine

Product Description

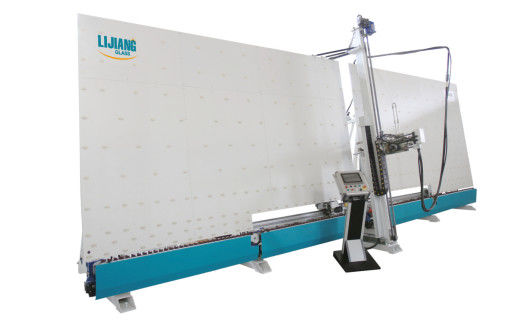

Automatic Vertical Insulating Glass Sealing Robot

Jinan LIJIANG Glass Automatic Insulating Glass Sealant Sealing Machine can observe the combined sealant evenly to the outer channel of the insulating glass thru the servo mechanism to assist the sealing and bonding overall performance of the insulating glass. Automatic Vertical Insulating Glass Sealing Robot can observe the combined sealant evenly to the outer channel of the insulating glass via the servo mechanism to assist the sealing and bonding overall performance of the insulating glass.

Advantages & Features

Benefits & Advantages

* Min & Max glass sizes can be elective

* Adopt eight servo motors

* Adopt Japan ANCHUAN servo manage systemwith secure overall performance

* Automatically measure glass size, glue depth and glue pace with linear adjustment

* Adopt timing belt to preserve clean deliver with correct function

* Sparesare produced with high standardization and excessive precision, make sure the desktop can be used with long-term working

* The glass cornersare full besides air bubbles, clean surface.

* Full computerized and high-efficiencymachine

* New scraper design, mainly for making educate IG with very even aspects and corners, except any bubbles.

* Automatically restore glass corners with stunning floor

* Smooth deliver except scratchand pollution

* Single-function partsare outfitted with guide functions, handy adjustment

* Shaped IG gadgets (Optional)

* Stepped IG devices with 4 aspects (Optional)

* Double and Triple IG devices

The Smooth Glue Surface

After making use of glue, It will make sure that the corners of the glass are full, except bubbles and different impurities, and the glue floor is so smooth.

The High-precision Servo Control System

It adopts Japanese Yaskawa servo manipulate machine with clear wiring design to make certain secure standard performance of the equipment.

The Glass Coating

Automatically measure glass size, glue depth and glue pace via linear adjustment to make certain the balance of insulating glass coating quality.

Glue Pump A and Glue Pump B

Equipped with a single A aspect and a single B component, combined and glued. When making use of glue, glue pump A and glue pump B are mechanically combined to recognize automated proportioning.

Main Technical Parameter

Item.	Spec.
Product name	Vertical Insulating Glass Sealing Robot LJTJ2025
Max.glass size	2000*2500mm
Min.glass size	170mm*400mm
Glass thickness	12-56mm
Working speed	5-40m/min
Air pressure	0.6-0.8MPa
Squeeze pressure	<350kg/m³

NAME	ORIGIN	BRAND
Servo motor	Taiwan	TAIDA
PLC	Taiwan	TAIDA
Pneumatic component	Taiwan	AAIRTAC
Low pressure electricity	Germany	SIEMENS
Circuit breaker	Germany	SIEMENS
Sensor switch	Korea	AUTONICS
Approach switch	Korea	AUTONICS
Limit switch	Taiwan	TEND
Connector	Germany	SIEMENS
Frequency converter	France	SCHNEIDER
Main Button	France	SCHNEIDER
Intermediate relay	Japan	OMRON
