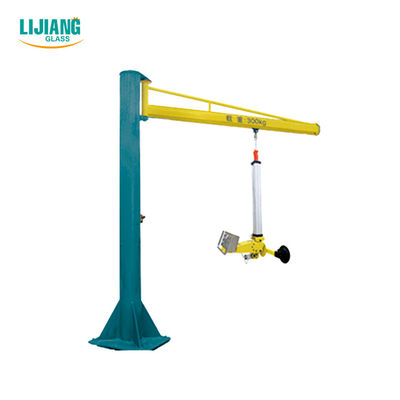

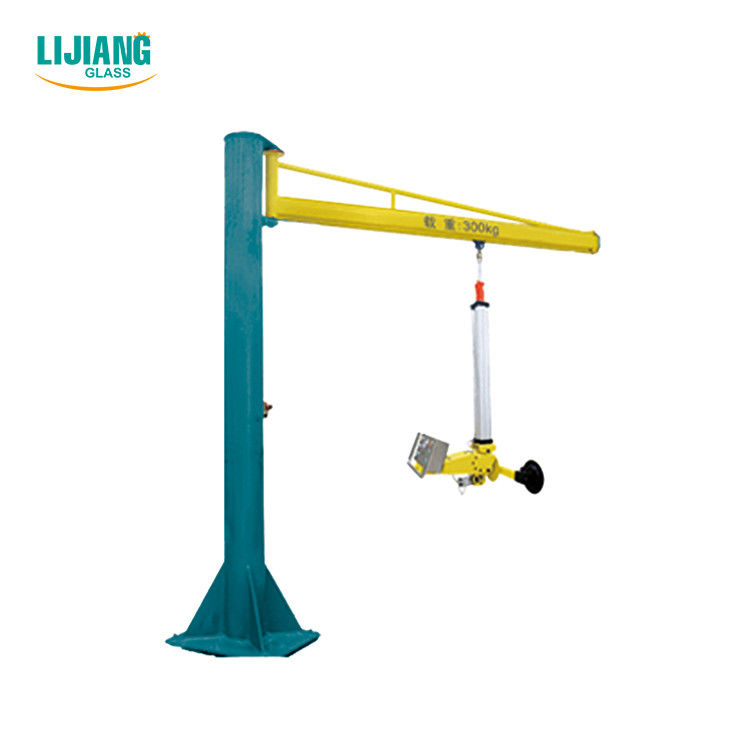

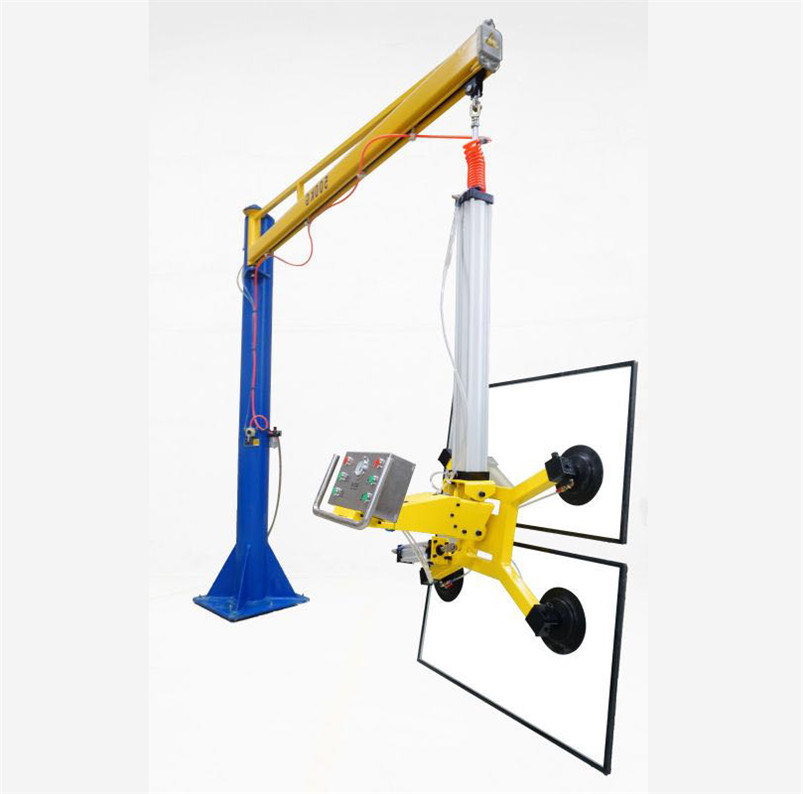

Insulating Glass Processing Cantilever Lift Crane With Suction Cups

Jib crane is common light lifting equipment in modern production.

It is fit for frequent lifting work of short distance between fixed positions.

It has advantages of high efficiency, energy saving, convenience, occupying a small area and easy operation and maintenance.

• It is operated by using compressed air instead of using electricity.
• When the compressed air stop , glass wont fall and broken, we guarantee a safe production.
• All pneumatic components, we use Japanese SMC brand, we use German SCHMALZ products for vacuum parts which is the most advanced technology of pneumatic and vacuum control in the world.
• Long distance of electric lift and down. Double speed control , guarantee fast speed , position accuracy and stability.
• Rotate and flip are 0-90°, the official load is 400 kg, but it can be used within 500-600 kg

500-600 kg

This machine is reliable and safe, easy to operate.

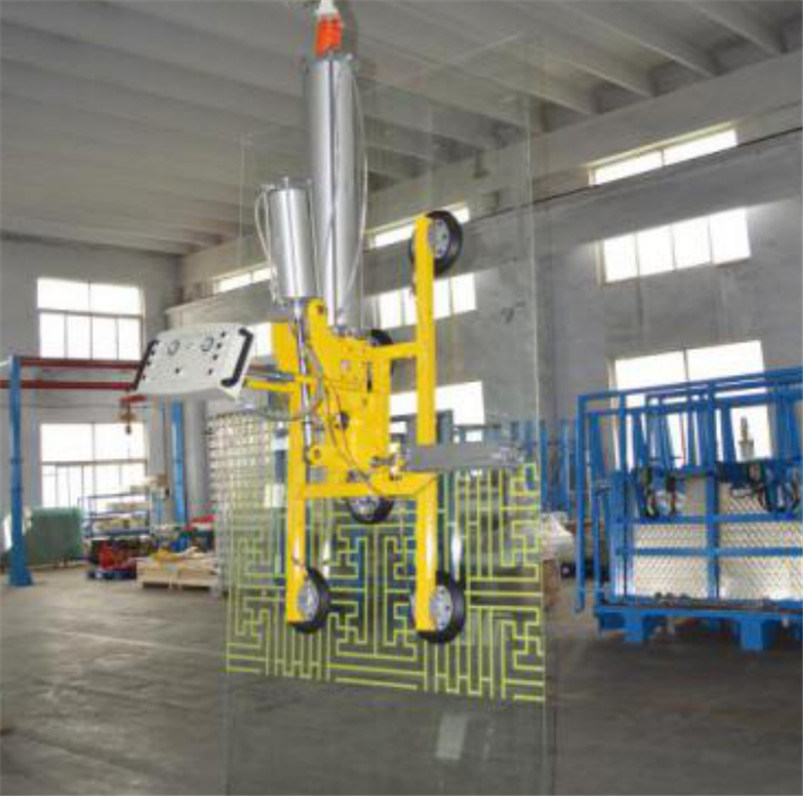

The device is commonly used for glass loading and unloading work in glass deep processing process, such as cutting, grinding, cleaning, tempering furnace, lamination glass and insulated glass.

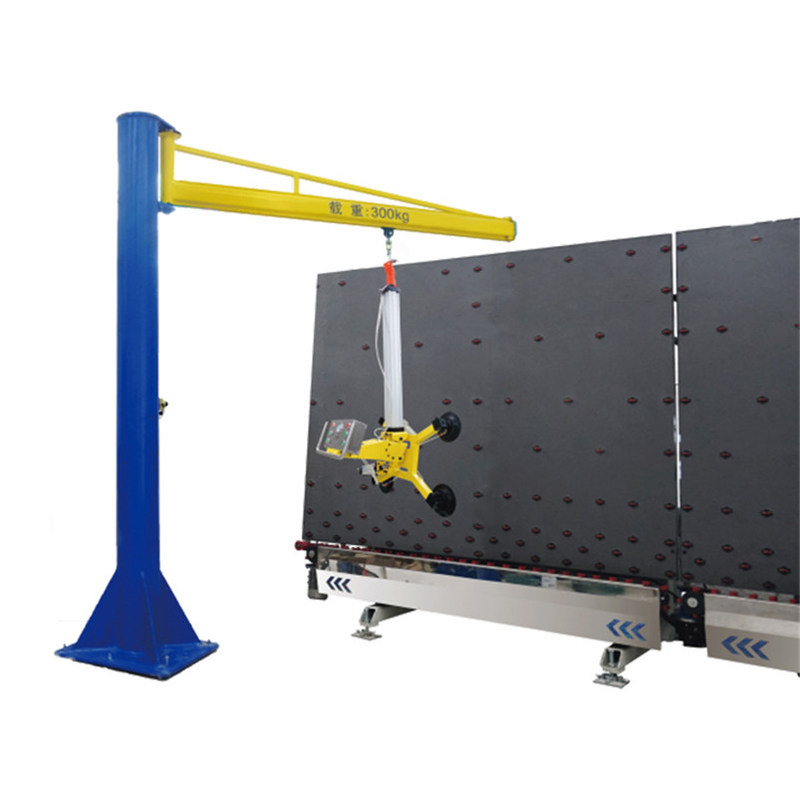

This device is usually used together with jib crane beam or gantry crane frame, depending on the client's requirements.

Tech Parameters of Cantilever Lift Crane

LJKBMB95 Edge finish machine

APPLICATION

Model LJKBMB95 abrasive belt edge finishing machine is used to carry out rough grinding and chamfering after the cutting of the original glass sheet. With easy and simple operation, low labor intensity and high production efficiency, it is indispensable for safety production of all kinds of windows and doors.

Main features

n It is suitable for the edge-finishing of the raw glass for insulating glass.

n The glass transfer is nimbly and convenient, the edge-finishing effect is good.

Main technical parameter

LJSKJ02 Semi-auto aluminum frame transfer machine

APPLICATION

LJSKJ02 semi-automatic aluminum frame transfer machine is the equipment necessary for producing aluminum spacer type insulating glass. After an aluminum frame is coated with butyl, hang on the hook of this machine that may convey it to another side automatically.

Model LJSKJ02 semi-automatic aluminum frame transfer machine consists of frame, driving system and electrical control part.

Main technical parameter
