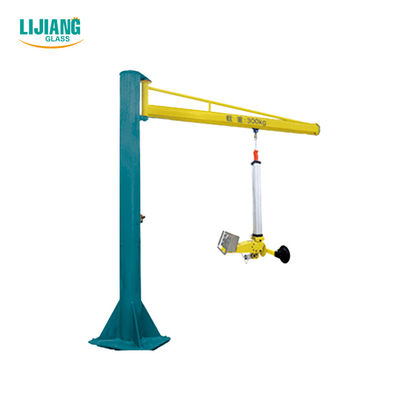

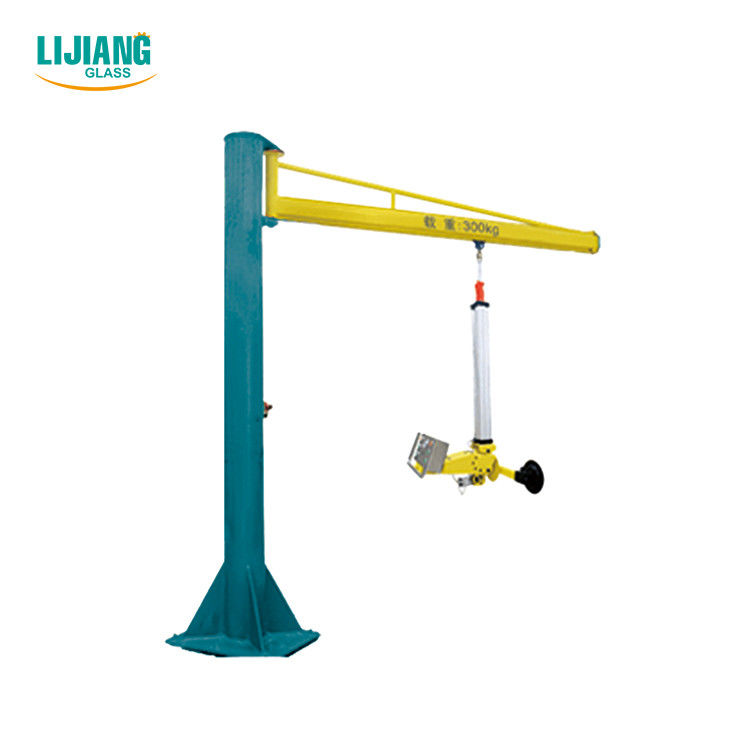

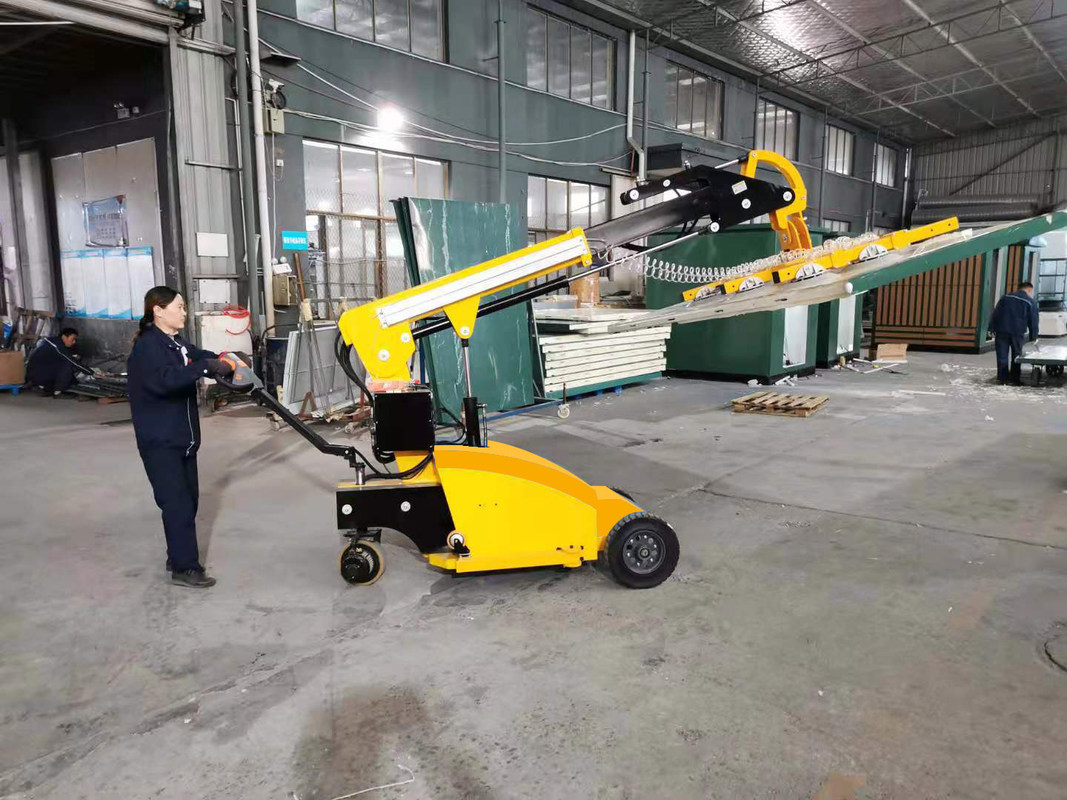

Super Simple Vacuum Glass Lifter Machine For Loading And Unloading Glass

Super Simple Vacuum Glass Lifter Machine For Loading And Unloading Glass
Super Simple Vacuum Glass Lifter Machine For Loading And Unloading Glass Super Simple Vacuum Glass Lifter Machine For Loading And Unloading Glass Super Simple Vacuum Glass Lifter Machine For Loading And Unloading Glass Super Simple Vacuum Glass Lifter Machine For Loading And Unloading Glass Super Simple Vacuum Glass Lifter Machine For Loading And Unloading Glass

Large Image :  Super Simple Vacuum Glass Lifter Machine For Loading And Unloading Glass

Product Details:
Place of Origin: JINAN CHINA
Brand Name: LIJIANG GLASS
Certification: CE
Model Number: LJXJ400KG
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD 1800 - 3500 per set
Packaging Details: Wooden box
Delivery Time: 15 days
Payment Terms: L/C, T/T
Supply Ability: 1000 sets per month

Super Simple Vacuum Glass Lifter Machine For Loading And Unloading Glass

Description
Production Name: Glass Lifting Machine Glass Weight: 400 Kg / 600 Kg / 800 Kg
Glass Suckers: 4 / 6 / 8 Or More Brand: LIJIANG GLASS
Warranty: 1 Year Voltage: 220 V
High Light:

Unloading Vacuum Glass Lifter Machine

,

300kg Vacuum Glass Lifter Machine

,

Loading Vacuum Glass Lifter Machine

Pneumatic Vacuum Glass Lifter Machine With Four Meters Arm And Four Meters Length

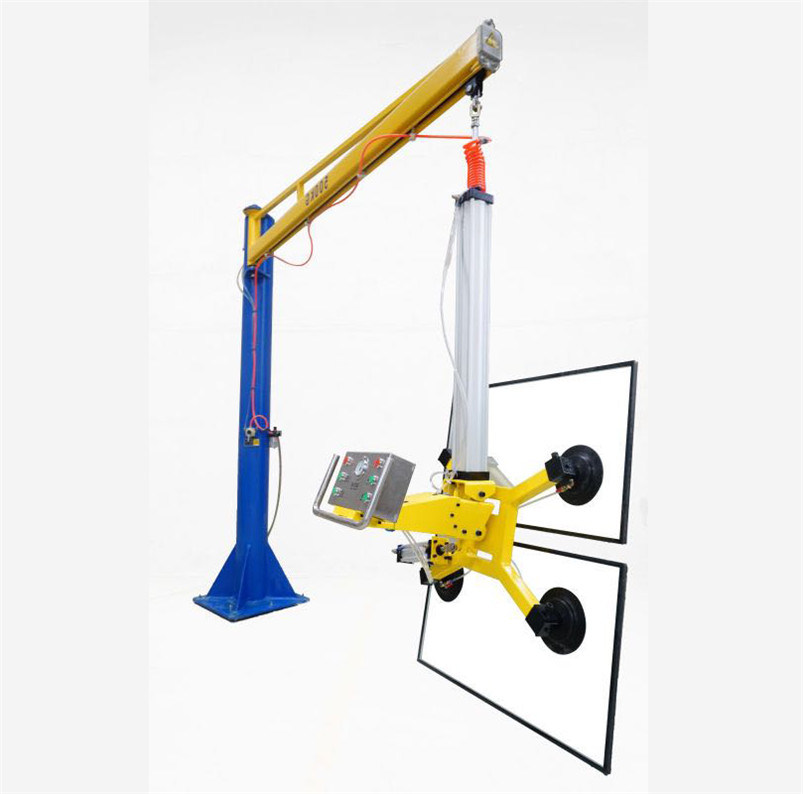

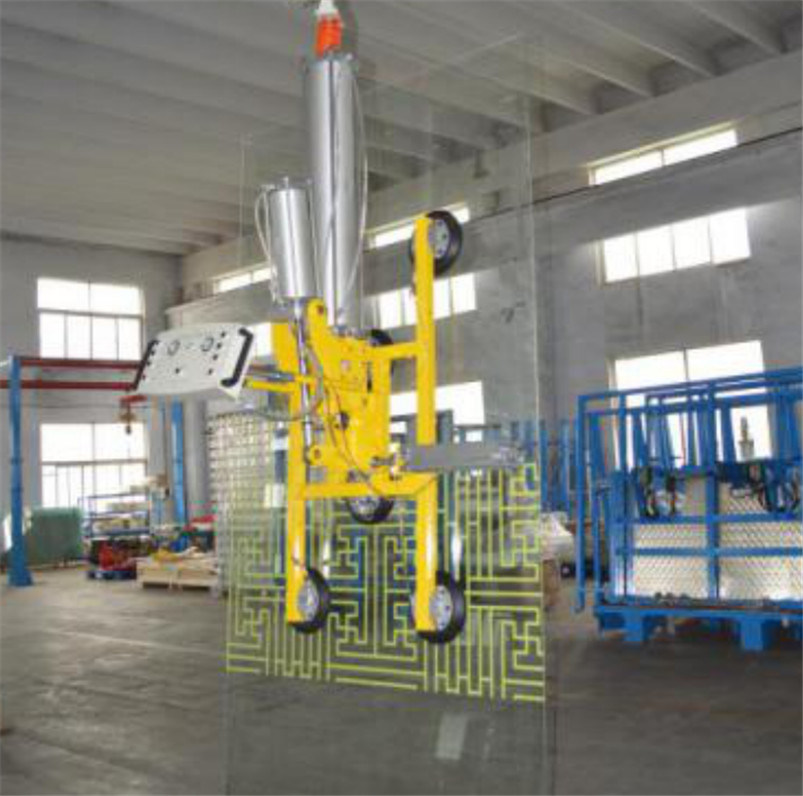

1. Function description of glass lifting devices

  • Intelligent control system, super sound light alarm device.
    Without a cable, it is powered by two extra-large batteries with real-time power display.
    Energy saving, single battery can be used 3-5 days, charging voltage is 220 V.
    The Thomas oil-free DC vacuum pump imported from the USA has super suction power, safety and reliability.
    It can rotate and handle 0-90 ° (special labor-saving device, easy to use).
    It can realize 0-360 degree rotating manipulation (special labor-saving device, easy to use).
    If the vacuum pressure is insufficient, there is an audible and visual alarm and automatically refills the air efficiently (only 1.5 seconds).
    The frame has a combined design, the position of the suction cup can be adjusted and closed manually.
    The suction cup adjustment does not require tools and hands to change the rack style.
    High-precision pressure detection and high-density vacuum gas storage barrel ensure safety
    and reliability.
    The special shutdown protection system can hold the pressure for more than 20 minutes after shutdown. The precision of the digital display of the vacuum pressure is more than 50% higher than that of a conventional pointer manometer.

Super Simple Vacuum Glass Lifter Machine For Loading And Unloading Glass 0



Parameters of glass lifter machine :

Parameter configuration

Parameter configuration Parameter configuration Parameter configuration
load KG 400KG 600KG 800KG
Model DP-X4P DP-X6P DP-X8P
Dead weight KG 70KG 90KG 100KG

Minimum dimension



0.85×0.75×0.3M 1.5×1.15×03M 1.5×1.15×0.3M

Maximum dimension



1.2×0.9×0.3M 1.8×1.0×0.3M 2.5×1.0×0.3M
Suction cup size mm (unified standard suction cup size, each equipment can be used generally)
Single suction cup bearing KG



100kg (the actual test load can reach more than 180kg)

Rotation function 360 ° manual rotation (special labor-saving device, safe and reliable, easy to operate)
reverse scan 90 ° manual turning (humanized design, automatic balance, fast and labor-saving)
Voltage DC DC12V(built in 2 extra long battery life)
Endurance It can be used for 3-5 days for one charge, and two batteries can be used alternately
Extension bar MM 500mm (single side length, special glass specification can be customized)
Control system Wired remote control suction and discharge
Customizable Note: it can be customized according to your specific process requirements, workpiece size and weight.
Weight standard

Conventional glass weight = length × width × thickness × glass density 2.5 ÷ 1000 000 = glass weight

3660×2440×19×2.5÷1000 000=424KG

safety factor



According to the European CE safety regulations for hoists and the German accident prevention regulations uvv 18 and VBG 9a, the best safety factor of the vacuum sling is 2.0, z factor of 2.0, the load is 1570n









Electrical part:



(1) A vacuum voltage change and a buzzer alarm unit are connected to the vacuum lifter. If the load on the vacuum machine no longer reaches the set pressure or an electrical fault occurs, the alarm unit activates the purple warning from weak to weak and the buzzer sounds. , Request the operator to deal with this in good time.



● Vacuum part:



(1) The suction lifter uses a German oil-free rotary vane vacuum pump with a pumping capacity of 8 m3 / h, a massive vacuum diploma of over 85%, energy-saving, compact and light, maintenance-free, etc.;



(2) The whole set of equipment is equipped with 6 vacuum suction cups, multi-point adsorption, to ensure that the plate can hold an excessive amount besides tilting for the duration of the handling method



(3) The suction cup fabric is 360mm diameter nitrile rubber, oil (benzene), durable, acid and alkali resistant, and can successfully adsorb with FRP to achieve proper suction cup height. Theoretical huge suction pressure = beautiful place (physical product * coefficient) * calculated elongation (0.6 bar); (0.18 * 0.18 * 3.14) * 0.6 * 10000 = 610,416, which is approximately 610.4 kg. According to the safety factor in four instances, the authentic permissible suction force of the suction cup is 610.4 / 4 = 152.6 kg. The total suction energy of 6 suction cups is 600kg. Note: The vacuum suction pressure given in the table above is calculated under 60% vacuum degree. In everyday working conditions, the gadget vacuum diploma can achieve more than 85%



(4) The vacuum stress sensor is made by the Japanese brand Panasonic, and the alarm stress level is set to 60% vacuum;



(5) Each suction cup is equipped with a pilot ball valve to control opening and closing, ensuring that the same tools can be used on a range of panel specifications;



(6) The upper and lower components of the suction bar are oriented upward with a spring. Now, if the plate is not flat, the spring will act as a buffer to load the sucker evenly to ensure the safety and reliability of the sucker.



● Overall:



(1) According to the European Union DIN EN 13155 vacuum gadget format for the exterior construction of curtain walls.



(2) Horizontal handling, electrically operated flipping and vertical handling.



(3) Flexible design, can be used to cope with unique sizes of FRP.
