Home > Products > Insulating Glass Sealing Robot >
Fully Automatic Insulating Glass Sealing Line High Speed Processing

Fully Automatic Insulating Glass Sealing Line High Speed Processing

Fully Automatic Insulating Glass Sealing Line

High Speed Insulating Glass Sealing Line

ig Insulating Glass Sealing Line

Place of Origin:

CHINA

Brand Name:

LIJIANG GLASS

Certification:

CE

Model Number:

LJTJ3350

Contact Us
Request A Quote
Fully Automatic Insulating Glass Sealing Line High Speed Processing
Fully Automatic Insulating Glass Sealing Line High Speed Processing Fully Automatic Insulating Glass Sealing Line High Speed Processing Fully Automatic Insulating Glass Sealing Line High Speed Processing
Product Details
Voltage:
380V, 3P 380V 50Hz
Power:
15kw
Dimension(L*W*H):
8700*2000*3500
Weight:
3500 Kg
Glass Thickness:
12 - 60mm
Highlight:

Fully Automatic Insulating Glass Sealing Line

,

High Speed Insulating Glass Sealing Line

,

ig Insulating Glass Sealing Line

Payment & Shipping Terms
Minimum Order Quantity
One set
Price
US$120,000 to US$95,000
Packaging Details
container
Delivery Time
10 working days
Payment Terms
L/C, T/T
Supply Ability
Five per month
RELATED PRODUCTS
Good price Vertical Insulating Glass Sealing Robot LJTJ2540 online

Vertical Insulating Glass Sealing Robot LJTJ2540

Get Best Price
Good price Automatic Insulated Glass Sealing Robot For Insulating Glass Processing 2500*4000mm online Video

Automatic Insulated Glass Sealing Robot For Insulating Glass Processing 2500*4000mm

Get Best Price
Good price Automatic Vertical Double Glass Insulated Glass Sealing Robot Machine For Sealant Spreading Processing online Video

Automatic Vertical Double Glass Insulated Glass Sealing Robot Machine For Sealant Spreading Processing

Get Best Price
Good price Vertical Automatic Glass Sealing Robot For Insulating Glass IG Unit CE Certificate online Video

Vertical Automatic Glass Sealing Robot For Insulating Glass IG Unit CE Certificate

Get Best Price
CONTACT US
Contact Now
Product Description

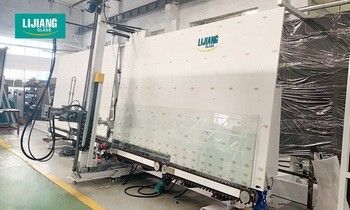

 Fully automatic high-speed processing insulating glass sealing line
Fully Automatic Insulating Glass Sealing Line High Speed Processing 0

Automatic Insulating Glass Processing Sealing Robot Machine

•Japan Yaskawa servo system control, full automatic and high-efficiency sealing machine
•4 sections, can storage glass
•Adopt timing belt, smooth transfer and accurate position
•Automatically repair glass corners with scraper and roller
•Automatically measure glass size, glue depth (30mm)
•Every auto-function is with manual operation
•Can coat double glass
•Shape glass with optional edges, step glass, triple glass (Optional)
•One set of booster pump controls two groups of sealants (Optional)
•Can use silicone, polysulfide and silicone structural sealants
•Glue head is in the front of the machine, which is easy for coating step glass
•Can be connected with insulating glass processing line •With code scanning function(Optional)
2500*4000mm
2000*2500mm
400*300mm
400*300mm
12-50mm
12-50mm
5-40m/min
5-40m/min
≥0.6MPa
≥0.6MPa
32MPa
32MPa
380V 15kw
380V 15kw
11000*2000*3500mm
11000*2000*3500mm
Fully Automatic Insulating Glass Sealing Line High Speed Processing 1
Fully Automatic Insulating Glass Sealing Line High Speed Processing 2

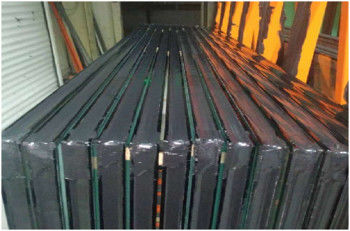

Even cheap glue with a nice coating result

TKK brand glue is used in Europe, it is not a popular sealant brand, but with a good coating result.
Fully Automatic Insulating Glass Sealing Line High Speed Processing 3

Replaceable V-block

The sealing robot uses v - belt to transfer glasses with a fast and stable speed.
Fully Automatic Insulating Glass Sealing Line High Speed Processing 4

Two sealing pumps

Two sealing pumps can be suitable for two different types of sealants very conveniently.
Fully Automatic Insulating Glass Sealing Line High Speed Processing 5

Four suckers

Four sucker cups can ensure smooth transfer of glass.
Fully Automatic Insulating Glass Sealing Line High Speed Processing 6
