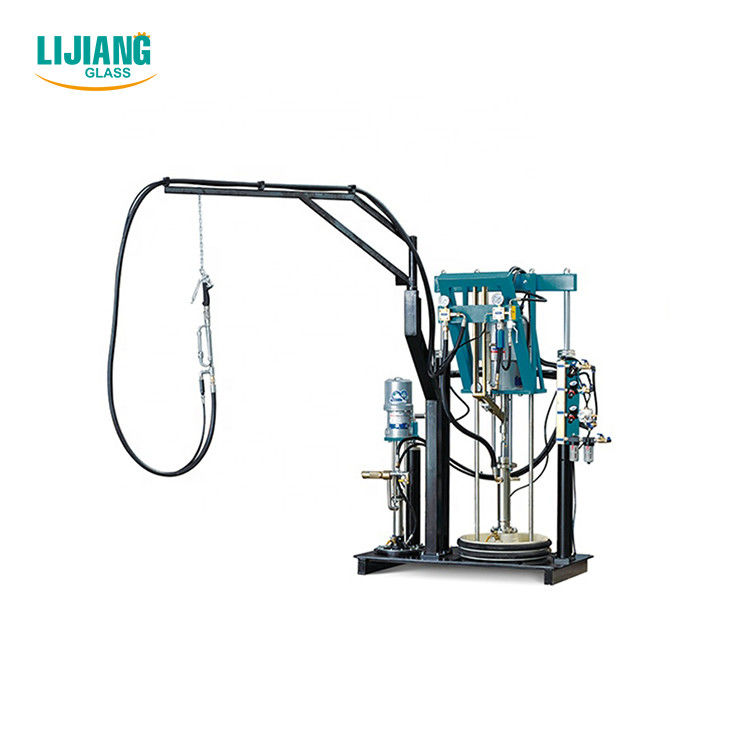

Semi Automatic Insulating Glass Sealing Robot Glue Machine

Semi Automatic Insulating Glass Sealing Robot Glue Machine
Semi Automatic Insulating Glass Sealing Robot Glue Machine
Semi Automatic Insulating Glass Sealing Robot Glue Machine Semi Automatic Insulating Glass Sealing Robot Glue Machine Semi Automatic Insulating Glass Sealing Robot Glue Machine Semi Automatic Insulating Glass Sealing Robot Glue Machine Semi Automatic Insulating Glass Sealing Robot Glue Machine

Large Image :  Semi Automatic Insulating Glass Sealing Robot Glue Machine

Product Details:
Place of Origin: CHINA
Brand Name: LIJIANG GLASS
Certification: CE
Model Number: LJST02A
Payment & Shipping Terms:
Minimum Order Quantity: One set
Price: US$10,500 to US$9,500
Packaging Details: Wooden boxes and containers
Delivery Time: 5 working days
Payment Terms: L/C, T/T
Supply Ability: 10 units per month

Semi Automatic Insulating Glass Sealing Robot Glue Machine

Description
Dimension(L*W*H): 1100mm*950mm*1630mm Weight: 1250 Kg
Glass Thickness: 60mm Marketing Type: New Product 2020
Motor: Korean Imported Brand
High Light:

Semi Automatic Insulating Glass Sealing Robot

,

Semi Automatic Insulating Glass Glue Machine

,

IG Insulating Glass Sealing Robot

Semi-automatic insulating glass sealing glue machine
Semi Automatic Insulating Glass Sealing Robot Glue Machine 0











Manual sealants spreading machine for sealing insulating glass

The manual sealants sealing machine uses imported motor instead of cylinder to control the machine working. The sealing gun and mixer are used famous brand in China. The sealing machine always use the rotated table together to coat glass by workers.

Working air pressure
0.3-0.6MPa
Sealant spreading pressure
15-20MPa
Sealant volume
4L/min
Diameter of A/B sealant
570mm/280mm
Sealant spreading air pressure ratio
50:1
Mixed rate
6:1-14:1
Air supply
Flow 0.8m3/min
Air pressure
≥0.8MPa
Overall dimension
1100*950*1630mm

Semi Automatic Insulating Glass Sealing Robot Glue Machine 1

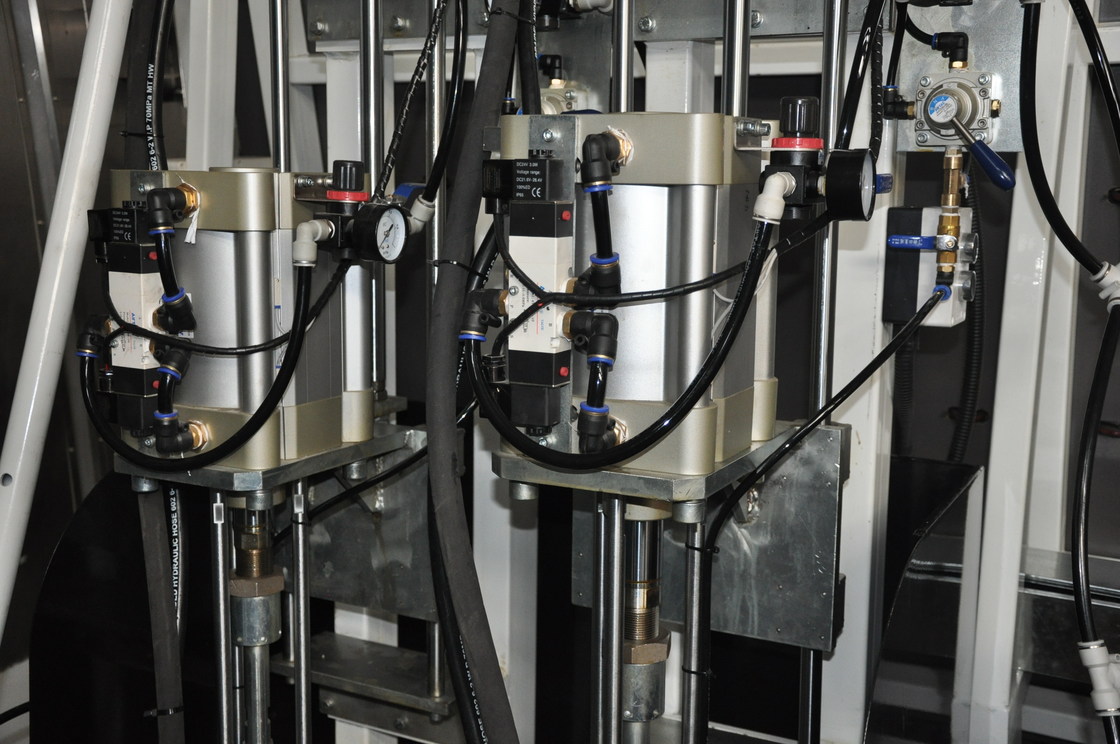

Sealing motor

From the sealing gun until the sealing mixer, they are always stopped by glues. The sealing motor is import from Korea.
Semi Automatic Insulating Glass Sealing Robot Glue Machine 2

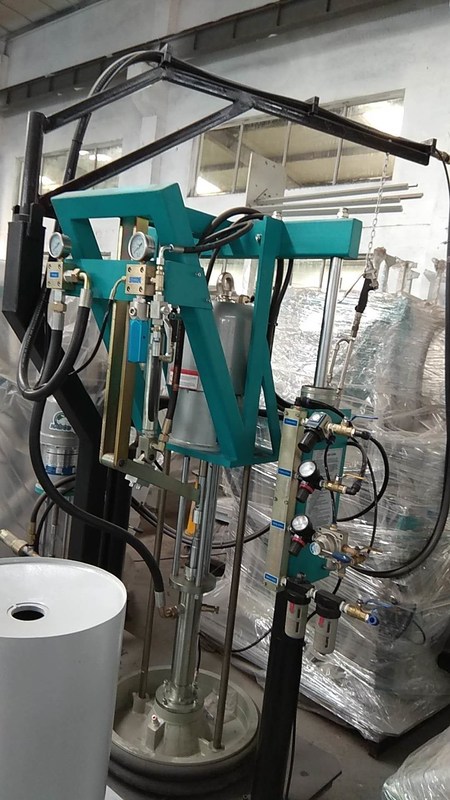

Coating glass

The sealing machine could coat double and triple glass by different glue nozzles. The machine is used to send a
Semi Automatic Insulating Glass Sealing Robot Glue Machine 3
Semi Automatic Insulating Glass Sealing Robot Glue Machine 4
Semi Automatic Insulating Glass Sealing Robot Glue Machine 5
