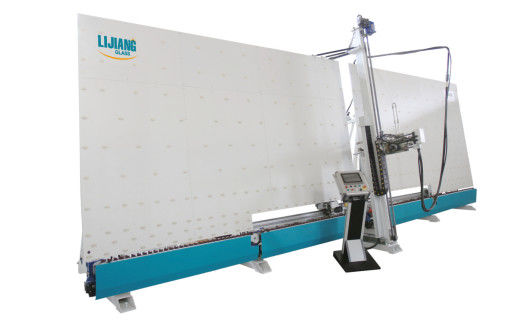

IG Line Insulating Glass Sealing Robot Machine With Double Triple And Step Glass

IG Line Insulating Glass Sealing Robot Machine With Double Triple And Step Glass
IG Line Insulating Glass Sealing Robot Machine With Double Triple And Step Glass IG Line Insulating Glass Sealing Robot Machine With Double Triple And Step Glass

Large Image :  IG Line Insulating Glass Sealing Robot Machine With Double Triple And Step Glass

Product Details:
Place of Origin: JINAN CHINA
Brand Name: Lijiang glass
Certification: CE
Model Number: LJTJ3350
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD 90000 - 120000 per set
Packaging Details: Containers
Delivery Time: 90days
Payment Terms: L/C, T/T
Supply Ability: 10 sets per month

IG Line Insulating Glass Sealing Robot Machine With Double Triple And Step Glass

Description
Name: Jumboo Size Sealing Robot Machine Max Size: 3300 Mm*5000 Mm
Min Size: 450mm*300mm Glass Type: Double/triple/step Insulating Glass
IG Thickness: 60 Mm Glue Depth: 30mm
Brand: Lijiang Glass Warranty: 1 Year
Voltage: 380 V 50 Hz 3 P (optional) Color: Green And White
High Light:

IG Line Insulating Glass Sealing Robot

,

Double Insulating Glass Sealing Robot

,

Triple Insulating Glass Sealing Robot

Jumboo Size Automatic Insulating Glass Sealing Robot Machine For IG Line  LJTJ3350



Vertical Insulating Glass Sealing Robot LJTJ3350



Main Features:

• Japan Yaskawa servo system control, full automatic and high-efficiency sealing machine

• 4 sections, can storage glass

• Adopt timing belt, smooth transfer and accurate position

• Automatically repair glass corners with scraper and roller

• Automatically measure glass size, glue depth (30mm)

• Every auto-function is with manual operation

• Can coat double glass

• Shape glass with optional edges, step glass

• Can use silicone, polysulfide and silicone structural sealants

• Glue head is in the front of the machine, which is easy for coating step glass

• Can be connected with insulating glass processing line

IG Line Insulating Glass Sealing Robot Machine With Double Triple And Step Glass 0

Technical data

Max. glass size 3300*5000mm
Min. glass size 400*300mm
Glass thickness 12-80mm
Working speed 5-40m/min
Aluminum size 6-30mm
Glue depth 5mm-30mm
Glue pressure <350kg/cm³
Air pressure 0.6 - 0.8MPa
Squeeze pressure 32MPa
Total power 20kw

Electrical parameters

NAME ORIGIN BRAND
Servo motor Japan YASKAWA
Servo driver Japan YASKAWA
CPU Japan YASKAWA
Low voltage component Germany SIEMENS
Guideway Taiwan HIWIN
Switching power supply Taiwan MW
Sensor switch Korea AUTONICS
Pneumatic component Japan SMC
Touch screen China GAOSHAN
Servo motor Japan YASKAWA
Servo driver Japan YASKAWA



Electrical parameters

NAME ORIGIN BRAND
Servo motor Taiwan TAIDA
PLC Taiwan TAIDA
Pneumatic component Taiwan AAIRTAC
Low pressure electricity Germany SIEMENS
Circuit breaker Germany SIEMENS
Sensor switch Korea AUTONICS
Approach switch Korea AUTONICS
Limit switch Taiwan TEND
Connector Germany SIEMENS
Frequency converter France SCHNEIDER
Main Button France SCHNEIDER
Intermediate relay Japan OMRON



Ⅰ.Warranty : 1 year
Wearing parts and equipment damage caused by customer's reasons are not included in the free warranty.
Ⅱ. LIJIANG has the own system for after sale service, which including three parts.
1. When LIJIANG equipment arrive customer’s factory, LIJIANG can send engineers to customer’s factory for installation, adjustment and personnel train with free commission. However, customers should bear the engineer’s round-trip air tickets and accommodation.
2. During the warranty year, if there is problem with LIJIANG equipment, LIJIANG will provide timely technology support online firstly. However, if engineer has to go to customer’s factory repair machines, the customer should bear the round-trip air tickets and accommodation. Please notes, if there is damaged spare because of LIJIANG, LIJIANG will prepare them in advance (Except wearing parts).
3. Beyond the warranty period, if LIJIANG equipment has problem, LIJIANG will provide timely technology support online firstly. However, if customers request LIJIANG engineer, the customer should bear the engineer’s round-trip air tickets and accommodation, also the customer should pay LIJIANG 150 dollars per day as service commission.
Note: Before LIJIANG engineers go to customer’s factory, the customer should send the air tickets and hotel details in advance. LIJIANG will arrange the engineer's itinerary and maintenance items ASAP.
