Automatic Warm Edge Spacer Bending Machine For Insulating Glass Processing

Automatic Warm Edge Spacer Bending Machine For Insulating Glass Processing

Warm Edge Spacer Bending Machine

Spacer Bending Machine For Insulating Glass

Insulating Glass Spacer Bender

Place of Origin:

CHINA

Brand Name:

LIJIANG GLASS

Certification:

CE

Model Number:

LJZW2020A

Contact Us
Request A Quote
Automatic Warm Edge Spacer Bending Machine For Insulating Glass Processing
Automatic Warm Edge Spacer Bending Machine For Insulating Glass Processing Automatic Warm Edge Spacer Bending Machine For Insulating Glass Processing Automatic Warm Edge Spacer Bending Machine For Insulating Glass Processing
Product Details
Voltage:
380V 50HZ 3P
Power:
2.5KW
Dimension(L*W*H):
10500mm*2200mm*2500mm
Weight:
1580 Kg
Warranty:
1 Year
Highlight:

Warm Edge Spacer Bending Machine

,

Spacer Bending Machine For Insulating Glass

,

Insulating Glass Spacer Bender

Payment & Shipping Terms
Minimum Order Quantity
one
Price
35,000 USD to 33,000 USD
Packaging Details
Wooden boxes and containers
Delivery Time
15 working days
Payment Terms
L/C, T/T
Supply Ability
12 units per month
RELATED PRODUCTS
Good price Automatic Aluminum Spacer Bending Machine online

Automatic Aluminum Spacer Bending Machine

Get Best Price
Good price Automatic Aluminum Spacer Bending Machine LJZW2020 online

Automatic Aluminum Spacer Bending Machine LJZW2020

Get Best Price
Good price 4 Racks Automatic Spacer Bending Machine LJZW2020 online Video

4 Racks Automatic Spacer Bending Machine LJZW2020

Get Best Price
Good price High Speed Insulating Glass Gasket Bending Machine For Insulating Glass Processing online

High Speed Insulating Glass Gasket Bending Machine For Insulating Glass Processing

Get Best Price
CONTACT US
Contact Now
Product Description
Automatic aluminum bar bending machine LJZW2020A
Automatic Warm Edge Spacer Bending Machine For Insulating Glass Processing 0
Product Description
Automatic Warm Edge Spacer Bending Machine For Insulating Glass Processing 1
Automatic Warm Edge Spacer Bending Machine For Insulating Glass Processing 2
Automatic Warm Edge Spacer Bending Machine For Insulating Glass Processing 3

Automatic warm edge spacer bending machine for soft spacer bars

1•Siemens PLC control system with fast working speed •4 groups of storages (2 or 12 groups of storages can be optional) •Automatically cut and feed aluminum spacers •Automatically avoid the pins while bending and cutting •Bend spacer frames continuously •Aluminum spacers are available in sizes of 6A-27A •Different bending tools for different sizes of spacers •Pause and Reset device for handling equipment failures •Bending warm spacers, aluminum spacer and stainless steel spacers are optional, it is the different bending design •Connect to ERP system (Optional) •USB input function, read the excel format file directly
New bending machine can equipped with reading code function (Optional)

Details Images
Automatic Warm Edge Spacer Bending Machine For Insulating Glass Processing 4
Automatic Warm Edge Spacer Bending Machine For Insulating Glass Processing 5
Automatic Warm Edge Spacer Bending Machine For Insulating Glass Processing 6

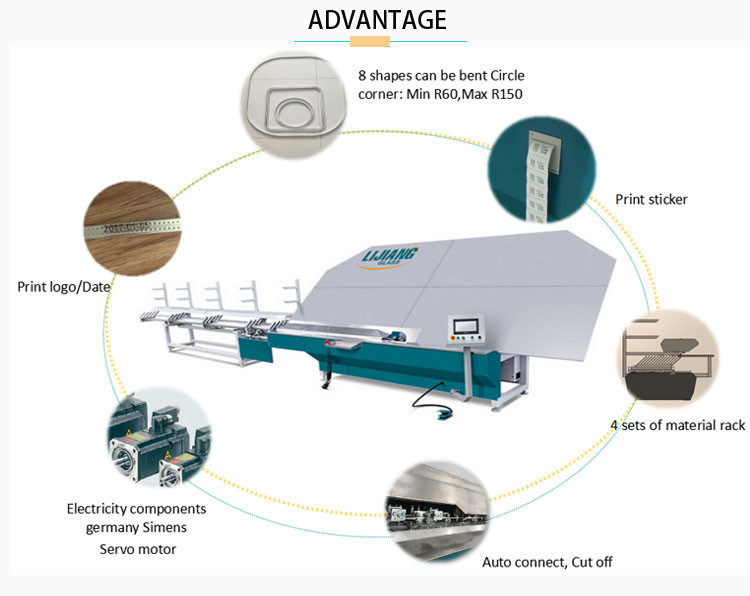

Details introduce:
•Spacer printing code function (Optional)
•2 or 12 groups of storages (Optional)
•Printing label sticker function (Optional)
•Bending stainless steel ( Optional)
•Bending aluminum spacer (Optional)
•Using circle wheel device to bend circle frame or frame with circle corners. Min R60, Max R150, spacer sizes: 6A – 16A (Optional)

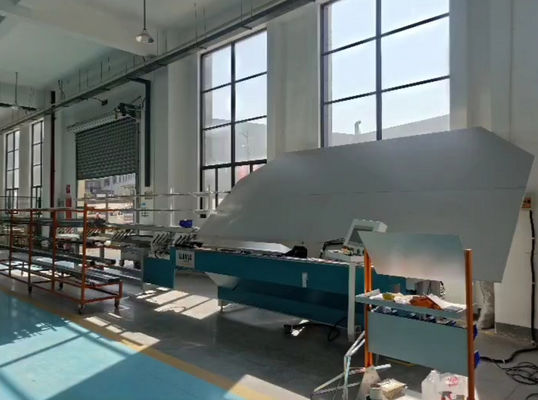

Customer Photos
Automatic Warm Edge Spacer Bending Machine For Insulating Glass Processing 7
Automatic Warm Edge Spacer Bending Machine For Insulating Glass Processing 8
Automatic Warm Edge Spacer Bending Machine For Insulating Glass Processing 9
Automatic Warm Edge Spacer Bending Machine For Insulating Glass Processing 10
Specification
Max. bending size
2000mm*2000mm
Min. bending size
250mm*200mm
Stainless steel spacer width
5.5-27mm
Dimensional error
±0.5mm
Angle error
±1º
Processing speed
17s
Air supply
≥0.65MPa
Total power
AC220/380V 50Hz 2.5KW
Dimension
10500mm*2200mm*2600mm



Automatic Warm Edge Spacer Bending Machine For Insulating Glass Processing 11Automatic Warm Edge Spacer Bending Machine For Insulating Glass Processing 12Automatic Warm Edge Spacer Bending Machine For Insulating Glass Processing 13Automatic Warm Edge Spacer Bending Machine For Insulating Glass Processing 14
