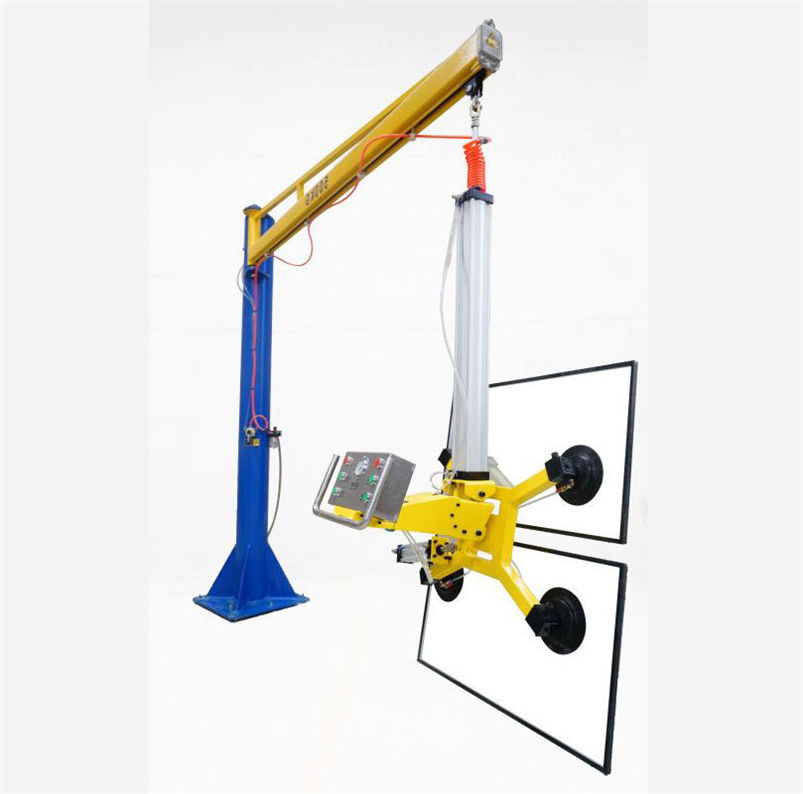

Electric Suction Cup Vacuum Hoist Lifting Systems Intelligent Control Glass Curtain Wall

●Mechanical part:
(1) The complete size of the foremost beam of the suction hoist is designed to be 2000mm, and the higher phase of the center section is welded and sealed with a plate, and the center section is used as a vacuum accumulator. The air tightness check is carried out after welding to make sure no leakage. When the gear is unexpectedly powered off, it is nevertheless assured to be capable to reliably adsorb the plates for at least 20 minutes, and will now not purpose protection accidents such as gear harm (the European CE fashionable is to keep 10 minutes)
(2) This gear is geared up with 6 suction cups with a diameter of 360mm for distinct sizes of glass. The role of every suction cup on the beam is adjustable to facilitate the adsorption of glass of one of a kind sizes.
●Electrical part:
(1) A vacuum strain change and a buzzer alarm unit are mounted on the vacuum hoist. When the vacuum gadget stress does now not attain the set pressure, or when a energy failure occurs, the alarm unit will manage the pink warning mild to mild up and the buzzer to sound. , Prompt the operator to deal with it in time.
●Vacuum part:
(1) The suction hoist adopts a German oil-free rotary vane vacuum pump, with a pumping potential of 8m3/h, a massive vacuum diploma of over 85%, strength saving, compact and lightweight, no maintenance, etc.;
(2) The total set of tools is outfitted with 6 vacuum suction cups, multi-point adsorption to make certain that the plate can keep a excessive stage in the course of the dealing with system besides tilting;
(3) The suction cup fabric is nitrile rubber, with a diameter of 360mm, oil (benzene), durable, acid and alkali resistance, and can efficaciously adsorb with FRP to produce a proper single suction cup level. Theoretical giant suction pressure = fine place (physical product * coefficient) * calculated strain (0.6bar); (0.18*0.18*3.14)*0.6*10000=610.416, which is about 610.4Kg. According to the four instances protection factor, the proper allowable suction electricity of the suction cup is 610.4/4=152.6Kg. The complete suction electricity of 6 suction cups is 600kg. Note: The vacuum suction pressure referred to in the above desk is calculated beneath 60% vacuum degree. Under ordinary working conditions, the gadget vacuum diploma can attain extra than 85%;
(4) The vacuum stress sensor is made of Japanese Panasonic brand, and the alarm stress stage is set to 60% vacuum;
(5) Each suction cup is outfitted with a guide ball valve to manipulate the opening and closing, which ensures that the equal tools can be utilized to a range of specs of plates;
(6) The top and decrease components of the sucker rod are outfitted with a spring. When the plate is no longer flat, the spring acts as a buffer to make the sucker evenly stressed, so as to make certain the protection and reliability of the suction cup.
