Product Details:
|
| Condition: | New | After-sales Service Provided: | Provide |
|---|---|---|---|
| Warranty: | 1 Year | Dimension(l*w*h): | 23500H*3500W*3700H Mm |
| Power(w): | 40KW | ||
| High Light: | Double Glazing Glass Production Line,Vertical Glazing Glass Production Line,Vertical Insulating Glass Production Line |
||

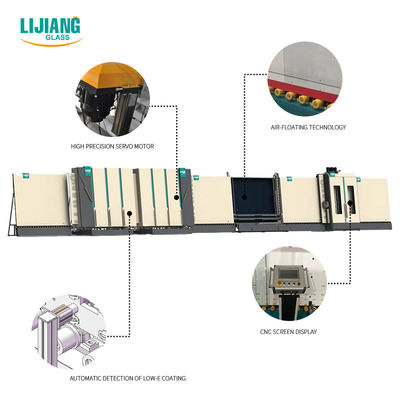

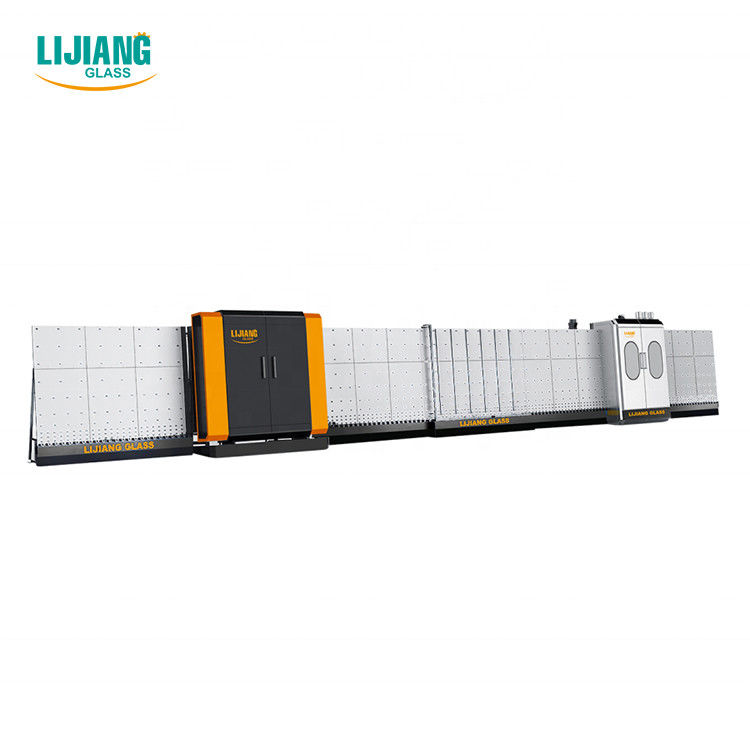

Vertical Insulating Glass Production Line LJBZ2535G
Main Features:

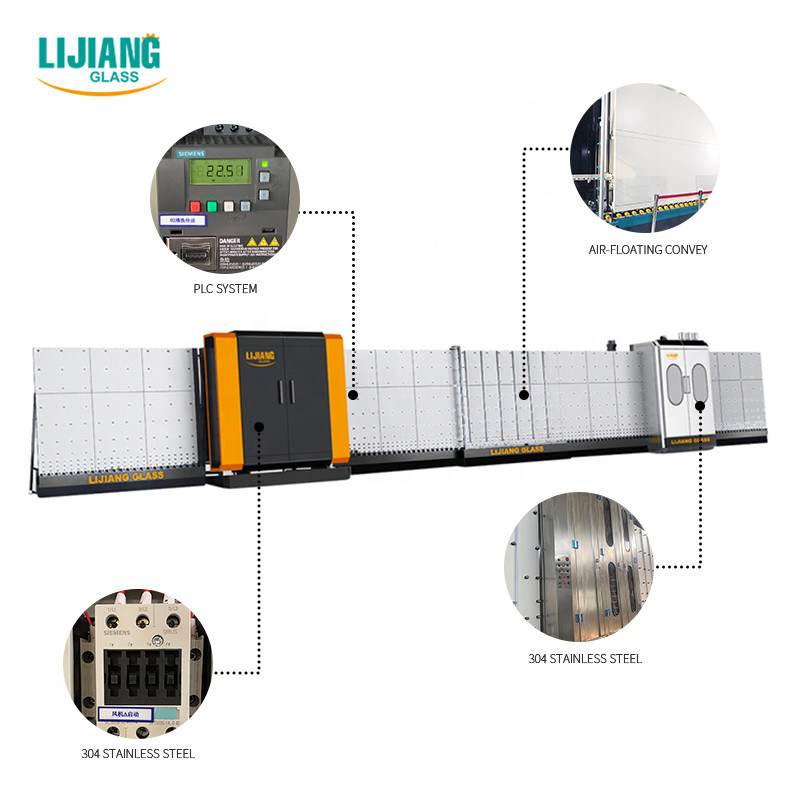

• Adopt SIEMENS control system, keep stable performance
• PLC control system, touch screen interface
• Automatically adjust the depth of glue with digital display
• Using servo to control system, modular function, superposition function
• Applicable to produce stepped IG, triple IG and shaped IG
• Two pieces of IGU can be made and filled with argon gas in one time (Optional)
• Min & Max glass sizes can be optional
• Using 6 pieces of soft brushes

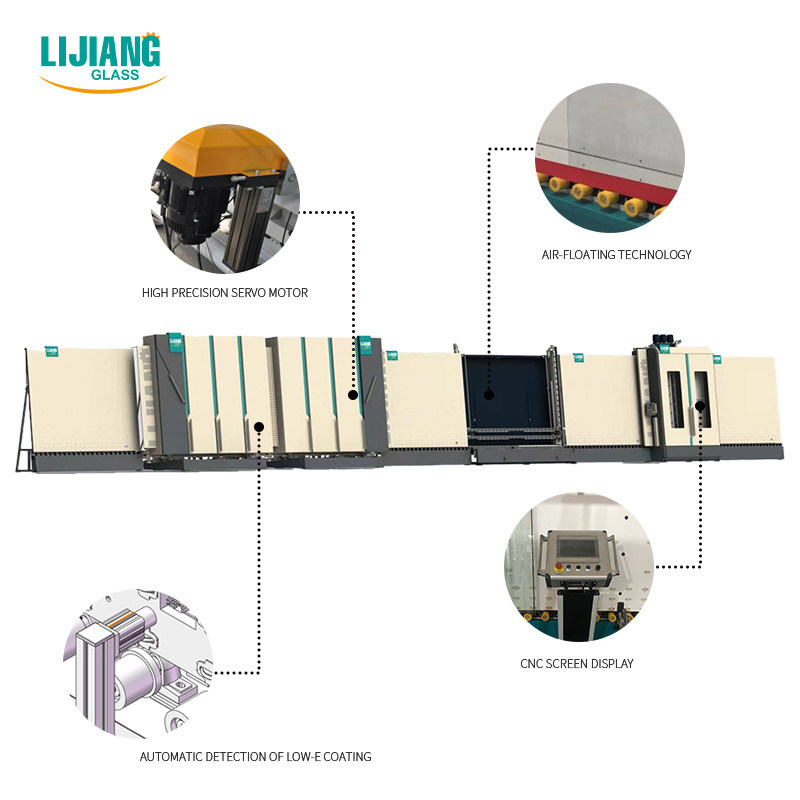

• Wash online and offline low-e glass, automatically recognizes Low-e film
• Washing part adopts the design of upper and lower layered structure
• Adopt variable frequency fan, energy efficient, good cleaning effect
• Using intelligent intermittent energy-saving working methods
• Hierarchical type washing system
• Water tank automatic temperature control, water replenishing system
• European silencer system
• 304 stainless steel materials
• Ultra-long insulating glass can be compressed with second times
• The machine adopts servo torque to pressing glass
• The pressing plate with adjustable screws to guarantee long-lasting high-precision tablet
• Equipped with a precisely adjustable front platen mechanism
• The system can diagnose fault information
| Item. | Spec. |
| Max. glass size | 2500mm*3500mm |
| Min. glass size | 280mm*400mm |
| Glass thickness | 3-15mm / 19mm |
| Insulating glass thickness | 50mm / 60mm |
| Glass washing speed | 2-10m/min |
| Glass conveyor speed | 45m/min |
| Washing brushes | 3 pairs |
| Water supply | Water consumption:0.5t/h conductivity:40μs/cm |
| Air supply | Flow: 0.8m/min |
| Air pressure | ≥0.8MPa |
| Total power | 3P 380V 50HZ 40KW |
| Dimension | 23500*3500*3700mm |
| Weight | 6500kg |
