Place of Origin:
China
Brand Name:
LIijiang Glass
Certification:
CE
Model Number:
LJZW 2020A

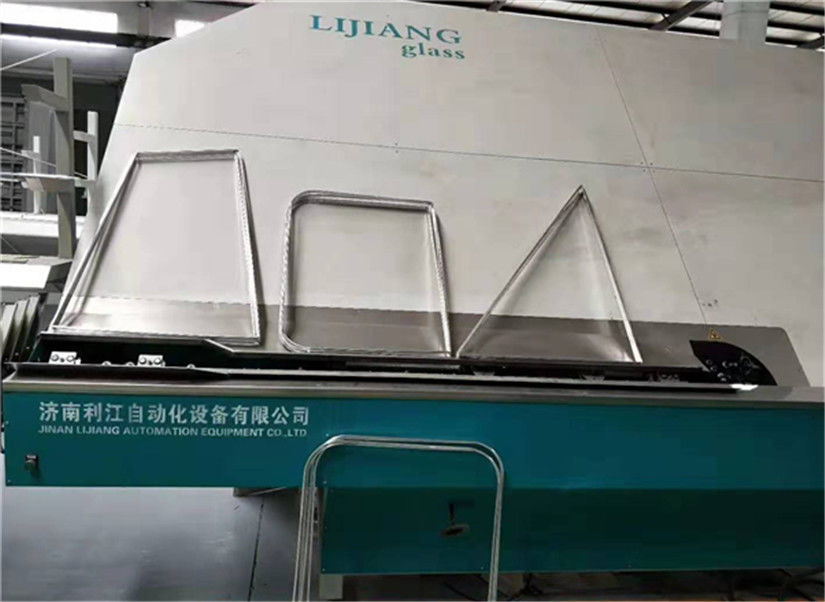

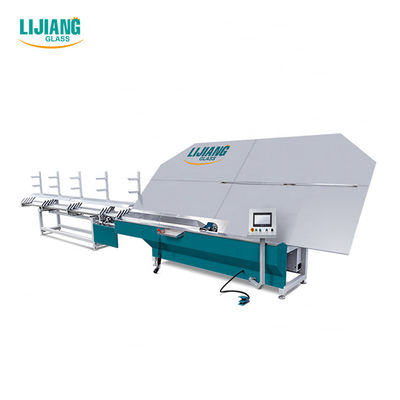

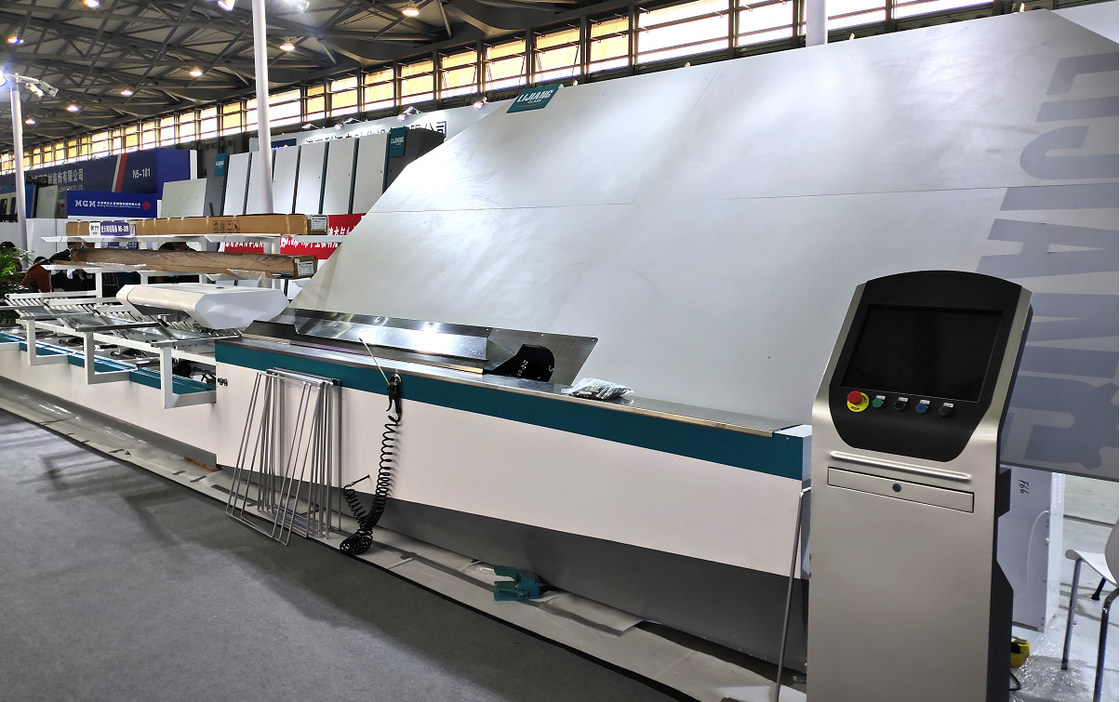

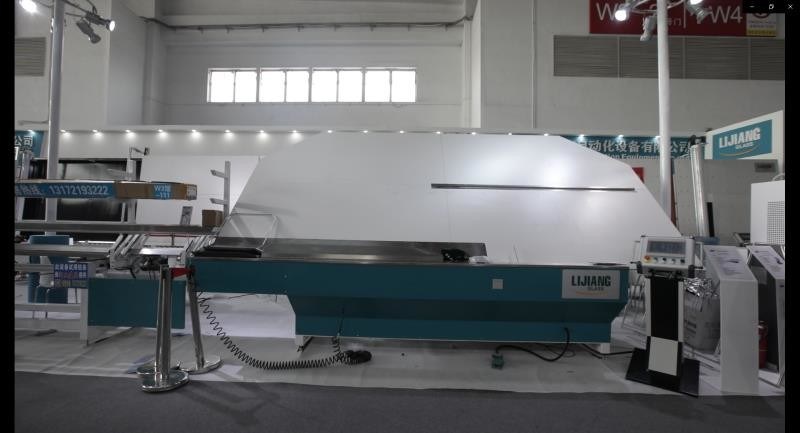

Automatic Warm Spacer Bending Machine , can fold aluminum strip.Tylenol, Arup spacer, stainless steel (optional), etc
• Automatically cut and feed aluminum spacers
• Auxiliary function of adjustment for bending large aluminum frame

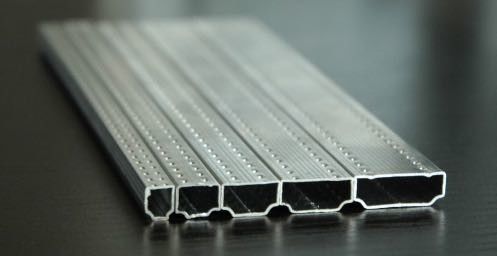

• Aluminum spacers are available in different sizes and sizes
• Bend shaped spacer frames continuously
• Separated guard board outside of bender
• Automatically avoid the connection while bending and cutting
• Pause and Reset device for handling equipment failures
• Can bend aluminum spacer, Technoform, Alupro, Thermix, warm spacer (Swisspacer)
Specification
| Max. bending size | 2000mm*2000mm (2500mm*2500mm) |
| Min. bending size | 250mm*200mm |
| Aluminum spacer width | 5.5-27mm |
| Dimensional error | ±0.5mm |
| Angle error | ±1º |
| Processing speed | ≤26s |
| Air supply | ≥0.65MPa |
| Total power | AC220/380V 50Hz 2.5KW |
| Dimension | 10500mm*2200mm*2600mm |
* Germany Siemens PLC control system,touch screen interface
* Japan FUJI CNC servo control system
* Four spacer size storage units
* Using servo system to control feeding mechanism
* USB input function, read the excel format file directly etc (Optional)
* Stainless steel (Optional)
* Automatic drill gas filling hole (Optional)
* Connect to ERP system (Optional)
* Spacer printing code function (Optional)
* Printing label sticker function (Optional)
