Vertical Insulting Glass Sealing Machine 800015002700Mm / 800015003500Mm

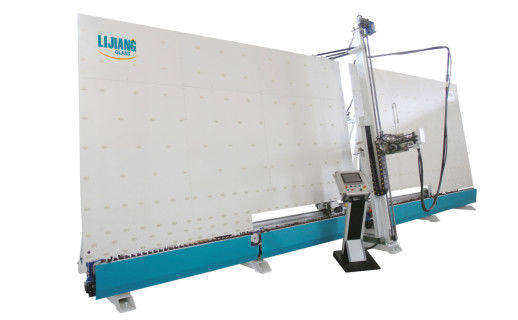

Large Image : Vertical Insulting Glass Sealing Machine 8000*1500*2700Mm / 8000*1500*3500Mm

Product Details:

Place of Origin:	Jinan City, Shandong Province, China
Brand Name:	Jinan LIJIANG Glass
Certification:	CE & ISO9000
Model Number:	LJTJ2030

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Price:	Negotiable Price
Packaging Details:	Wooden Cases Package and Container Transfer
Delivery Time:	15 Working Days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram and so on.
Supply Ability:	15 sets per month

Contact Now

Vertical Insulting Glass Sealing Machine 800015002700Mm / 800015003500Mm

Description

Product Name:	Vertical Insulting Glass Sealing Robot Machine	Max.glass Size:	20002500 Mm/25003500 Mm/2700*4000 Mm
Min.glass Size:	300*300 Mm	Glass Thickness:	12-56 Mm
Working Speed:	5-40 M/min	Air Pressure:	0.5-0.7 MPa
Squeeze Pressure:	32 MPa	Overall Dimension:	800015002700 Mm / 800015003500 Mm
Highlight:	Vertical Insulting Glass Sealing Machine , 800015002700Mm Insulting Glass Sealing Machine , 800015003500Mm Insulting Glass Sealing Machine

8000*1500*2700mm/8000*1500*3500mm Vertical Insulting Glass Sealing Robot Machine for Hollow Glass Processing

Product Description

Automatic Vertical Insulating Glass Sealing Robot

Automatic Insulating Glass Sealant Sealing Machine can apply the mixed sealant evenly to the outer channel of the insulating glass through the servo mechanism to help the sealing and bonding performance of the insulating glass. Automatic Vertical Insulating Glass Sealing Robot can apply the mixed sealant evenly to the outer channel of the insulating glass through the servo mechanism to help the sealing and bonding performance of the insulating glass.

Advantages & Features

Benefits & Advantages

* Min & Max glass sizes can be optional

* Adopt 8 servo motors

* Adopt Japan ANCHUAN servo control systemwith stable performance

* Automaticallymeasure glass size, glue depth and glue speed with linear adjustment

* Adopt timingbelt to keep smooth convey with accurate position

* Sparesare produced with high standardization and high precision, ensure the machine can be used with long-term working

* The glass cornersare full without air bubbles, smooth surface.

* Full automatic and high-efficiencymachine

* New scraper design, especially for making train IG with very even sides and corners, without any bubbles.

* Automatically repair glass corners with beautiful surface

* Smooth convey without scratchand pollution

* Single-function partsare equipped with manual functions, easy adjustment

* Shaped IG units (Optional)

* Stepped IG units with four sides (Optional)

* Double and Triple IG units

The Smooth Glue Surface

After applying glue, It will ensure that the corners of the glass are full, without bubbles and other impurities, and the glue surface is so smooth.

The High-precision Servo Control System

It adopts Japanese Yaskawa servo control system with clear wiring layout to ensure stable overall performance of the equipment.

The Glass Coating

Automatically measure glass size, glue depth and glue speed through linear adjustment to ensure the stability of insulating glass coating quality.

Glue Pump A and Glue Pump B

Equipped with a single A component and a single B component, mixed and glued. When applying glue, glue pump A and glue pump B are automatically mixed to realize automatic proportioning.

Specification

Item.	Spec.
Max glass size	2500*4000mm
Min glass size	280*400mm
Glass thickness	12 - 50mm
Glue depth	≤22mm
Glue width	26.5mm
Working speed	5 - 40m/min
Air pressure	0.6MPa
Squeeze pressure	32MPa
Voltage Power	380V 50Hz 12KW

NAME	ORIGIN	BRAND
Servo motor	Taiwan	TAIDA
PLC	Taiwan	TAIDA
Pneumatic component	Taiwan	AAIRTAC
Low pressure electricity	Germany	SIEMENS
Circuit breaker	Germany	SIEMENS
Sensor switch	Korea	AUTONICS
Approach switch	Korea	AUTONICS
Limit switch	Taiwan	TEND
Connector	Germany	SIEMENS
Frequency converter	France	SCHNEIDER
Main Button	France	SCHNEIDER
Intermediate relay	Japan	OMRON
