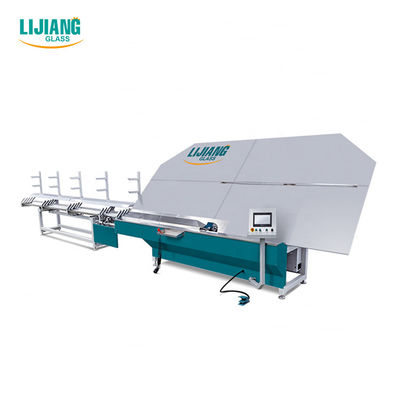

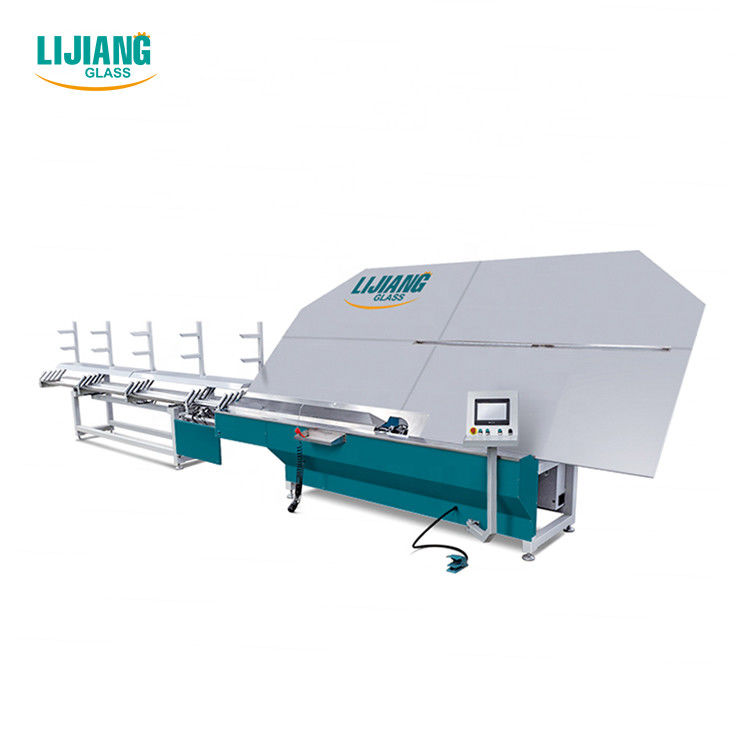

Fully Automatic aluminum bar bending machine Distance Measurement Single Screen Input

Large Image : Fully Automatic aluminum bar bending machine Distance Measurement Single Screen Input

Product Details:

Place of Origin:	CHINA
Brand Name:	LIJIANG GLASS
Certification:	CE
Model Number:	LJZW2020A

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	35,000 USD per unit
Packaging Details:	container
Delivery Time:	Within 9 working days
Payment Terms:	L/C, T/T
Supply Ability:	15 Set/Sets per Month

Contact Now

Fully Automatic aluminum bar bending machine Distance Measurement Single Screen Input

Description

Voltage:

220v

Power:

2.5kw

Weight:

500kg

Dimension(L*W*H):

10500mm*2200mm*2600mm

Highlight:

Fully Automatic Aluminum Bar Bending Machine

Distance Measurement Aluminum Bar Bending Machine

Single Screen Aluminum Bar Bending Machine

nsulating glassswisspacer spacer bending machine

LIJIANG production line adopts the latest technology, its main purpose is to create high-end quality, to provide customers with the latest production technology, improve production efficiency, save production costs and produce maximum benefits. Now LIJIANG mainly has two kinds of IG line with different two different technologies. One (Picture 1) uses transfer wheels to transport glass, and the other (Picture 2) is a new technology that uses air-floating technology to transport glass. This new technology is to prevent the glass from being contaminated by wheels and leaving traces, so new technology is used to improve the IG production’s high quality.

1.Application

insulating glass, which replaces the traditional fabrication technology. This equipment can make a variety of convex polygonal aluminum frames by one aluminum strip in one time, thus strengthening the strength of the aluminum frame, making the sealing effect of the insulating glass more better.

2. Equipment details

Adopt Siemens PLC control systemThere are 4 Siemens servo
Adopt 12 sets of racks which could storage more different sizes of spacers. Use Siemens servo to change different racks.

Automatically cut and feed aluminum spacers Bend shaped spacer frames continuously  Automatically avoid the connecting corner while bending and cutting


3. Heavy duty connectors is convenience and safety for installation and debugging

Max.bending size	2000mm*2000mm
Min.bending size	250mm*200mm
Aluminum spacer width	6A-27A
Dimension error	±0.5mm
Angle error	±1
Air supply	≥0.65Mpa
Total power	AC 220V/380V 50HZ 2.5KW
Dimension	10500mm2200mm2600mm
